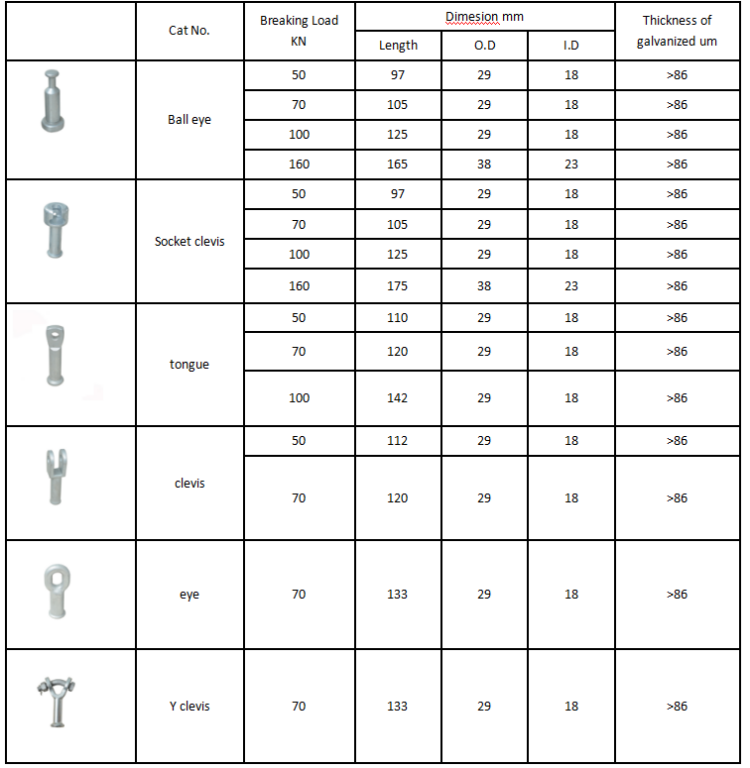

1.Characteristics of All Purposes High Voltage Insulator fitting

1).  Main shape
Ball end fittings , socket end fittings , pig , hook end fitting , clevis end fitting , tongue end fittings ,

thimble end fittings , hook eye-link end fittings etc.



2). Metal End Fittings are assembled to both the core rod for purpose of transmitting mechanical loads

to the core, which are used for composite suspension,pin,post,cross arm insulators etc.



3). Metal end fittings material and standard
Metal end fittings are ductile iron in accordance with ASTM A536.all the surface of the end fittings to be

exposed to environmental conditions are galvanized in accordance with ASTM A153.

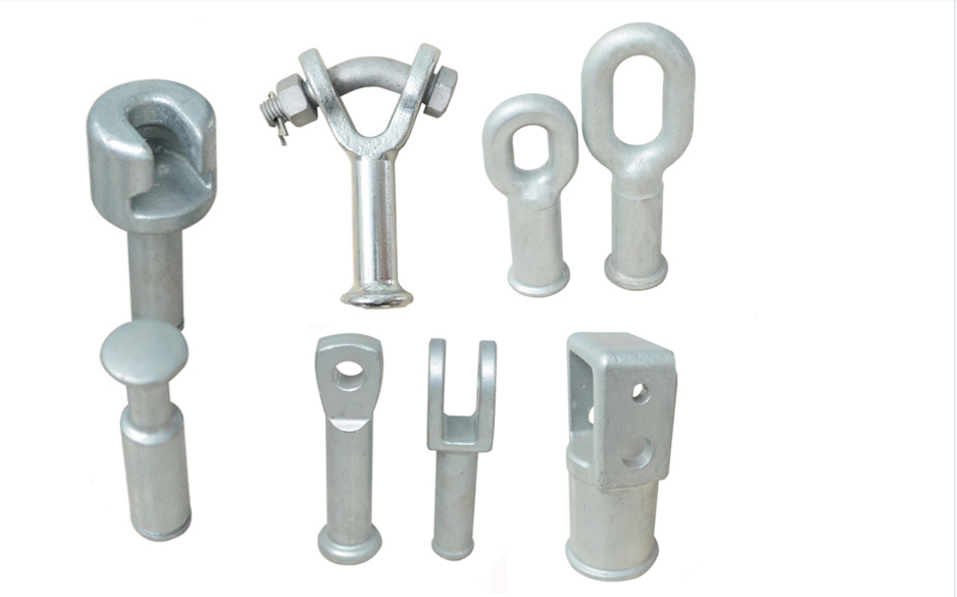

2.Photos of All Purposes High Voltage Insulator fitting :



3.Material:

1. Silicon rubber, composite polymer

2. Glass-fiber reinforced epoxy resin rod

3. Hot-dip galvanized steel
