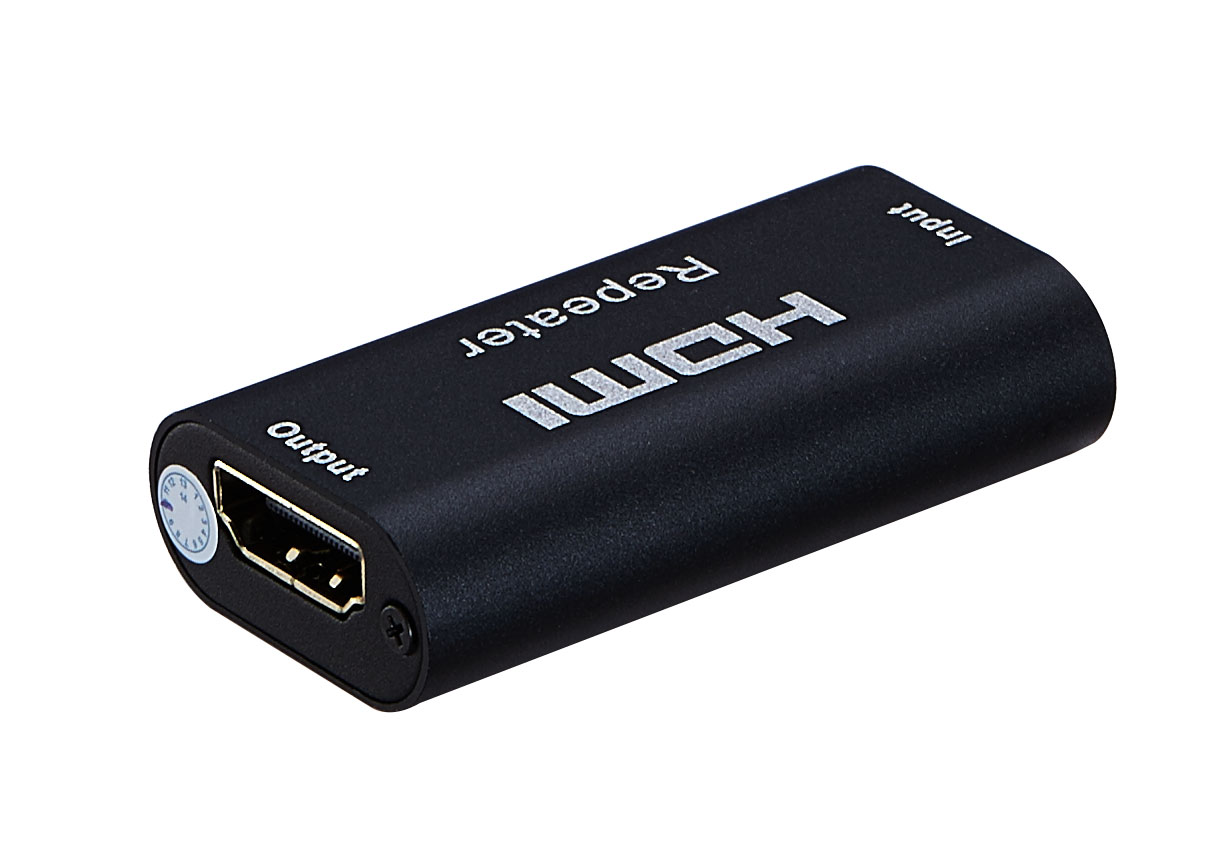

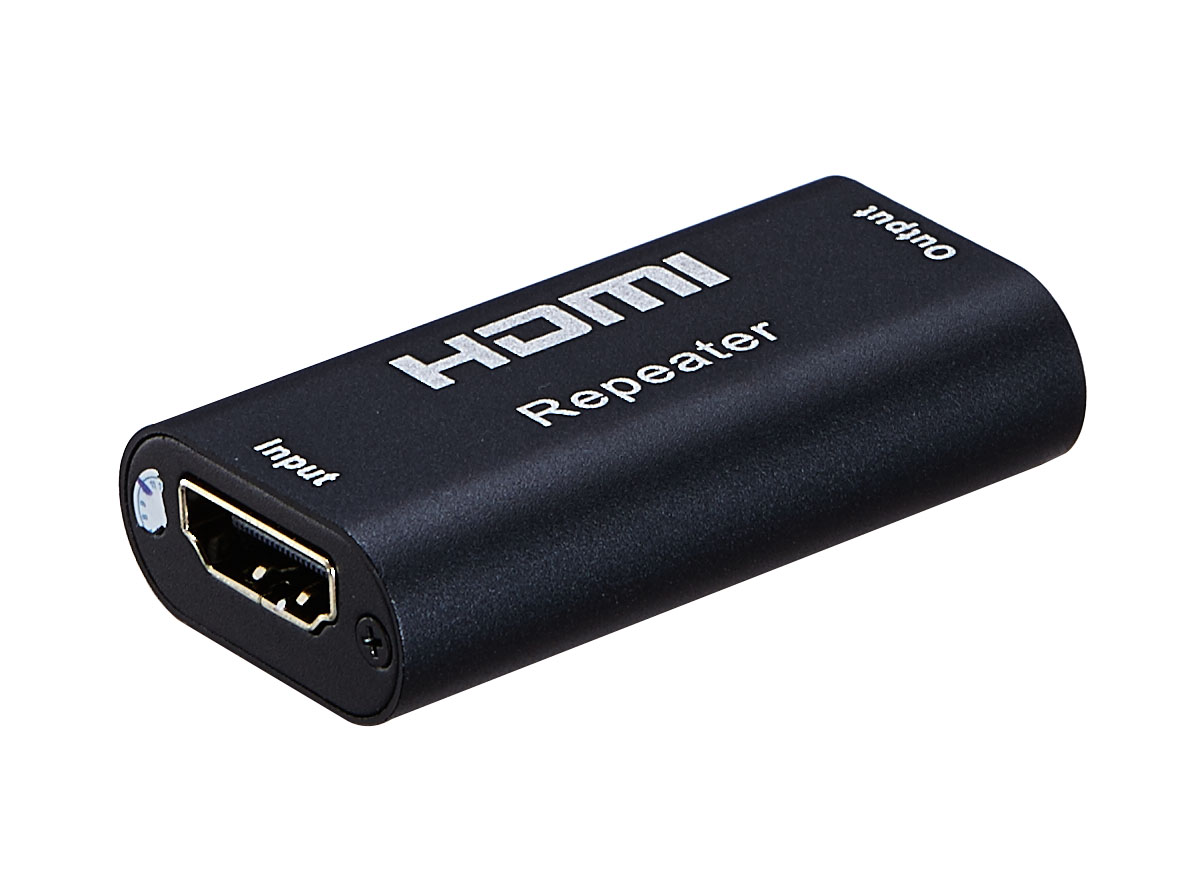

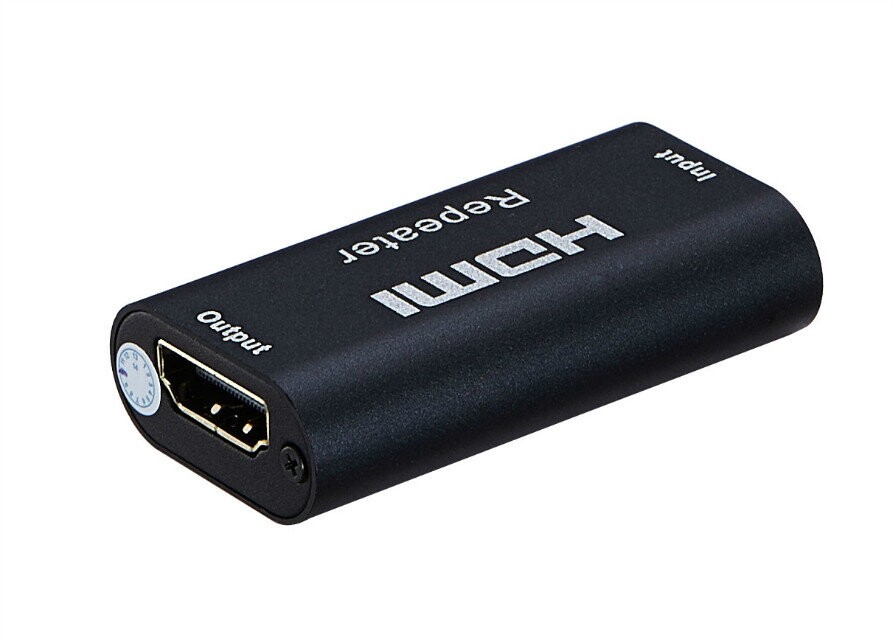

HDMI Repeaters



Operation Manual





Connection and Installation

SHAPE\* MERGEFORMAT

Features

It Regenerates the incoming HDMI signal by decoding and re-encoding it to a new Standard HDMI signal so it can extend the transimission range without degradation.

Extends 1080p up to 40 meter transmission distance(lower resolution signal can be Transimitted longer).







No power,Plug and Play,easy to install.



Specifications:

HDMI Is compliant with HDMI 1.3

HDMI HDCP is compliant with HDCP 1.1

Operation Frequency:up to 165MHz

HDMI Data rate:1.65G bps(Single link)

Input/output Resolution:

HD:480i@60Hz, 576i@50Hz, 480p@60Hz, 576p@50Hz, 720p@60Hz, 720p@50Hz, 1080i@60Hz, 1080i@50Hz, 1080p@60Hz, 1080p@50Hz, 1080p@30Hz, 1080p@25Hz, 1080p@24Hz

Support 3D

Cable Distance Support:over 40m with twisted-pair

Dimensions(W*H*D):28X13X51mm





Note:Different Cable quality may affect-the maximum resolution and transmission distance.
