| Rated Voltage: | 11kv |
|---|---|
| Application: | Low Voltage |
| Material: | Porcelain |
| Type: | Insulator |
| Model Number: | IEC Insulator |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

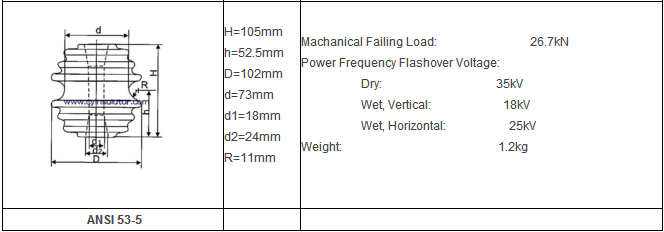

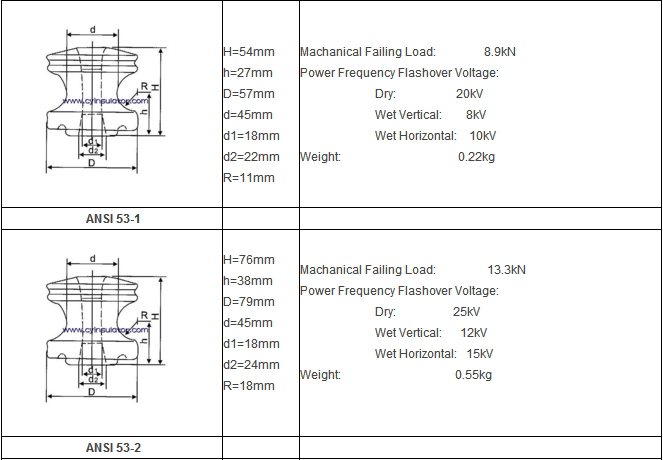

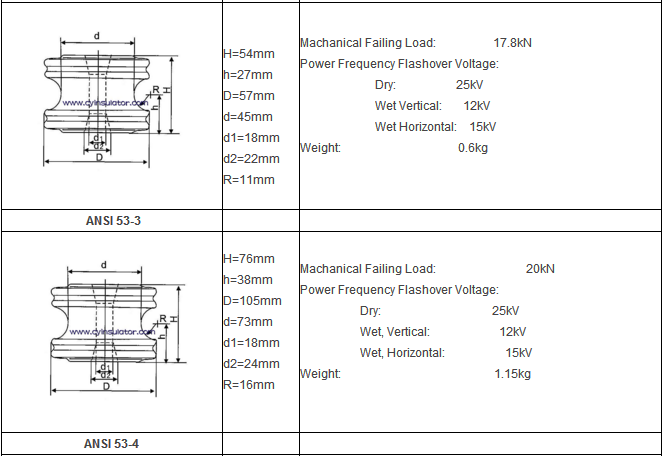

Normal Type Disc Suspension Porcelain Insulator - IEC SeriesCeramic Spool Insulator Low Voltage Spool Porcelain Insulator ANSI 53-1, 53-2, 53-3, 53-4, 53-5
Porcelain spool insulator is an insulator of generally cylindrical form having an axial mounting hole and circumferential groove or grooves for the attachment of a conductor. Porcelain spool insulator usually used America consisting of one or more insulating parts to which connecting devices (metal fittings) are often permanently attached.
Porcelain spool insulator or spool type insulator usually used similarly to shackle insulator.
