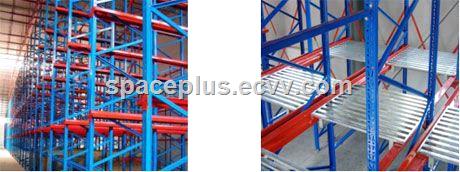

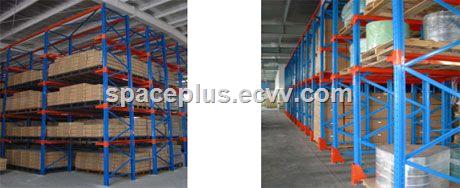

The Drive-in Pallet Racking, also called Drive-through Pallet Racking, it is designed for the storage of homogeneous products. This system makes better use of the available surface and height space than any other .The pallet mode is suitable for storage of goods with few varieties but in large quantities. It is widely applied to refrigeration house, food and tobacco industry.

Product Feature:

1. Drive-in racking needs less passages, the space utilization can be improved by 30% to 70-80%.

2. Suitable for storing goods with large quantities but few varieties, especially for standard goods.

3. Widely used in high-cost warehouse, like cold warehouse, food & beverage warehouse etc. The cost can be mended by the improved space utilization.



Technical Description:

1. Drive-in racking components: frame, top & back beam, top & back bracing, row spacer, bracket and support beam.

2. Forklift needs to drive through the aisles to pick up an load goods, FIFO and FILO both are available.

3. To improve the storage efficiency, the single side depth should be within 8 pallets, and double side depth should be within 15 pallets.

4. Load capacity for per pallet should be less than 1500kg, height is better within 10m.

5. First level pallets can be placed on the floor to save cost.
