| Tensile Strength: | 5KN |
|---|---|
| Rated Voltage: | 110kv |
| Application: | High Voltage |
| Material: | Composite Polymer |
| Type: | Insulator |
| Model Number: | FS-110/5 |
| Brand Name: | Junai |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Product Description
|
Type |
Rated voltage |
Rated bending |
Center distance of line groove |
Arcing distance |
Creepage distance |
Full wave lighting impulse |
Wet power frequency |
Line groove size |
mounting size |
Stable hole diameter |
Center distance of |
|
FS-10/2.5 |
10 |
2.5 |
400 |
315 |
460 |
165 |
65 |
11 |
18 17 |
6.5 |
40 |
|
FS-10/5 |
10 |
5 |
400 |
300 |
610 |
165 |
65 |
14 |
22 58 |
11 |
40 |
|
FS-35/5 |
35 |
5 |
620 |
520 |
1080 |
290 |
130 |
14 |
22 58 |
11 |
40 |
|
FS-110/5 |
110 |
5 |
1150 |
1030 |
3200 |
580 |
330 |
14 |
22 66 |
11 |
40 |
|
FS-220/5 |
220 |
5 |
2215 |
2050 |
6300 |
1000 |
395 |
14 |
22 82 |
11 |
35 |

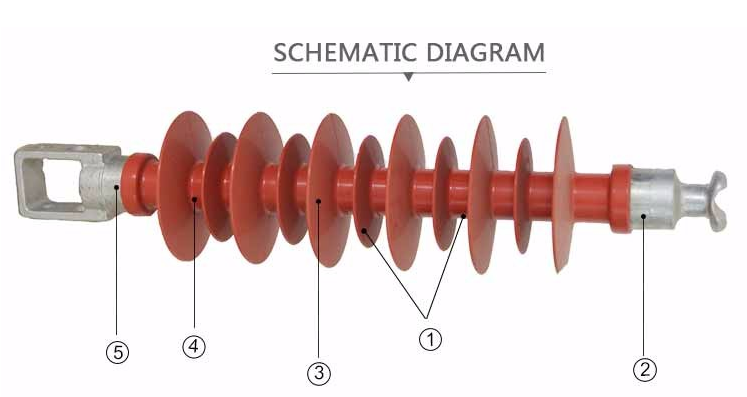

1. Shed connected with core by integral foring
2. The thinkness of housing > 3mm, unifirm to IEC Standard
3. Acid resistant, hight temperature resistant of epoxy fiberglass core
4. Metal end fittings, core and sheds connected by new crimping process
5. Hot galvanization and technology of rareearth aluminum coating to avoid coating shedding prolonging
the service life
