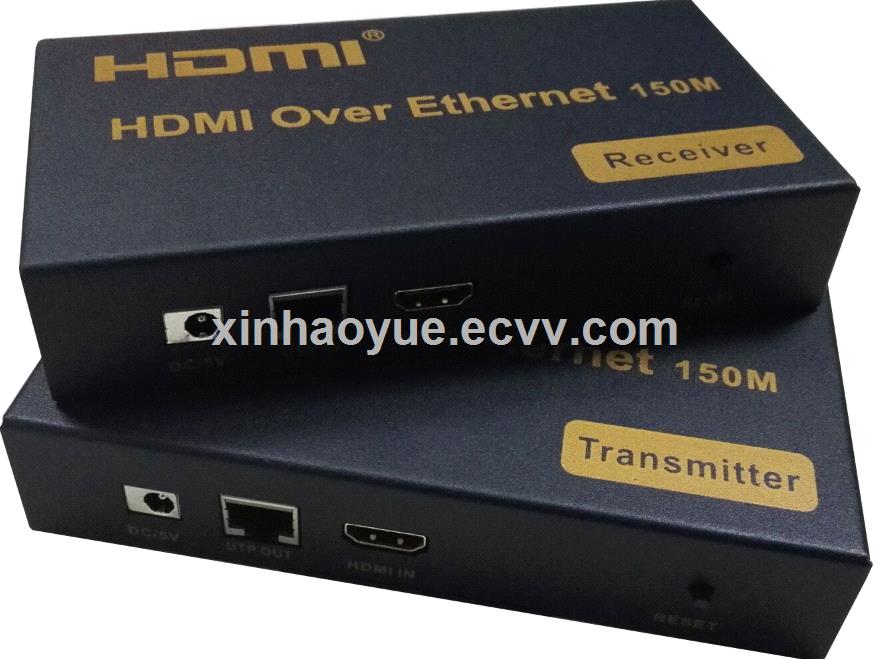

HDMI KVM over IP Extender 150m



1.Introduction

Is Based on TCP/IP standard. It transmits your HD display with the high Resolutions up to 150 meters away from your HDMI or DVI-D source by using one CAT5e/6 cable.

2. Specifications

?   Support HDMI 1.3/HDCP1.1&1.2

?   Support point-to-point mode, one point-to-many mode and cascade Connection mode.

?   802.3 Ethernet standard.

?   Support IR remote control, you can control STB or Blue-Ray DVD at receiving site by remote Control.

?   the design of pure hardware, plug and play, no need for additional Software.

?   Support IR remote control 38KHz,NEC.

?   Support Remote monitoring by mouse and keyboard.



HDTV Resolutions	480p, 720p,1080p
Audio	Sample rate:32kHz,44.1kHz,48kHz
IR remote control	38kHz;NEC
HDMI	HDMI 1.3
HDCP	HDCP 1.2
Power adapter	DC:5V/2A
Power consumption	HDMI Sender:3W    HDMI Receiver:3W
Size(L-W-H)	150*79*30mm
Weight	340g x 2
Operating Temperature/Humidity	0℃-70℃/10%-80%RH(no condensation)
Storage Temperature/Humidity	-10℃-80℃/5%-90%RH(no condensation)



3. Physical interface diagram

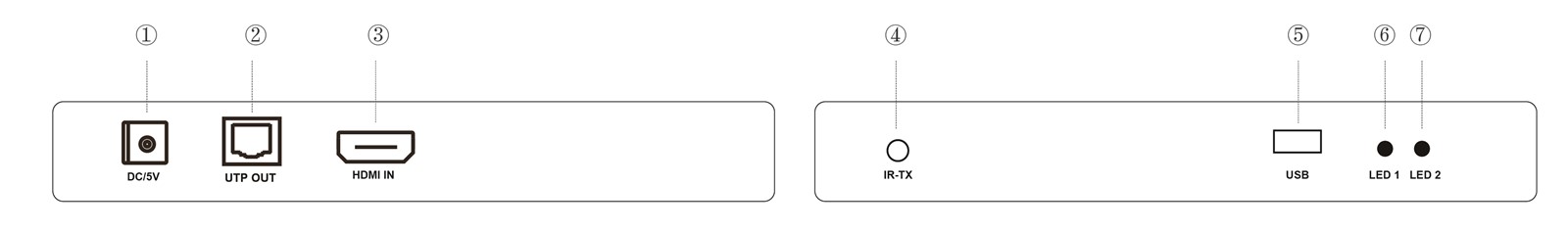

1. Transmitter



1.      DC/5V Power Input

2.      UTP Output port

3.      HDMI Input port

4.      IR TX

5.      USB Port

6.      Power Indicator

7.      Signal Indicator

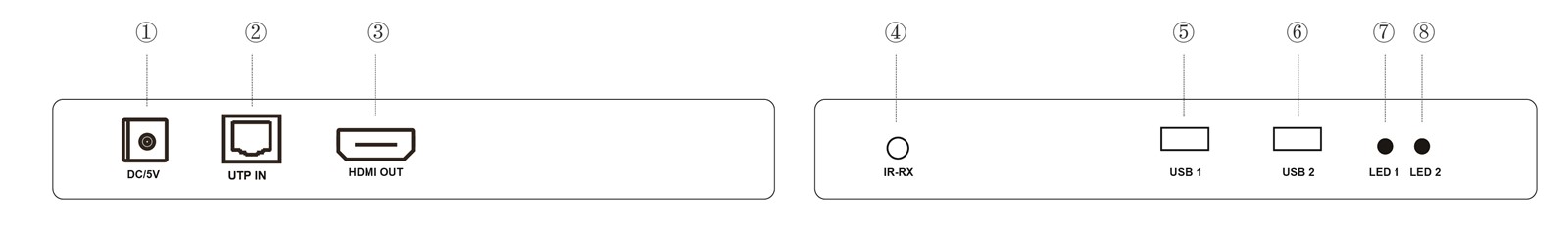

2. Receiver

1. DC/5V Power input

2. UTP Input port

3. HDMI Output port

4. IR RX

5. USB for KVM ( keyboard and mouse)

6. USB for KVM ( keyboard and mouse)

7. Power Indicator

8. Signal Indicator

4.Connection and operation

1) Connect the HDMI source (such as DVD, PS3, STB ) to the HDMI in of Sender by HDMI cable.

2) Connect the HDMI out of Receiver to HDTV display by HDMI cable.

3) Use one Cat5e/6 cable Instead of HDMI cable to connect the sender and the receiver, distance can up to 120m.

4) to the sender,, and also aim the sender IR OUR port to the receiver IR in port if you need the IR control function.

5) Connect two pieces of 5V Power supply to the sender and receiver, power supply for the equipment and  the LED indicator light on. When status Lamp on and flicker, equipment starts normal.



5. PACKAGE CONTENTS

Before Attempting to use this unit, please check the packaging and make sure the

Following Items are contained in the shipping carton:

1)  One piece of Transmitter;

2)  One piece of Receiver

2)  Two pieces of 5V/2A Power Supply.

3)  One piece of IR transmitter and one piece of IR receiver

4)  User's Manual



6.ApplicationDiagrams

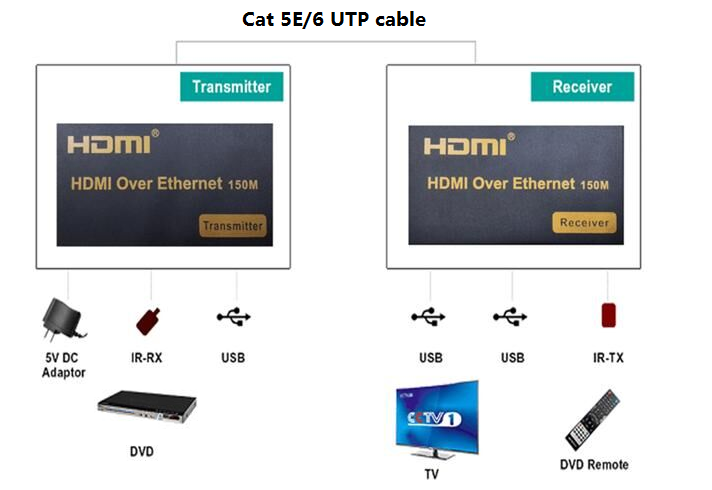

One to one application:

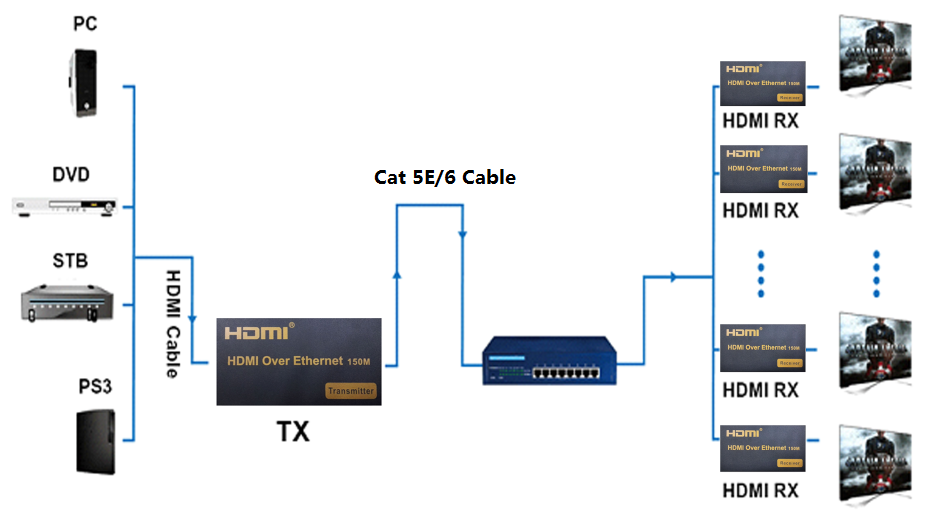

One to many application:
