| Tensile Strength: | 70KN |
|---|---|
| Rated Voltage: | 5KV |
| Application: | High Voltage |
| Material: | Composite Polymer |
| Type: | Insulator |
| Model Number: | FXB1-5/70CT |
| Brand Name: | Junai |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Small size light weight Different types of insulators
1. Characteristics of Small size light weight Different types of insulators
This kind of product is applied to power station facilities, and has features of good water repellence, anti-ageing, resistance to tracking and erosion has high tensile strength and bending strength, high shock resistance, good shock and brittle fracture prevention, light weight, easy to install, and the installation dimensions of top and base are the same with those of porcelain post type, they can be exchanged to use each other.

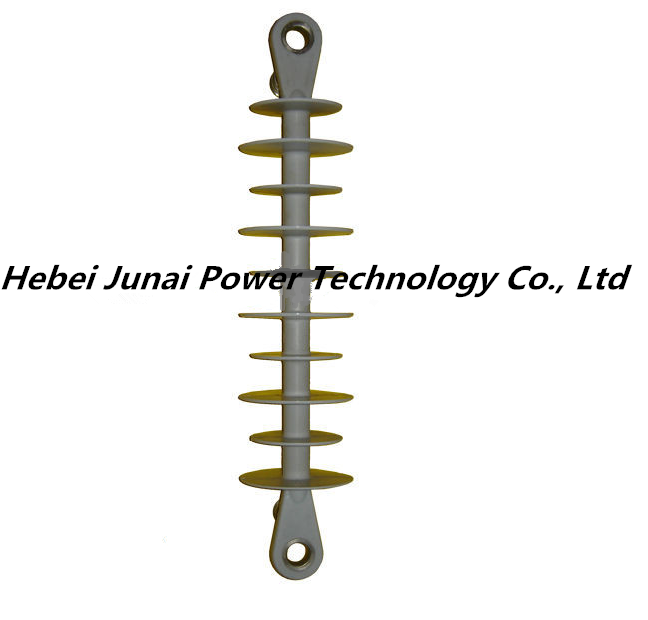

2. Photos of Small size light weight Different types of insulators :
3. Material:
1. Silicon rubber, composite polymer
2. Glass-fiber reinforced epoxy resin rod
3. Hot-dip galvanized steel
4. Main technical parameters
Composite strain post Insulator
|
Type |
Rated |
Rated |
Structure |
Insulating |
Min. Nominal |
Diameter |
1min power |
Full wave lightning |
|
FXB1-12/70CT |
12 |
70 |
345 |
150 |
335 |
88 |
45 |
105 |
|
FXB1-15/70CT |
15 |
70 |
450 |
250 |
500 |
88 |
65 |
145 |
|
FXB1-24/70CT |
24 |
70 |
455 |
260 |
680 |
100 |
70 |
155 |
|
FXB1-25/70CT |
25 |
70 |
430 |
240 |
720 |
132 |
75 |
180 |
|
FXB1-33/70CT |
33 |
70 |
558 |
365 |
980 |
125/93 |
80 |
190 |
|
FXB1-36/70SB |
36 |
70 |
640 |
445 |
1230 |
125/93 |
90 |
210 |
|
FXB1-36/70CT |
36 |
70 |
638 |
445 |
1280 |
140/108 |
95 |
