| Tensile Strength: | 70KN |
|---|---|
| Rated Voltage: | 5KV |
| Application: | High Voltage |
| Material: | Composite Polymer |
| Type: | Insulator |
| Model Number: | FXB1-5/70CT |
| Brand Name: | Junai |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

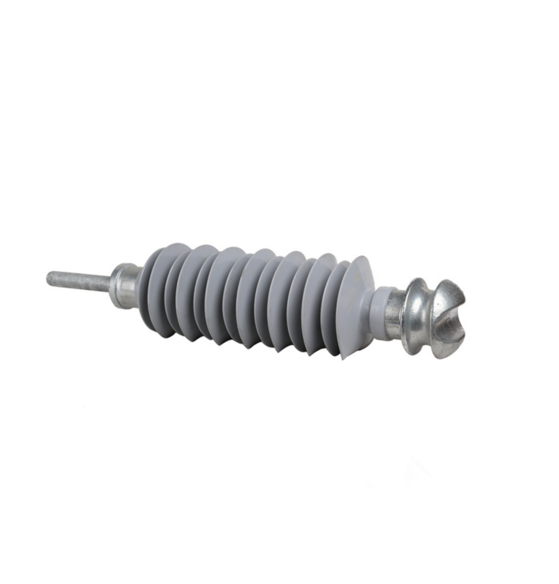

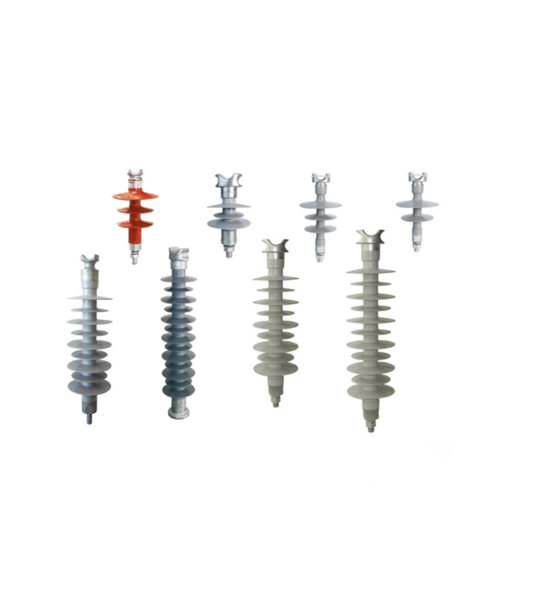

This kind of product is applied to high voltage line facilities, and has features of good water repellence, anti-ageing, resistance to tracking and erosion, has higher tensile strength and bending strength, high shock resistance, good shock and brittle fracture prevention, light weight, easy to install, and the installation dimensions of top and base are the same with those of porcelain pin type, they can be exchanged to use each other.
Product Description
|
Type |
No. Of Sheds |
" X" Length inches (mm) |
Diameter Inches (mm) |
Leakage Distance Inches (mm) |
Dry Arc Distance inches (mm) |
Lighting withstand voltage |
Wet power frequency voltage |
SML Specified Mechanical Load(KN) |
|
|
D |
d |
||||||||
|
FPQ-10/5.0 |
3 |
285 |
123 |
93 |
450 |
208 |
110 |
40 |
5.0 |
|
FPQ-24/10.0 |
5 |
320 |
168 |
/ |
800 |
206 |
170 |
70 |
10.0 |
|
FPQ-24/12.5 |
5 |
252 |
165 |
135 |
650 |
165 |
170 |
65 |
12.5 |
|
FPQ-36/12.0 |
14 |
480 |
130 |
115 |
1200 |
356 |
230 |
90 |
12.0 |
|
FPQ-36/10.0 |
11 |
507 |
132 |
122 |
1100 |
356 |
230 |
90 |
10.0 |
1. Shed connected with core by integral foring
2. The thinkness of housing > 3mm, unifirm to IEC Standard
3. Acid resistant, hight temperature resistant of epoxy fiberglass core
4. Metal end fittings, core and sheds connected by new crimping process
5. Hot galvanization and technology of rareearth aluminum coating to avoid coating
shedding prolonging the service life
