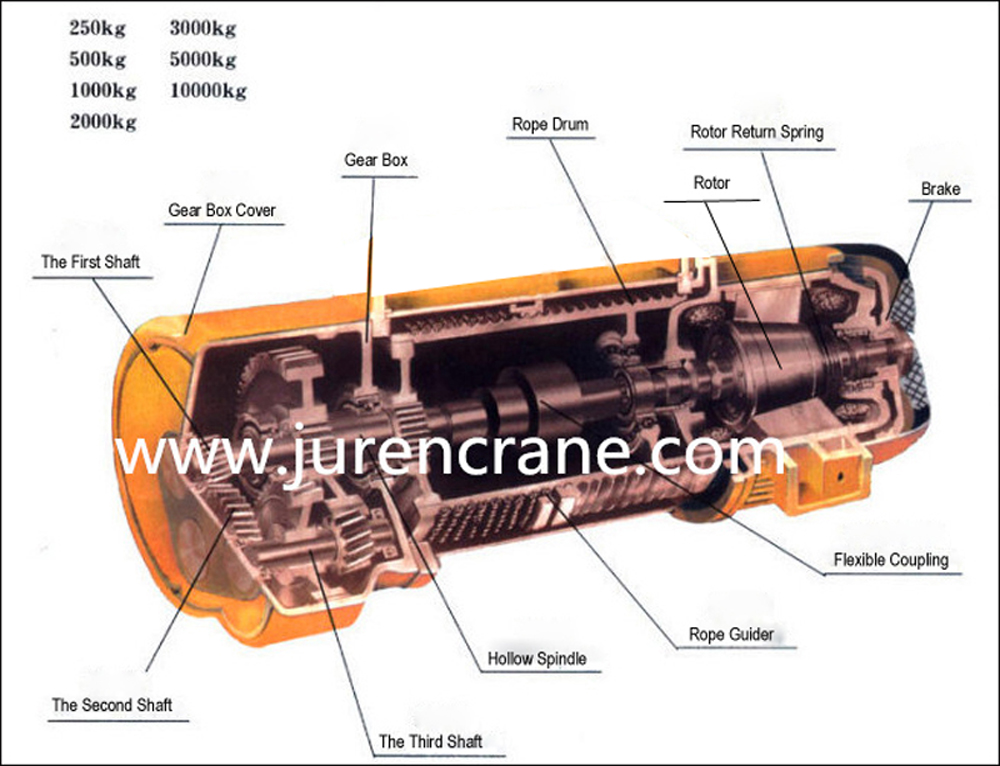

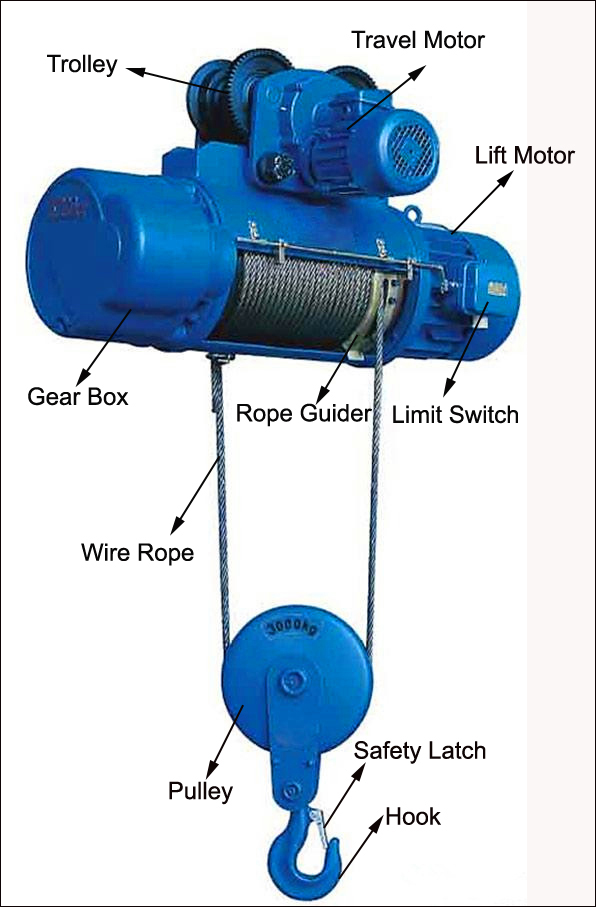

Wire Rope Electric Hoist is assembled by several parts, and these units are separately accessible and promptly disassembled. The complete hoist can be easily maintained.

Motor: Hoist Motor is a taper type rotor motor with brake,  The lifting speed of CD type electric hoist is at normal speed, which can satisfy general operational requirements. MD type electric hoist has two speeds—normal speed and slow speed. When it is used at slow speed, it can meet the demands of the precision handling. So, MD type is more widely used than CD.

Gear Box: Hoist Gear Box has specially treated gears for high wear resistance. Each Geared Shaft assembly is supported on ball or roller bearings, to ensure smooth, low-friction operation.

Wire Rope: Hoisting ropes comply with the exporting standards. The leading rope taken by the Drum does not slip sideways when slack.

Rope Drum: Grooved hoist Drum, seamless pipe of adequate length to be wounded in one layer and to provide proper support for the rope to minimize abrasive wear is provided. Drum Shaft resolves on Ball Bearings for ensuring smooth running.

Electric apparatus controlling system: Model CD1 and MD1 hoist is composed of the contactor box, controlling switch, cut-off limiter, the working voltage of controlling switch is 380V,36V or 24V(safety voltage).

Rope Guider: Rope Guider is in two halves, ensuring easy accessibility. It encircles the Drum completely so that the rope may not uncoil even when the Hoist is in unloaded condition. The rope guiders of our company is thickened and dilated, so that it is not easy to be damaged.

Hook: The hook can rotate 360 degree and has safety latch.
