TAICANG CHENGMING HYDRAULICS Co., Ltd
HTTP: //www. Ks-cmyy. COM/

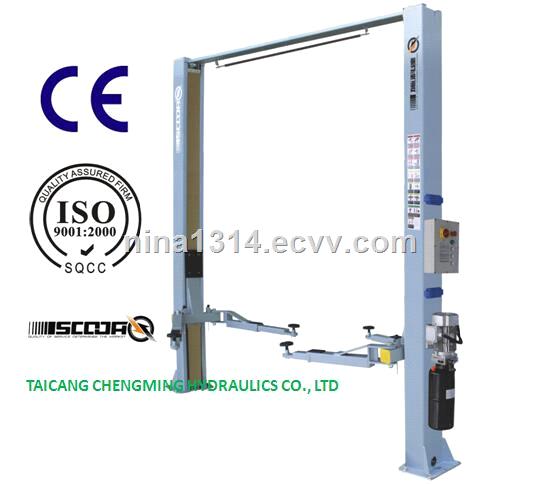

MODEL	SB40
Capacity	4000kg
Maximum lifting height	1900mm
Minimum lifting height	100mm
Overall height	3601mm
Overall width	3410
Width between columns	2800
Maximum vehicle width	2660
Lifting time	50s
Power supply	220~240V/380~415V, 1/3pH, 50Hz/60Hz

Features:
1. Clear loor design.
2. Two sides manual lock release.
3. 3 stage screw up pad
4. CE requied controlbox, foot protection bar, limit switch, 3 tage arm,reinforcement plate (optional).
5. Dynamic test: 115% of the rated capacity, Static test: 150% of the rated capacity.

Container

Weight

Package Dimension

20″	40″	Net	Gross	L*W*H
12	36	670	680	3700×560×700mm
