Profile roof tile:

Thickness: 0.13--0.8mm;
Width: 650--1100mm;
Length: 1.8-5.8m;
Zinc Coating: 60--180g/m2
Color: Sample or as your required
Regular Datiles:
Type 920: Pitch of waves 78mm, wave height: 17-18mm, wave number: 11;
Type 800: Pitch of waves 76.2--78mm, wave height: 17-18mm; Wave number: 10

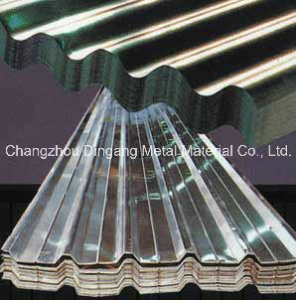

Two types of Roofing sheet

1	Product	Corrugated steel sheets
2	Material	JIS G3302 SGCH(full hard);Zinc coating:60-150g/m2
3	Physical properties	Tensile strength:220-550Mpa;Yield strength:350Mpa;
		Elongation: 10%-20%;Hardness>50
4	Thickness	0.13mm-0.8mm
5	Width after corrugated	650mm-1150mm;Regular width:800mm, 840mm, 900mm
6	Length
		1600mm-4000mm or according to customers' requests
7	Wave
		Wave height:18mm(+/-2)mm.
		Wave distance:76.2mm (+/-3)mm.
8	Application	1.Exterior decoration of buildings: Roof and wallboards of industrial, commercial,residential and public facilities
		2.Interior decoration of buildings: Wallboards, ceiling boards,partition boards, fireproof doors
		3.Building accessories: Window panels, signboards
		4.Home appliances: Oil/gas boilers, rice buckets, portable gas burners
9	Advantages	1.design according to customers'requirements
		2.manufacture under complete quality control system--ISO9001
		3.it is light,easy to be installed
		4.many colors available,with elegant and noble looking.it is widely used in factories,hotels,exhibitions
		5.eco-friendly material:can be uesd several times and can be recycled
		6.shorter construction period,longer using times
10	Main markets
		southeast Asia and South America,Africa, European
