| Type: | Cat 5e |
|---|---|
| Model Number: | cat5e sftp |
| Brand Name: | Baiceton |
| Place of Origin: | China (Mainland) |
| AWG: | 23/24/26/28/AWG in stock |
| Insulation Material: | HDPE |
| Jecket: | PVC |
| conductor material: | 100% Bare Copper |
| Conductor Diameter: | 0.5mm 24AWG |
| Length: | 1000ft/305m |
Quick Details
Specifications

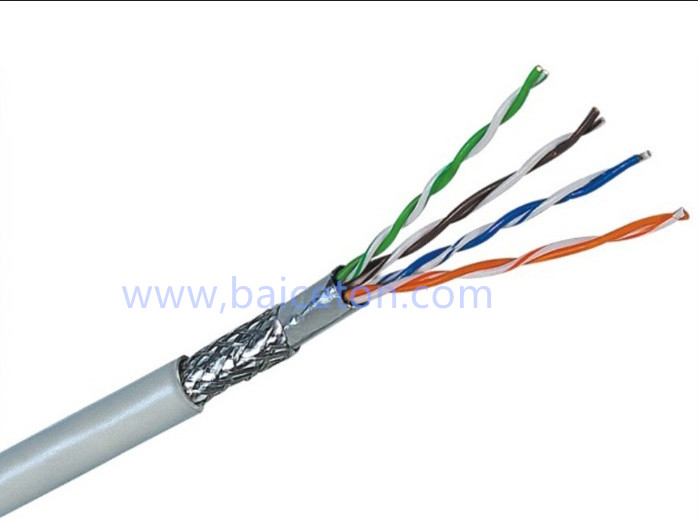

SFTP 24AWG Cat5E Cable Price High Twisted Pair Cable
Cable Specification:
Twisted pair: 4P
Conductor Type: Solid
size : 22AWG/23AWG/24AWG
Conductor Material: OFC/BC/CU/CCAG/CCA
Jacket
Layer: Single
Print word on cable: As Clients' Request
Length: 305M
/or as your request
Jacket Color: Optional
Electrical Characteristic:
Impedance: 100±15Ω
at 1~100MHz
Stretching Resistance: (max)250N
NVP: 72%
Bending Radius: (min)7
times the outer diameter
Operating Temperature: -40 °C - +70 °C
Retardation
Deviation: (max)40ns/100m
Reference Standard: YD/T1019-2001, ANSI/TIA/EIA-568B, ISO/IEC11801
Certification:CE,ROHS
Application:Computer Network Cabling Project / Broadband Network Communication
Ethernet Network / Audio and Data
Transmission
