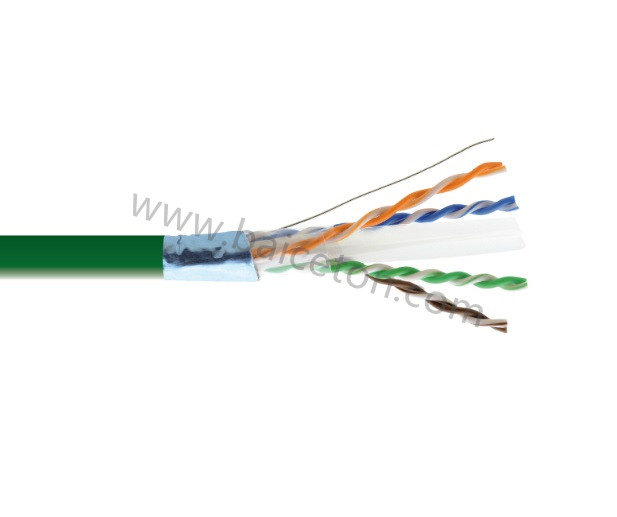

Ftp Cm Rated Cat6 Cable Cat6 Ethernet Cable Lan Cable Factory


Cable Specification:

Twisted pair: 4P     Conductor Type:       Solid

Conductor size : 22AWG/23AWG/24AWG Conductor Material: OFC/BC/CU/CCAG/CCA/CCS

Jacket  Layer: Single        Print word on cable: As Clients' Request

Length:305M /or as your request        Jacket Color:    Optional

Electrical Characteristic:
Impedance  100±15Ω at 1~100MHz     Stretching  Resistance: (max)250N

NVP:  72%     Bending Radius: (min)7 times the outer diameter

Operating Temperature: -40 °C - +70 °C Retardation     Deviation: (max)40ns/100m

Reference Standard:

YD/T1019-2001, ANSI/TIA/EIA-568B, ISO/IEC11801

Certification:CE,ROHS

Application:Computer Network Cabling Project / Broadband Network Communication

Ethernet Network / Audio and Data Transmission
