| Type: | Furniture Caster |
|---|
Quick Details
Specifications
Features:
1,Double row ball bearing swivel raceway construction for extra strength
2,Finish:All parts except wheel are zinc plated for corrosion resistance
3,Legs are formed and welded to yoke base to increase strength.
Applications:
Excellent for medium duty platform trucks,food service equipment,large srork carts,etc;
|
FASTENING TYPE |
FASTENING SHAPE |
CODE NO |
FASTENING SPECIFICATION | ||
|
OVERALL SIZE |
BOLT HOLE SPACING |
BOLT SIZE |
|||
|
TOP PLATE |
|
A1 | 85×95 |
77×58 to 67×66 (62×72) |
M10 |
| A2 | 100×114 |
66×92 to 76×76 (71×84) |
M10 | ||
>>>43 Series Specifications Unit:mm
|
CASTER PART NUMBER |
WHEEL SPECIFICATION |
CASTER SPECIFICATION |
||||||||
| SWIVEL | RIGID | BRAKE | DIAMETER | TREAD WIDTH | TYPE |
EARING (Bearing) |
AXLE DIA (USE BOLT) |
OVERALL HEIGHI | SWIVEL RADIUS | LOAD CAPACITY(kg) |
| 35/ | 6.5 | |||||||||
| 4340 Plate type | 100.5 | 34/38 | more below | more below | 12.7 | 131/134.5/139 | 73.5/74.5/76 | more below | ||
| 1 | ||||||||||

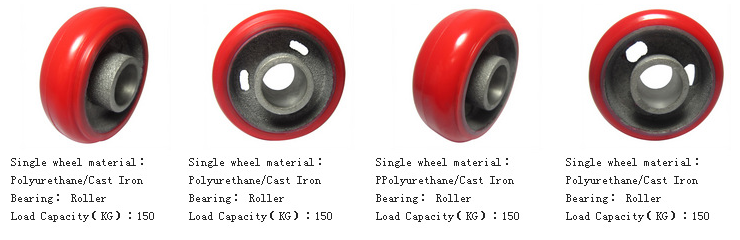

>>>4340Plate type single wheel material display

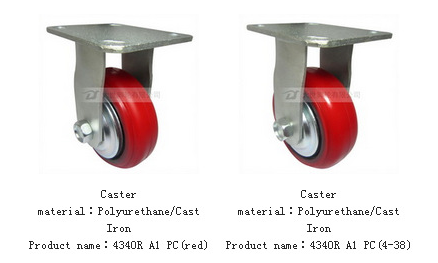

| >>>4340plate type rigid finished products display |
>>>>> Specifications for 43 Series
| ACCESSORIES CODE | DESCRIPTION |
| TB | Top Lock Brake |
| TG | Brass Plating |
