| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Weight: | 8200KG |
| Dimension(L*W*H): | 4.3m*2.4m*2.9m |
| Power(W): | 11KW |
| Voltage: | 220 |
| Model Number: | 75-20L |
| Brand Name: | KAISU |
| Place of Origin: | China (Mainland) |
| Automatic Grade: | Automatic |
| Screw Design: | Single-screw |
| Plastic Processed: | PE/PP/PV/PVC/PA |

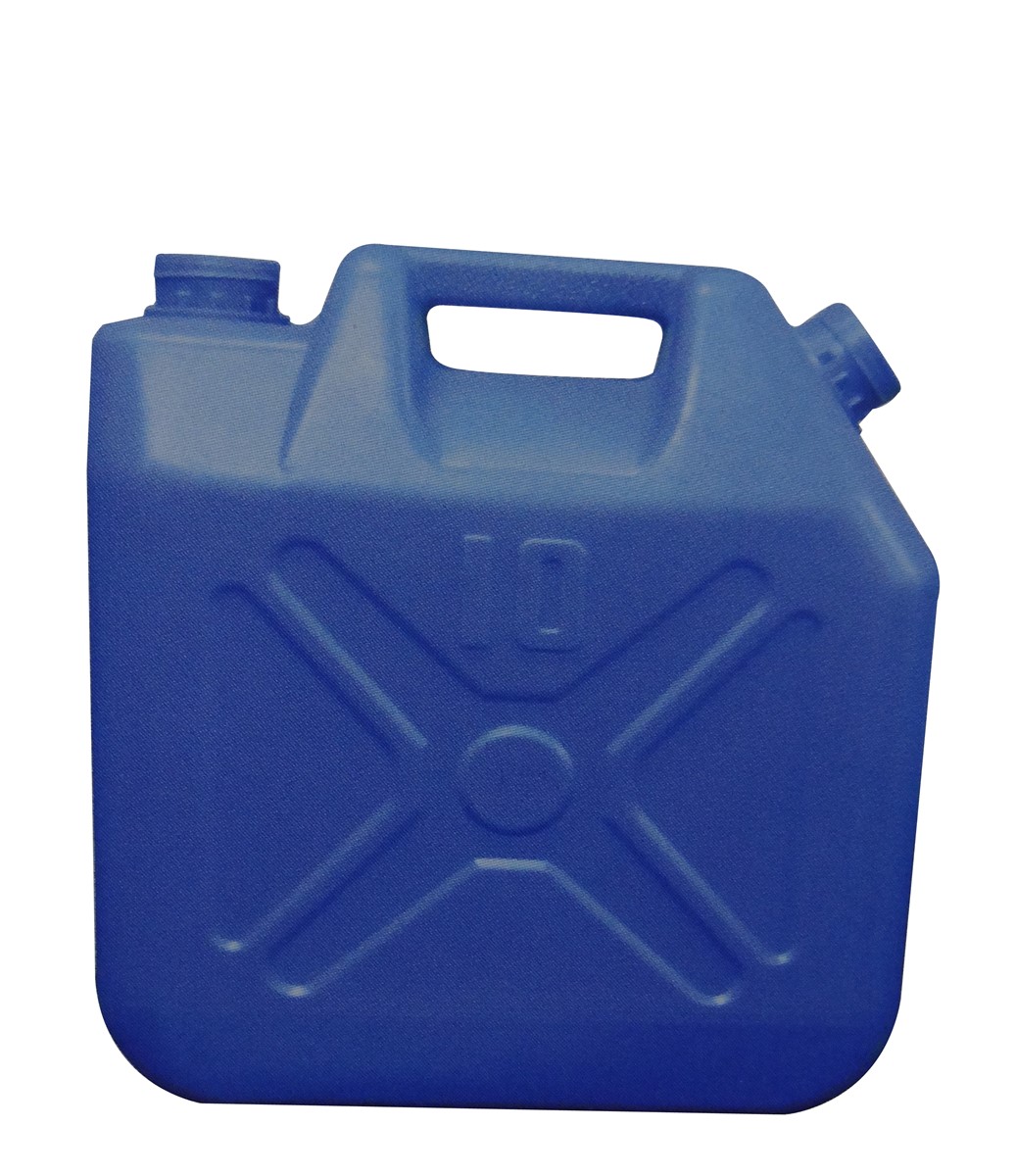

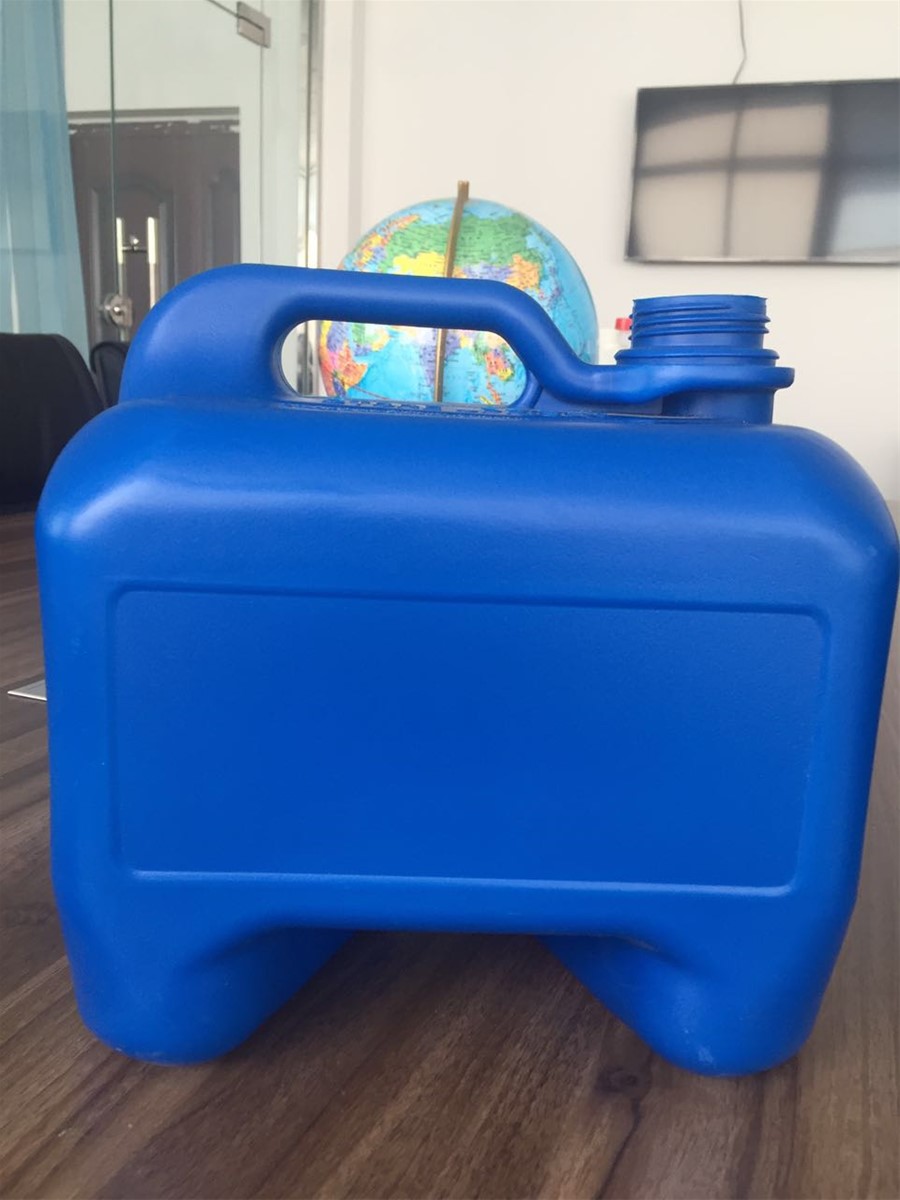

| Application: | bottle |
| Condition: | New |
| Plasticing capacity:90 kg/hr: | Otput:60-70 |
Quick Details
Specifications
KAISU company insist on the concept of " progress by innovation,founation by integrty,strive by service" .

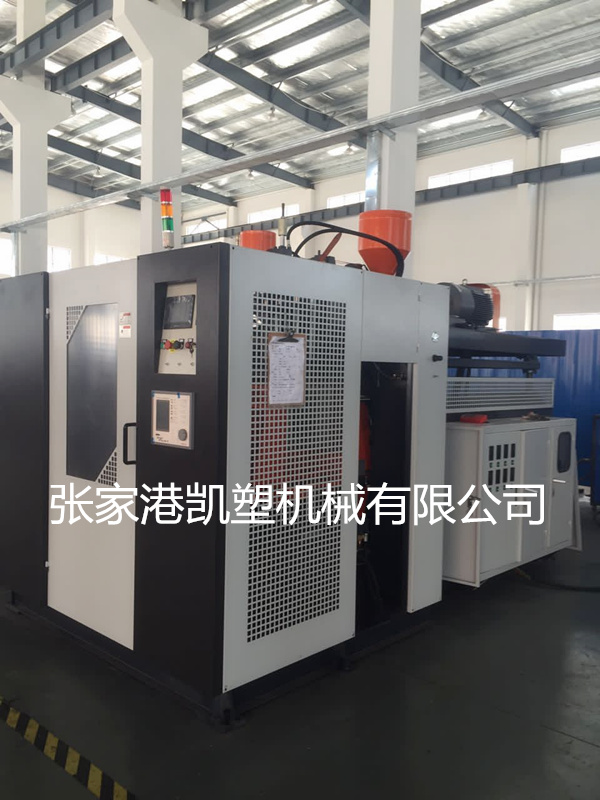

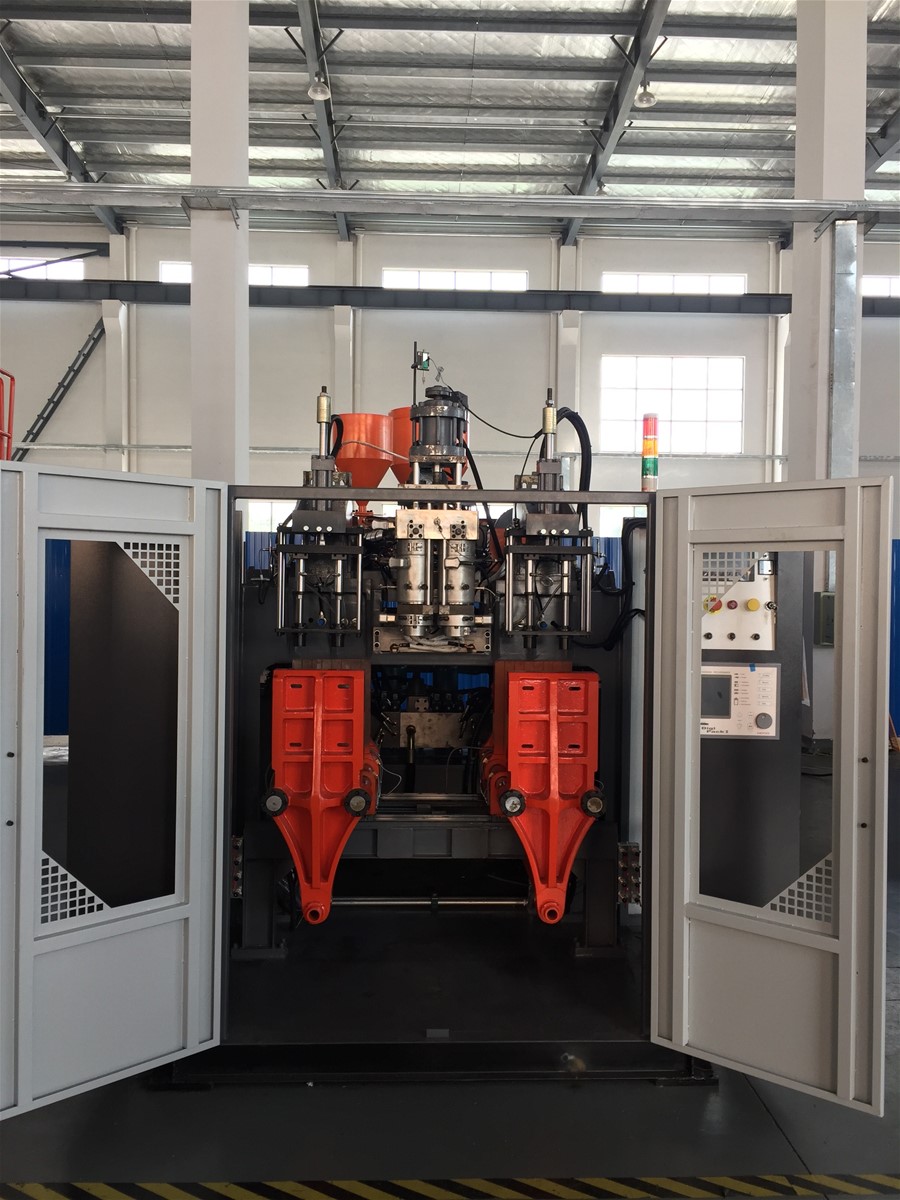

KS blow molding machine using a continuous die design, Taiwan Wei Lun touch screen display, Mitsubishi PLC control. All Chinese / English display man-machine dialogue, direct and clear, easy to operate. The accessories are well-known brand configuration, design reasonable, simple and elegant appearance of the machine, the inherent stability and can fully meet your production of plastic products of the requirements.
TECHNICAL CHARACTERISTICS:
We adopt spiral mandril combination system,which owns high adaptability with multi-sections up to 7 layers.The multi-layer extrusion head is adopted with flowage differentiation design,to achieve fine circumference distribution.The material distribution is well-proportioned,suitable for producing wide range plastic material,which owns well self-cleaning function at low extrusion capacity.The unique delamination runner design could eliminate the joint line completely and improve the color eliminate the joint line completely and improve the color-changing efficiency highly!
BASIC EQUIPMENT

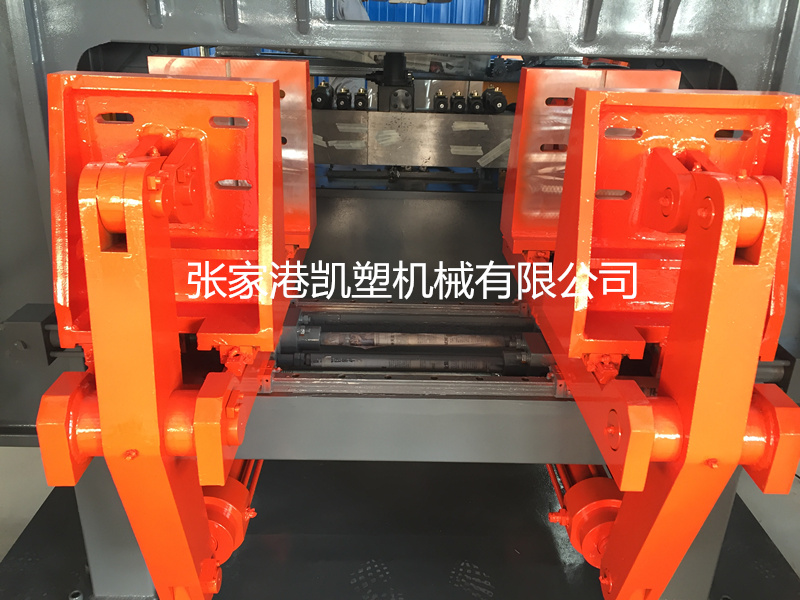

Clamping System:Three platen linkage+double station linear slider
Extrusion System:Hard gear box+inverter
Die System:Control-incoming die with special control
Hydraulic System:Hydraulic valve,seal parts+proporional control
Control System:ImportPLC+Human-PLC automatic temperture control model
Parsion Controller:MOOG
| Specifications | Unit | KS75-20L | |
|
|
Material | PE.PP.PV.PVC.PA... | |
|
|
Max container capacity | L | 20 |
|
|
Machine Dimension(L*W*H) | M | 4.3*2.4*2.9 |
|
|
Total weight | ton | 8.52 |
|
|
Clamping | ||
| Clamping force | KN | 150 | |
|
|
Platen opening stroke | mm | 410-820 |
|
|
Platen size | mm | 550*600 |
|
|
Mould thickness | mm | 560 |
|
|
Power | ||
|
|
Motor power of oil pump | KW |
11 |
|
|
Air pressure | Mpa | 0.8 |
|
|
Air consumption | M3/min | 0.8 |
|
|
Average energy consumption | KW | 35 |
|
|
Extruder unit | ||
|
|
Screw diameter | mm | 75 |
|
|
Screw L/D ratio | L/D | 25:1 |
|
|
Plasticing capacity | Kg/hr | 90 |
|
|
Number of heating zone | zone | 4 |
|
|
Extruder heating power | KW | 14.5 |
|
|
Extruder driving power | KW | 30 |
|
|
Die-head | ||
|
|
Number of heating zone | zone | 4 |
|
|
power of die heating | KW | 9.5 |
|
|
Max die pin diameter | mm | 215 |
|
|
Center distance of double die | mm |
|
