| Item Type: | Light Strips |
|---|---|
| Light Source: | LED |
| Brand Name: | Leomay |
| Emitting Color: | White |
| Certification: | CCC,CE,FCC,RoHS,UL,VDE |
| Working Lifetime(Hour): | 50000 |
| Input Voltage(V): | 12/24V |
| Model Number: | LM2835-WN60-W |
| Place of Origin: | China (Mainland) |
| Lamp Body Material: | Copper |
| Working Temperature(℃): | |
| Color Temperature(CCT): | 2600-2700K,2900-3200K,4000-4500K,6000-6500K,9000-11000K |
| CRI (Ra>): | 80 |
| Lamp Luminous Flux(lm): | 25-30lm/LED |
| Lamp Power: | 12W/M |
| Type: | Flex LED Strips |
| LED Light Source: | Epistar |
Quick Details
Specifications

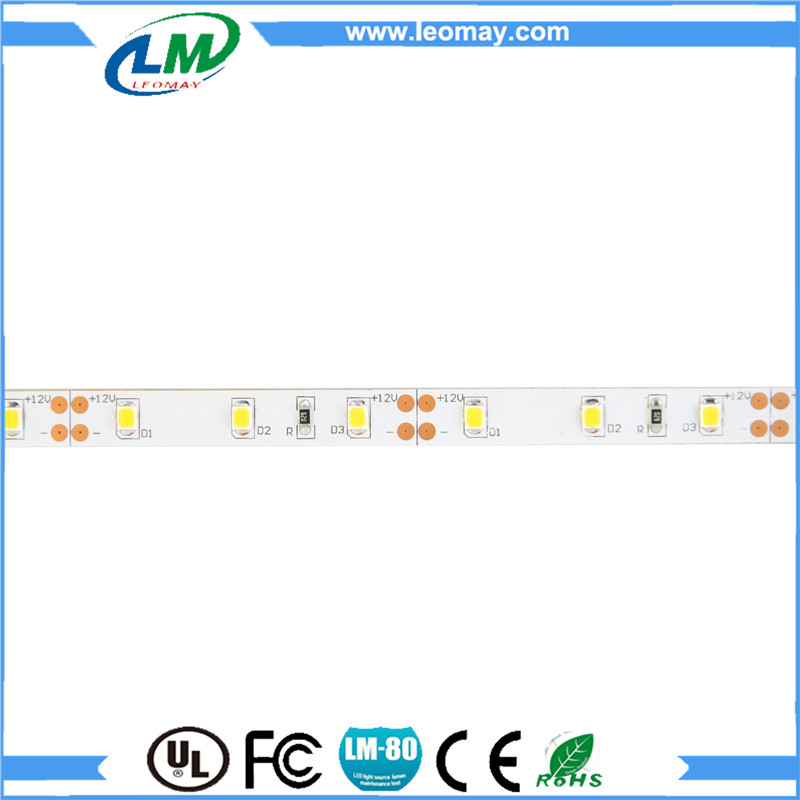

Product Specification:2835 CRI 90 Epistar IP33 LED Strip Light with UL certified
Model:LM2835-WN60-W
Width:8/10mm
Length:5M/roll
Voltage:DC12V/24V
LED Type: LED Strip Light 2835
Lumen:27-29 lm/leds
Wattage:0.2W/leds
LED QTY:60LEDs/m
Color:W/WW/NW/PW/CW/B/Y/R/G/RGB
Waterproof:IP20/IP65/IP67/IP68
Warranty:2 years
Product Features:
A. CE,RoHs,UL,FCC certificate
B. Reliable SMD Source, Epistar. SMD 2835, super brightness, high CRI, ideal for restraurant and super market, make everything looks more real.
C. Operating low voltage (DC12V, DC24V) for human safety.
D. Energy saving and environmental conservation, long lifespan.
Product Applications:
A. Indoor and outdoor decoration lightings.
B. Large scale backlight.
C. Window display lighting.
D. Building contour decorative lighting.
E. Ad. Signs, light boxes.
F. Landscape outlines.
G. Car and motorcycle decorative lighting.
H. Bridge edge lighting.
I. Architectural decorative lighting.
J. Emergency hallway lighting.
| Model | LED Qty | Volt | Power | Lumen | CRI | PCB Width | IP Rate | Color |
| LM2835-WN60 | 60leds/m | 12V | 12W/M | 1440lm/m | 75-90 | 8/10mm | IP20/IP65/IP67/IP68 | W/WW/NW/PW/CW/B/Y/R/G/RGB |
| LM2835-WN60 | 60leds/m | 24V | 12W/M | 1440lm/m | 75-90 | 10mm | IP20/IP65/IP67/IP68 | W/WW/NW/PW/CW/B/Y/R/G/RGB |
| LM2835-WN120 | 120leds/m | 12V/24V | 24W/M | 2880lm/m | 75-90 | 10mm | IP20/IP65/IP67/IP68 | W/WW/NW/PW/CW/B/Y/R/G/RGB |
| LM2835-WN240 | 240leds/m | 12V | 48W/M | 5760lm/m | 75-90 | 12mm | IP20/IP65/IP67/IP68 | W/WW/NW/PW/CW/B/Y/R/G/RGB |
| LM2835-WN36-HL | 36leds/m | 24V | 7.2W/M | 864lm/m | 75-90 | 10mm | IP20/IP65/IP67/IP68 | W/WW/NW/PW/CW/B/Y/R/G/RGB |
| LM2835-WN60-HL | 60leds/m | 12V/24V | 12W/M | 1440lm/m | 75-90 | 10mm | IP20/IP65/IP67/IP68 | W/WW/NW/PW/CW/B/Y/R/G/RGB |
| LM2835-WN120-CCT | 120leds/m | 24V | 24W/M | 2880lm/m | 75-90 | 10mm | IP20/IP65/IP67/IP68 | W+WW |
| LM2835-WN60-IR-850NM | 60leds/m | 12V/24V | 12W/M | 1440lm/m | 75-90 | 10mm | IP20/IP65/IP67/IP68 | RED |
| LM2835-WN120-IR-850NM | 120leds/m | 12V/24V | 24W/M | 2880lm/m | 75-90 | 10mm | IP20/IP65/IP67/IP68 | RED |
| LM2835-WN60-UV-365-370NM | 60leds/m | 24V | 12W/M | 1440lm/m | 75-90 | 10mm | IP20/IP65/IP67/IP68 | PURPLE |
| LM2835-WN120-UV-365-370NM | 120leds/m | 24V | 24W/M | 2880lm/m | 75-90 | 10mm | IP20/IP65/IP67/IP68 | PURPLE |
| LM2835-WN60-PORK LAMP | 60leds/m | 12V/24V | 12W/M | 1440lm/m | 75-90 | 10mm | IP20/IP65/IP67/IP68 | PINK |
| LM2835-WN120-PORK LAMP | 120leds/m | 12V/24V | 24W/M | 2880lm/m | 75-90 | 10mm | IP20/IP65/IP67/IP68 | PINK |
