| After-sales Service Provided: | No overseas service provided |
|---|---|
| Model Number: | 0214 |
| Brand Name: | HCN |
| Place of Origin: | China (Mainland) |
| Condition: | New |
Quick Details
Specifications
Description:
HCN brand vibratory ice breakers can be used to mount on the cars, loaders, tractors, skid loaders and other models.Compared with the snow removal machine with snow melting agent, it will not pollute the environment.
Features:
1.vibratory ice breakers can adjust the direct distance between exciting force and breaking-ice roller to the ground.
2.Skid steer vibratory ice breakers use two-damping structure of the breaking-ice roller.
Technical Specifications:

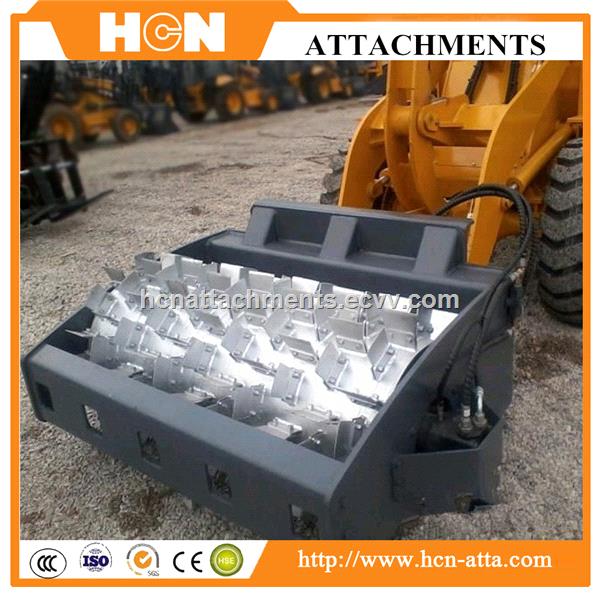

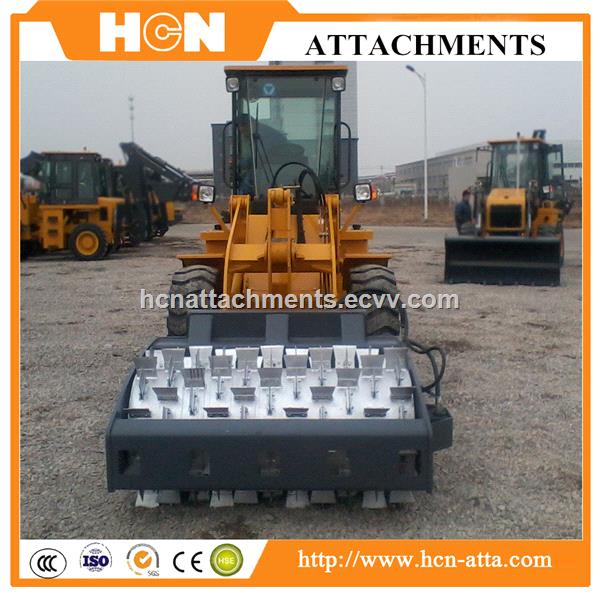

More Detailed Photos:
AS: HCN products are constantly updated and improved, We keep the right to change parameters and design without informing user in advance. Product appearance and color in the photo may be different from actual products, please kind prevail.
Our Services:
HCN Machinery Technology Co., Ltd. (hereinafter referred as HCN) warrants that its products sold are free from defects in material and workmanship and meets HCN's current standards. The warranty period of key parts (Hydraulic Motor, Engine, Hydraulic Cylinder, Hydraulic Pump ) is 6 months or 500 working hours counting when the machine arrive to objective port. Whichever occurs first, according to the first in the calculation.
HCN brand vibratory ice breakers can be used to mount on the cars, loaders, tractors, skid loaders and other models.Compared with the snow removal machine with snow melting agent, it will not pollute the environment.
Features:
1.vibratory ice breakers can adjust the direct distance between exciting force and breaking-ice roller to the ground.
2.Skid steer vibratory ice breakers use two-damping structure of the breaking-ice roller.
Technical Specifications:
|
0214 SeriesVibratory Ice Breaker |
||
|
Model |
021460 |
021472 |
|
Total Length A (mm) |
1095 |
1095 |
|
Total Width B(mm) |
1750 |
2016 |
|
Total Height C(mm) |
736 |
736 |
|
Breaking Ice Width D(mm) |
1500 |
1800 |
|
Weight (Kg) |
750 |
869 |
|
Max. Breaking Ice Thickness (mm) |
100 |
100 |
|
Working flow(L/min) |
60-80 |
60-80 |
|
Working pressure(MPa) |
16-21 |
16-21 |
More Detailed Photos:
AS: HCN products are constantly updated and improved, We keep the right to change parameters and design without informing user in advance. Product appearance and color in the photo may be different from actual products, please kind prevail.
Our Services:
HCN Machinery Technology Co., Ltd. (hereinafter referred as HCN) warrants that its products sold are free from defects in material and workmanship and meets HCN's current standards. The warranty period of key parts (Hydraulic Motor, Engine, Hydraulic Cylinder, Hydraulic Pump ) is 6 months or 500 working hours counting when the machine arrive to objective port. Whichever occurs first, according to the first in the calculation.
