Specifications 1.CE approved
2.Easy, quick, quality
3.Forming unit, for shoes material such as EVA, leather cold forming

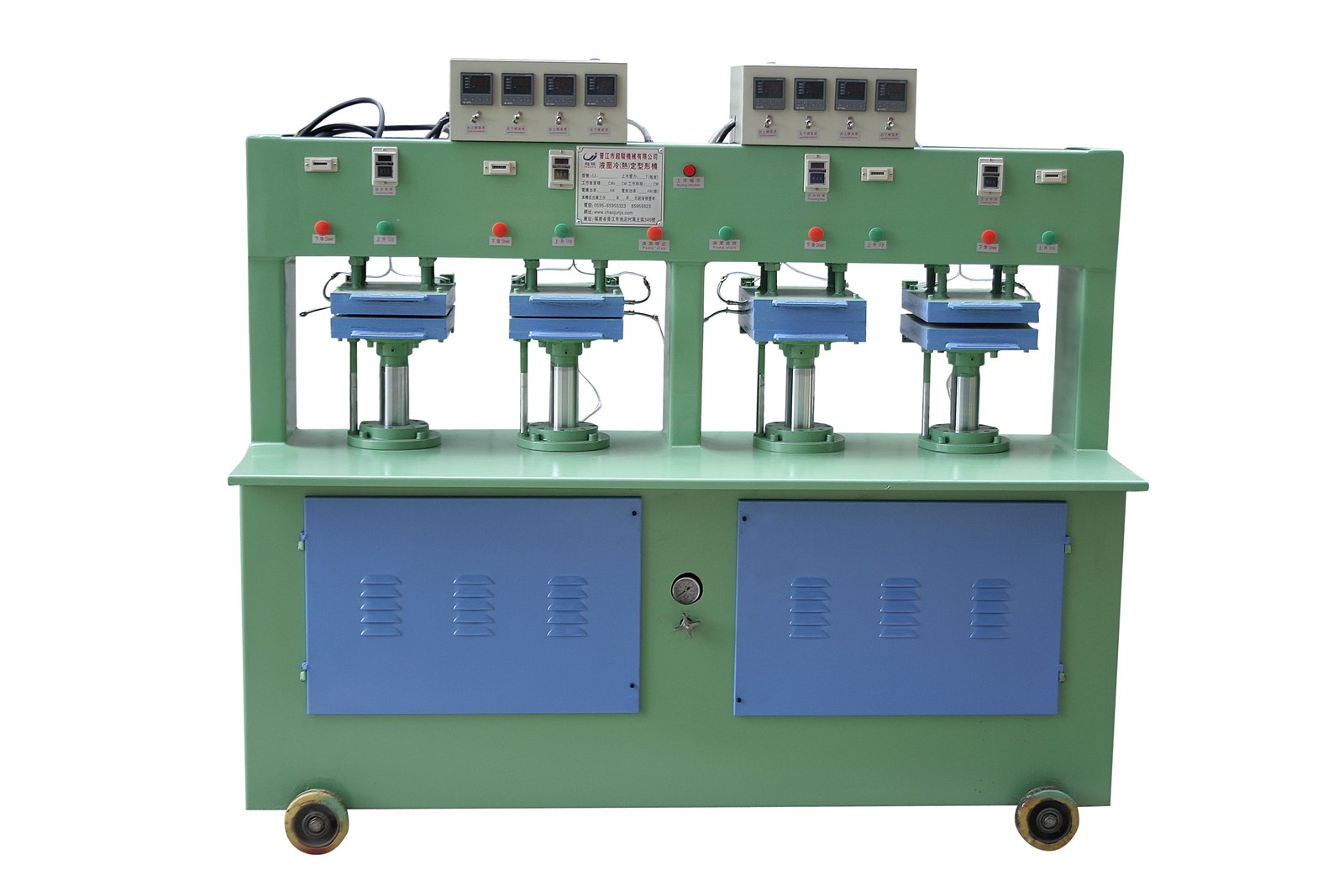

CJ-840 forming unit specification:

	CJ-830 cool molding machine	CJ-840 cool molding machine
Mould dimension	260mm*360mm	260mm*360mm
Stations number of molding	4	4
Longest pressing distance	160mm	160mm
Max force	30T*4stations	40T*4stations
Power	5HP	7HP
Dimension	2210(L)*780(B)*1900(H)	2210(L)*780(B)*1900(H)
Machine weight	2100KG	2250KG



Features:

1.This cold forming unit is designed of double gantry structure which can  resiste strong force, long servicing life and high tension resistance.

2. Equipped with high pressure hydraulic system and electronic control circuit. High quality, high efficiency,

3. Attached with aluminum alloy cooling plate, its has a double-way cooling system to have a good and even circulation. It can work with ice water system to improve working efficiency and quality.

4. Provide two stations and four stations for option.

5. Provide electro-heating system according to requirement additionally.
