Application

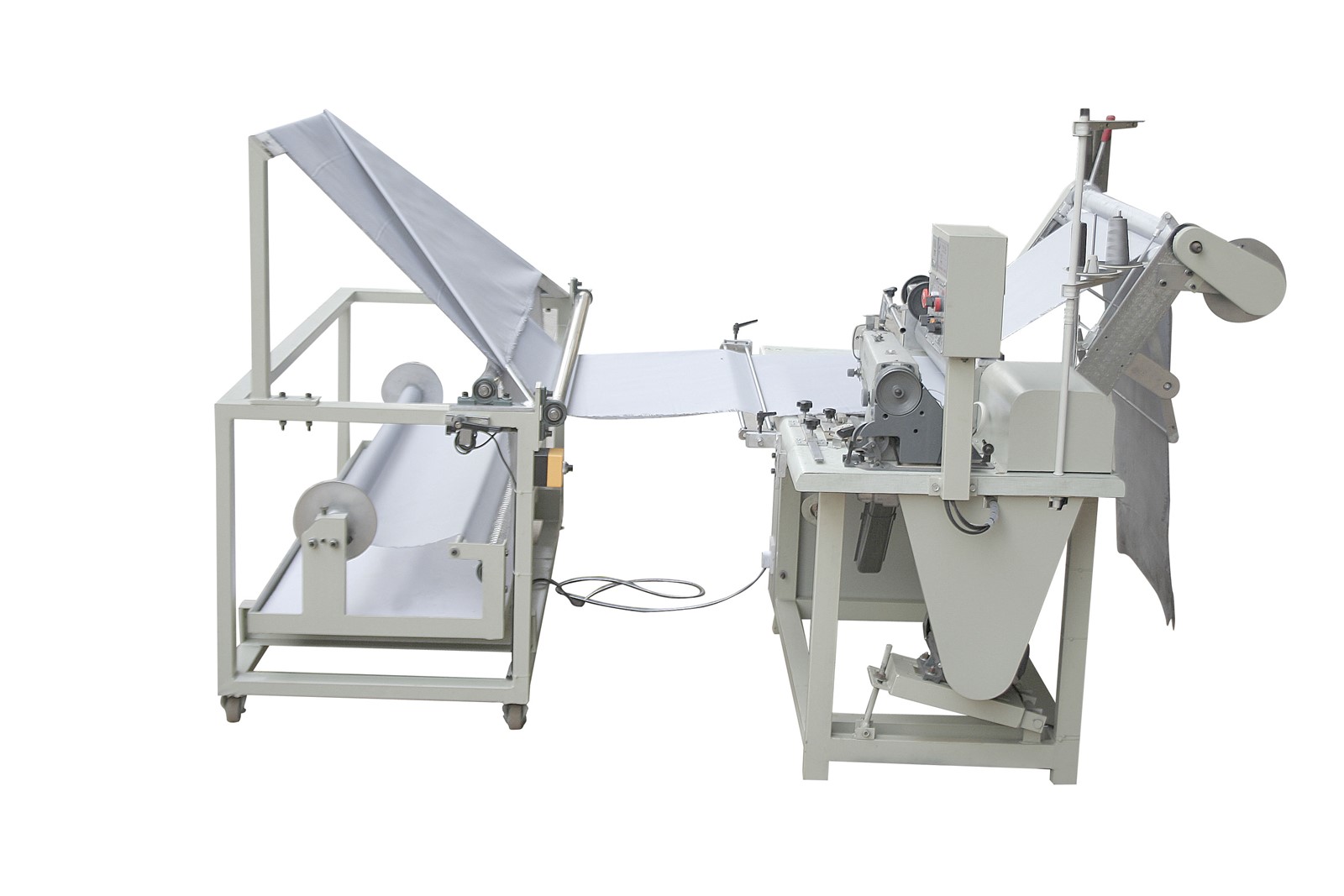

CJ-170DP folding sewing machine is a new  style for fabric double folding and sewing, it takes the place of normal sewing machine,high efficiency. with seam ironing and fabric edge trimming function. It is suitable for all kinds of fabric, nonwoven fabric, foam, lether, paper, etc.

Specification
Fabric width:1.7m(another 2.05m, 2.4m, 2.6m, 2.8m optional)
Voltage:220/380V
Power:1.5KW
Sewing speed:0-480m/h
Electric power:0.2KW
Heating temperature:0-300℃
Dimensions: folded frame:1.85m x 0.85m x1.45m
                spreading machine: 1.65m x 1.25m x1.35m

Feature:
1.Optional head: high-speed side of the cutter sewing machine, five-thread sewing machine, ultrasonic sewing machine.
2.with a wood frame designed to discharge below the fold frame, saving floor space but also put the entire volume or bulk clothe fabric. and the expansion rate and with a side feature, you can expand the width and the fabric edges by folding fabric neatby folded frame will not produce wrinkles.
3.Raab agencies will be folded into the fabric sewing machines, stitching trimming, sewing adn pressing equipment by the split, side split ironing the cloth, and then crushed by the pressure roller, roll the fabric pull raab out, the mercy of aircraft will be put into a Z-shaped fabric folded.
4.A smart thermostat controlling the temperature, the temperature accurately. and is equipped with meters, can measure the length.
5.Sewing and Labrador by the same variable frequency motor drive, variable frequency stepless speed regulation, and speed can meet the requirements of different fabrics, synchronization of high speed sewing cloth up to 480 meters per hour.
6.with a broken automatic stop device, suture break of a good fabric can not automatically shut down.
7.with a fixed width of iron, to ensure the the entire roll width of fabric folded suture line.
8.with automatic feeding device revenue side can be cut down and winding up of bits and pieces. Twill tie of the production process: fold the fabric stitching.
