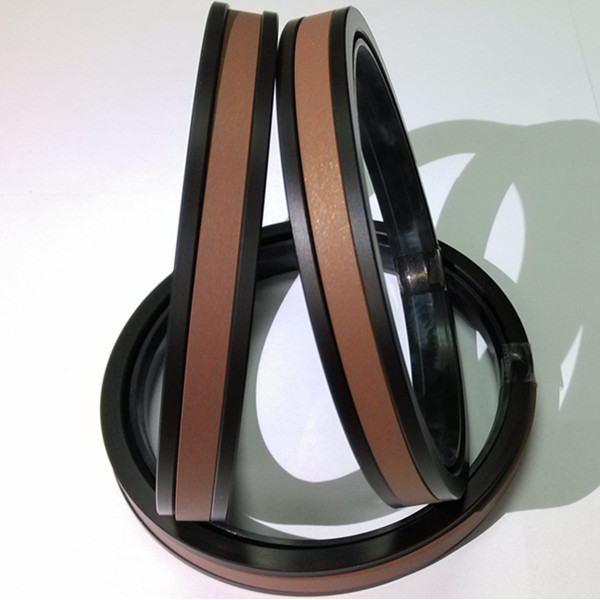

| Model Number: | Hydraulic Excavator Compact Seal, SPGW seal |
|---|---|
| Brand Name: | DSH |
| Place of Origin: | China (Mainland) |
| Material: | PTFE |
| Style: | Hydraulic |
| Standard or Nonstandard: | Standard |
| Material: | PTFE+bronze+POM+NBR |
Quick Details
Specifications
Technical Data
1.Pressure: 50[Mpa]
2.Temperature:-40...+160 degree
3.Slide speed:1.5 (m/s)
4.Medium: Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others.
Material
Standard: elastomer : NBR/PU80
slide ring: PTFE-Bronze
Backup ring: P0M
Standard(on request): elastomer : FKM
slide ring: PTFE-carbon
Backup ring: PTFE
Pressure 160bar 250bar 400bar 500bar
Max Gap E E≤1.0mm E≤0.8mm E≤0.6mm E≤0.4mm
Application
Excavators
Standard cylinders
Mobile hydraulics
Press
