| Rated Voltage: | 110/220/380/400 |
|---|---|
| Rated Power: | 10kva-200kva |
| Frequency: | 50Hz/60Hz |
| Speed: | 1500/1800 rpm |
| Output Type: | AC Three Phase |
| Model Number: | KT-100GF |
| Brand Name: | Kingte |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

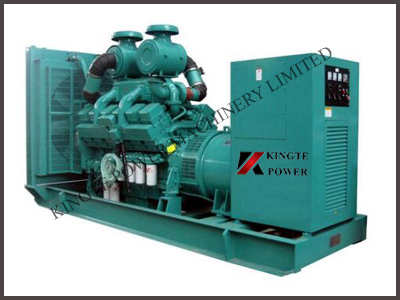

Kingte 10-200kW diesel generators, using Cummins, Perkins, Volvo Penta, Weichai and SDEC diesel engines, coupled with Stamford,
Leroy Somer, Marathon or Feydr alternators. The generators can be open generators type, silent generators type, trailer (portable)
generators type and container generators type.
|
Engine brand |
Genset |
Prime power (kW) |
Standy power (kW) |
Engine model |
Alternator |
Control system |
|
Cummins |
KTC-24GF |
22 |
24 |
4B3.9-G |
Stamford Leroy Somer Marathon or Feydr |
Deep sea or Smartgen ATS or AMF
|
|
KTC-36GF |
33 |
36 |
4BT3.9-G |
|||
|
KTC-50GF |
45 |
50 |
4BTA3.9-G2 |
|||
|
KTC-83GF |
75 |
83 |
6BT5.9-G |
|||
|
KTC-110GF |
100 |
110 |
6BTA5.9-G2 |
|||
|
KTC-121GF |
110 |
121 |
6BTAA5.9-G2 |
|||
|
KTC-165GF |
150 |
165 |
6CTA8.3-G2 |
|||
|
KTC-183GF |
166 |
183 |
6CTAA8.3-G2 |
|||
|
KTC-220GF |
200 |
220 |
6LTAA8.9-G2 |
|||
|
Perkins |
KTP-11GF |
10 |
11 |
403D-15G |
Stamford Leroy Somer Marathon or Feydr |
Deep sea or Smartgen ATS or AMF
|
|
KTP-18GF |
16 |
18 |
404D-22G |
|||
|
KTP-23GF |
21 |
23 |
404D-22TG |
|||
|
KTP-26GF |
24 |
26 |
1103A-33G |
|||
|
KTP-40GF |
36 |
40 |
1103A-33TG1 |
|||
|
KTP-53GF |
48 |
53 |
1103A-33TG2 |
|||
|
KTP-58GF |
52 |
58 |
1104A-44TG1 |
|||
|
KTP-70GF |
64 |
70 |
1104A-44TG2 |
|||
|
KTP-88GF |
80 |
88 |
1104C-44TAG2 |
|||
|
KTP-120GF |
109 |
120 |
1106A-70TAG1 |
|||
|
KTP-132GF |
120 |
132 |
1106A-70TAG2 |
|||
|
KTP-160GF |
144 |
160 |
1106A-70TAG3 |
|||
|
KTP-176GF |
160 |
176 |
1106A-70TAG3 |
|||
|
KTP-200GF |
180 |
200 |
1306A-E87TAG4 |
|||
|
Engine brand |
Genset |
Prime power (kW) |
Standby power (kW) |
Engine model |
Alternator |
Control system |
|
Volvo |
KTV-75GF |
68 |
75 |
TD520GE |
Stamford Leroy Somer Marathon or Feydr |
Deep sea or Smartgen ATS or AMF
|
|
KTV-88GF |
80 |
88 |
TAD531GE |
|||
|
KTV-115GF |
104 |
115 |
TAD523GE |
|||
|
KTV-132GF |
120 |
132 |
TAD731GE |
|||
|
KTV-165GF |
150 |
165 |
TAD732GE |
|||
|
KTV-182GF |
165 |
182 |
TAD733GE |
|||
|
KTV-220GF |
200 |
220 |
TAD734GE |
|||
|
Weichai |
KTW-30GF |
27 |
30 |
K4100D |
Stamford Leroy Somer Marathon or Feydr |
Deep sea or Smartgen ATS or AMF
|
|
KTW-41GF |
38 |
41 |
K4100ZD |
|||
|
KTW-56GF |
51 |
56 |
R4105ZD |
|||
|
KTW-84GF |
76 |
84 |
R6105ZD |
|||
|
KTW-108GF |
98 |
108 |
R6105AZLD |
|||
|
KTW-131GF |
120 |
131 |
R6105IZLD |
|||
|
KTW-153GF |
139 |
153 |
R6113ZLD |
|||
|
Sdec |
KTS-55GF |
50 |
55 |
SC4H95D2 |
Stamford Leroy Somer Marathon or Feydr |
Deep sea or Smartgen ATS or AMF
|
|
KTS-70GF |
64 |
70 |
SC4H115D2 |
|||
|
KTS-88GF |
80 |
88 |
SC4H160D2 |
|||
|
KTS-110GF |
100 |
110 |
SC4H180D2 |
|||
|
KTS-132GF |
120 |
132 |
SC7H230D2 |
|||
|
KTS-165GF |
150 |
165 |
SC7H250D2 |
|||
|
KTS-176GF |
160 |
176 |
SC8D280D2 |
|||
|
KTS-198GF |
180 |
198 |
SC9D310D2 |
