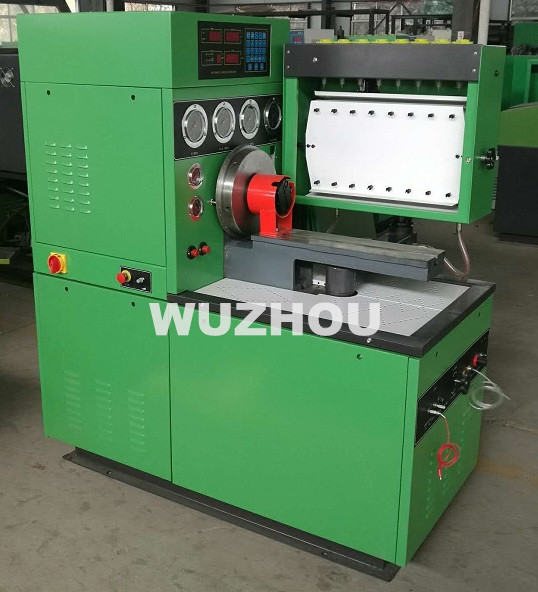

12PSB DIESEL PUMP TEST EQUIPMENT

                         ------ 8 Cylinders MINI TEST EQUIPMENT

                         ------- Test diesel in line pumps and rotary pumps



Test diesel mechanical pumps ( in line pump and rotary pump).

Characteristics:

1. Main motor frequency conversion adjust speed

2. Small value of reduction of speed, large output torque

3. High measurement accuracy

4. The function of overvoltage, overload and short circuit

5. Seven kinds of rotation speed presetting

6. Constant temperature controlled

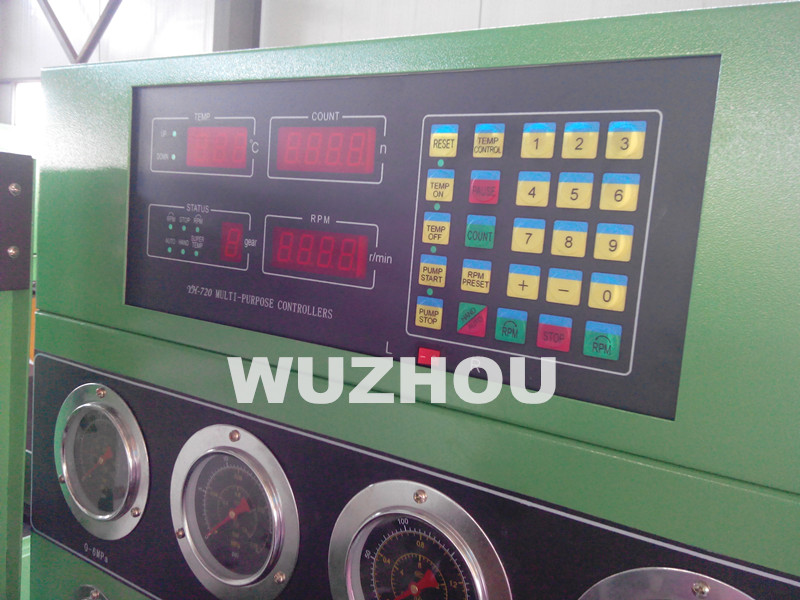

7. Rotation speed, count, temperature display

8. Built-in air supply

9. Digital display



Functions:

1. Test each cylinder's oil supply capacity at various rotation speed

2. Test each cylinder's injection time with static state

3. Test the mechanical speeds governor

4. Test electromagnetic valve of distribution pump

5. Check pressure compensators

6. Checking of the pneumatic speed governor's vacuum performance

7. Test the oil-return quantity of distribution pump

8. Test inner pressure of distributor pump.

9. Test the sealing performance of injection pump



Technical parameters:

1. Rotation speed:0~4000 r/m

2. Double series of graduates:45cc,150cc

3. Volume of diesel fuel tank:60L

4. Temperature autocontrol: 40±2℃

5. Test oil filtering unit: 5μ

6. D.C. supply:12V/24V

7. Feed pressure:low:0~0.4Mpa; high:0~4Mpa

8. Air pressure:positive :0~0.25Mpa; Negative:-0.05~0Mpa

9. Flywheel inertia: 0.8KG·M²

10. Center height:125mm

11. 3 phase power resource:380V/50Hz or 220V/60Hz

12. Output power resource: 7.5KW, 11KW, 15KW, 18.5KW, 22KW or as request
