| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | One year |
| Certification: | CE |
| Weight: | 3800kg |
| Dimension(L*W*H): | 3040x1610x1620mm |
| Rated Power: | 5.5kw |
| Voltage: | 380v/220v |
| Model Number: | MS8-4x2500 |
| Brand Name: | OHA |
| Place of Origin: | China (Mainland) |
| Condition: | New |
| Name: | MS8-4x2500 CNC Swing Beam Shears price |
| Type: | MS8-4x2500 |
| Thickness(mm): | 4 |
| Width(mm): | 2500 |
| Cutting Angel: | 1()30' |
| Material Intension(kn/cm): | |
| Rear stopper adjustement(mm): | 20-500 |
| Travel times(Times/Min): | 10 |
| Hold downs(Pcs): | 12 |
| Main power(kw): | 5.5 |
Quick Details
Specifications
MS8 Series CNC Swing Beam Shears
Technical specifications:
MS7 series CNC hydraulic swing beam shears
1.standard equipment:
-CNC control system
-Powered Back guage X-axis
-DELTA Inverter controlled back guage
-HIWIN Ball screws & Polished rod with 0,05mm accuracy
-Squaring Arm and Front Support Arms
-Germany Bosch-Rexroth Hydraulic
-Germany EMB Tubing connector
-Germany Siemens Main Motor
-Telemecanique/Schneider Electrics
-Hydraulic & Electrical overload protection
-Cutting Line Illumination and wire for shadow line cutting
-Top blade with two cutting edges and bottom blade with four cutting edges(6CrW2Si)
2.safety equipment:
-safety standards(2006/42/EC)
-1.EN 12622:2009+A1:2013
-2.EN ISO 12100:2010
-3.EN 60204-1:2006+A1:2009
-Front finger protection(safety light curtain)
-South Korea Kacon Foot Switch(Level 4 of safety)
-Back metal safe fence with CE standards
-Safety relay with Monitor the pedal switch and safety protection
Main pictures

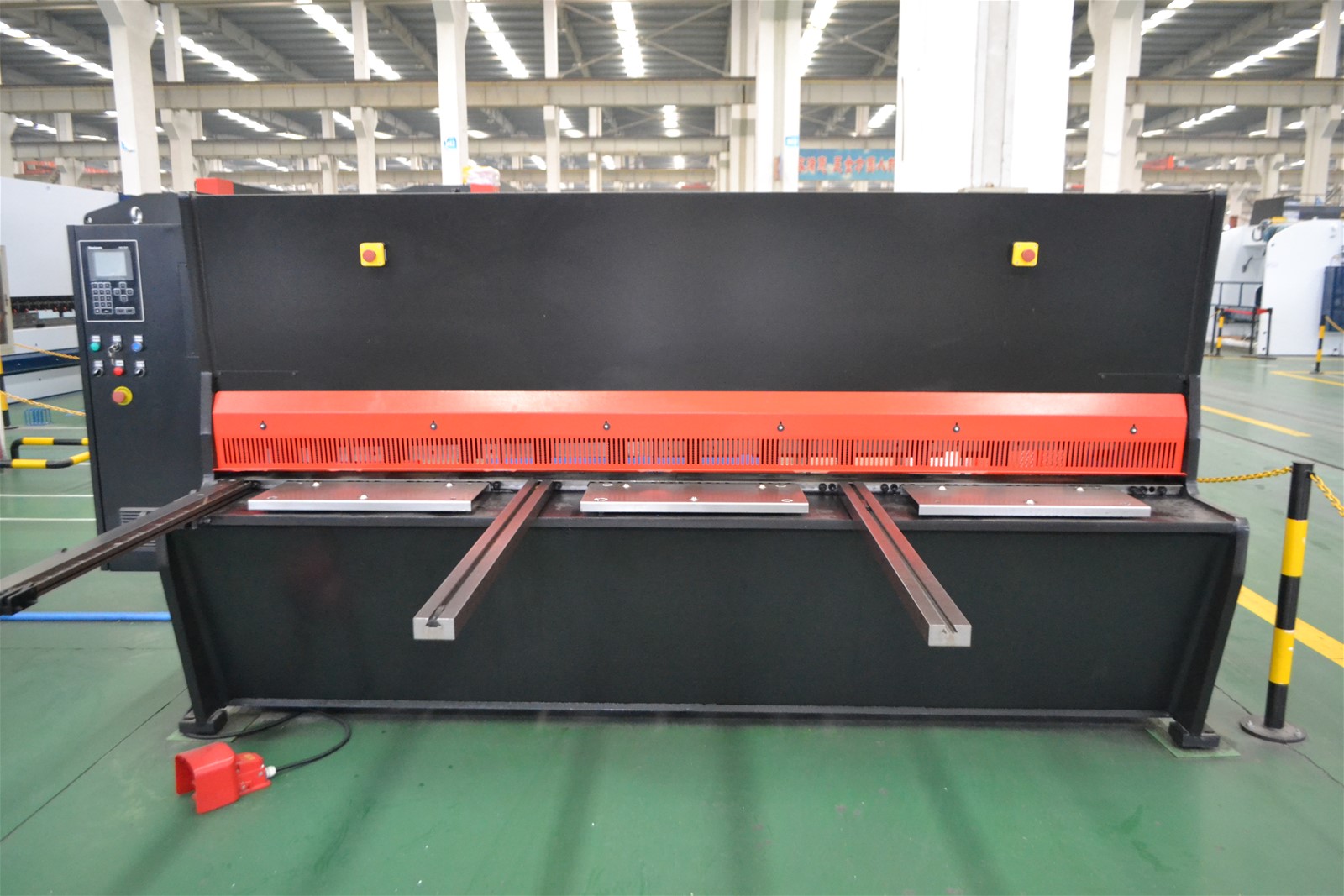

1.The front view

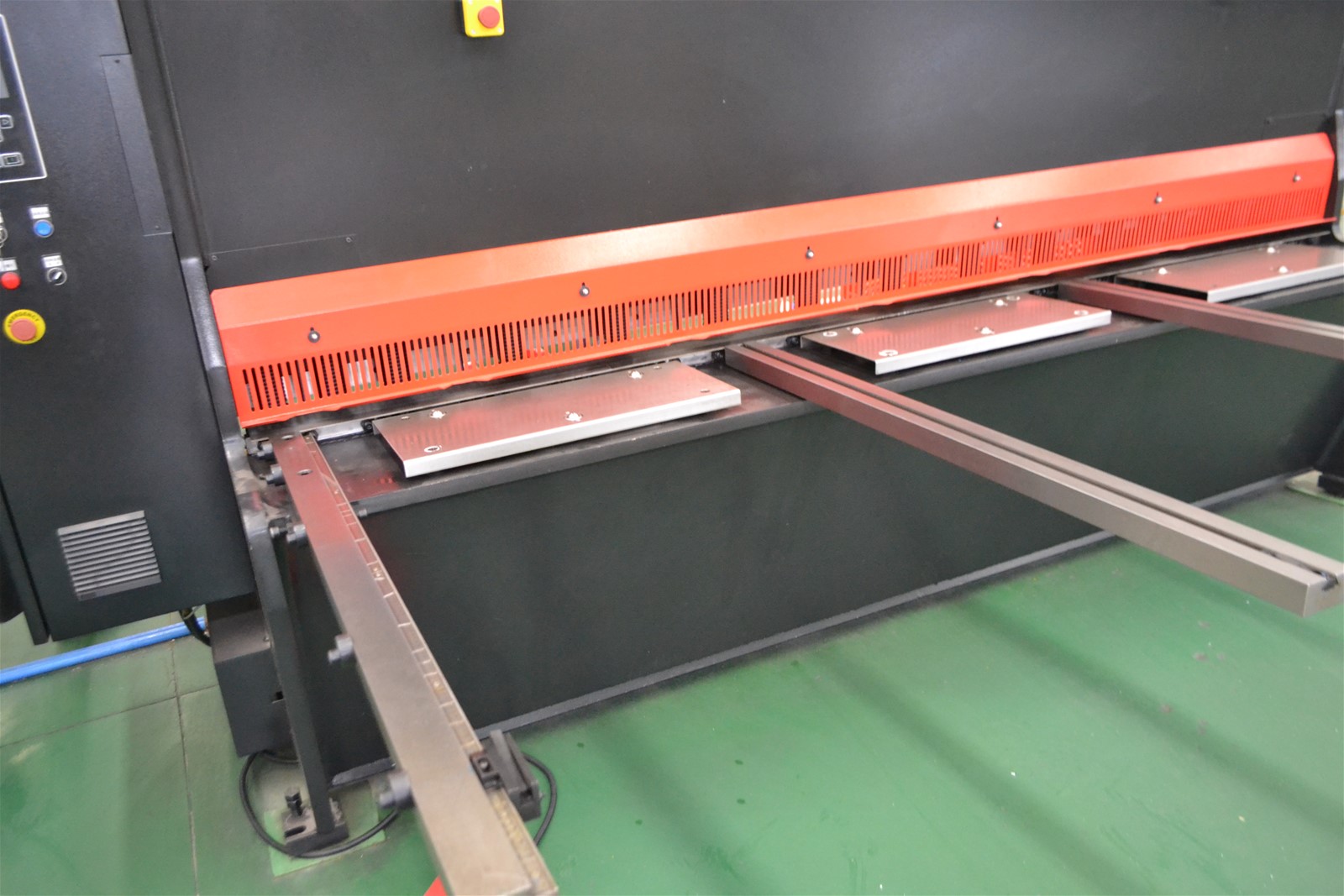

2.The shear angle and ram stroke picture

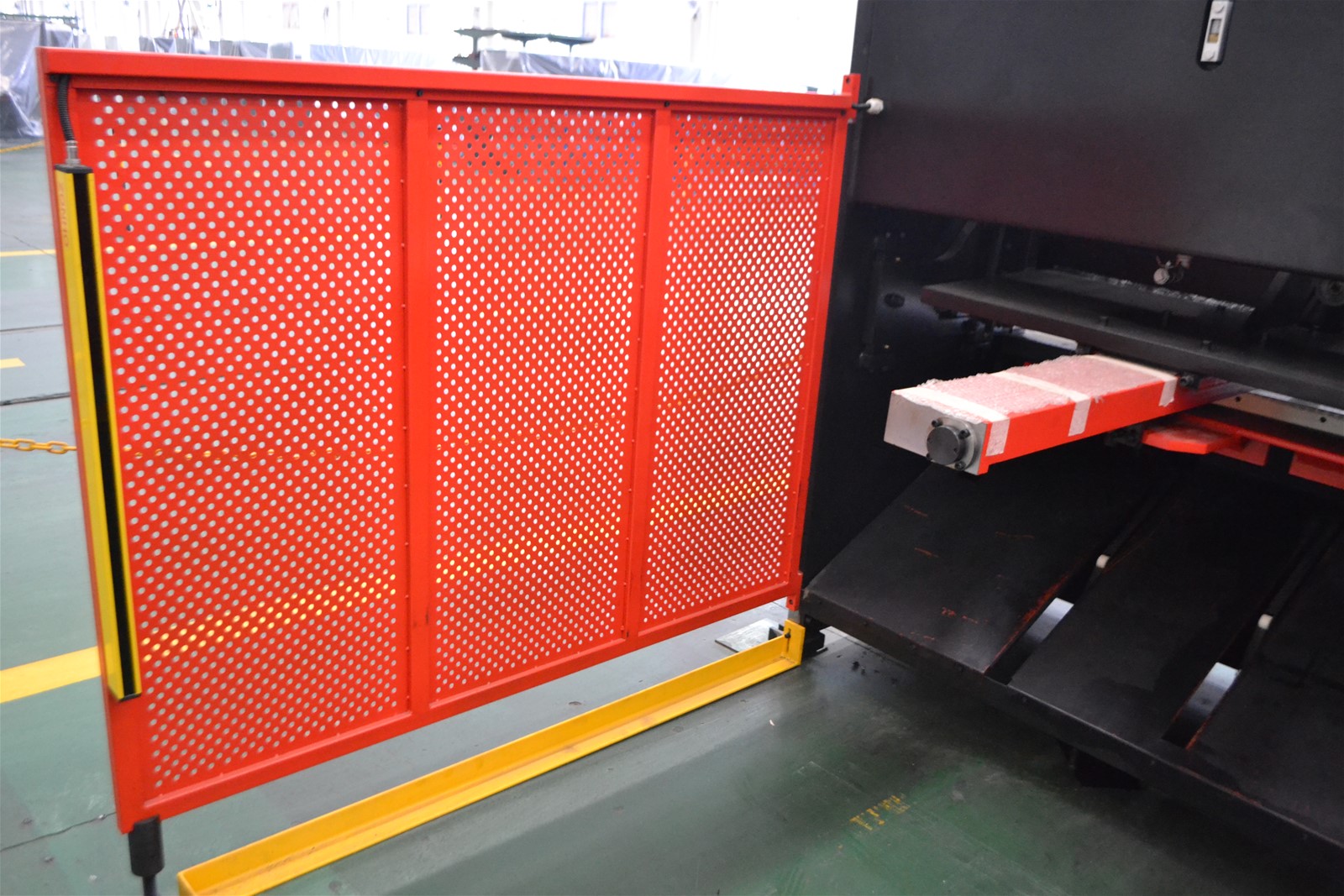

3.The protective guard picture

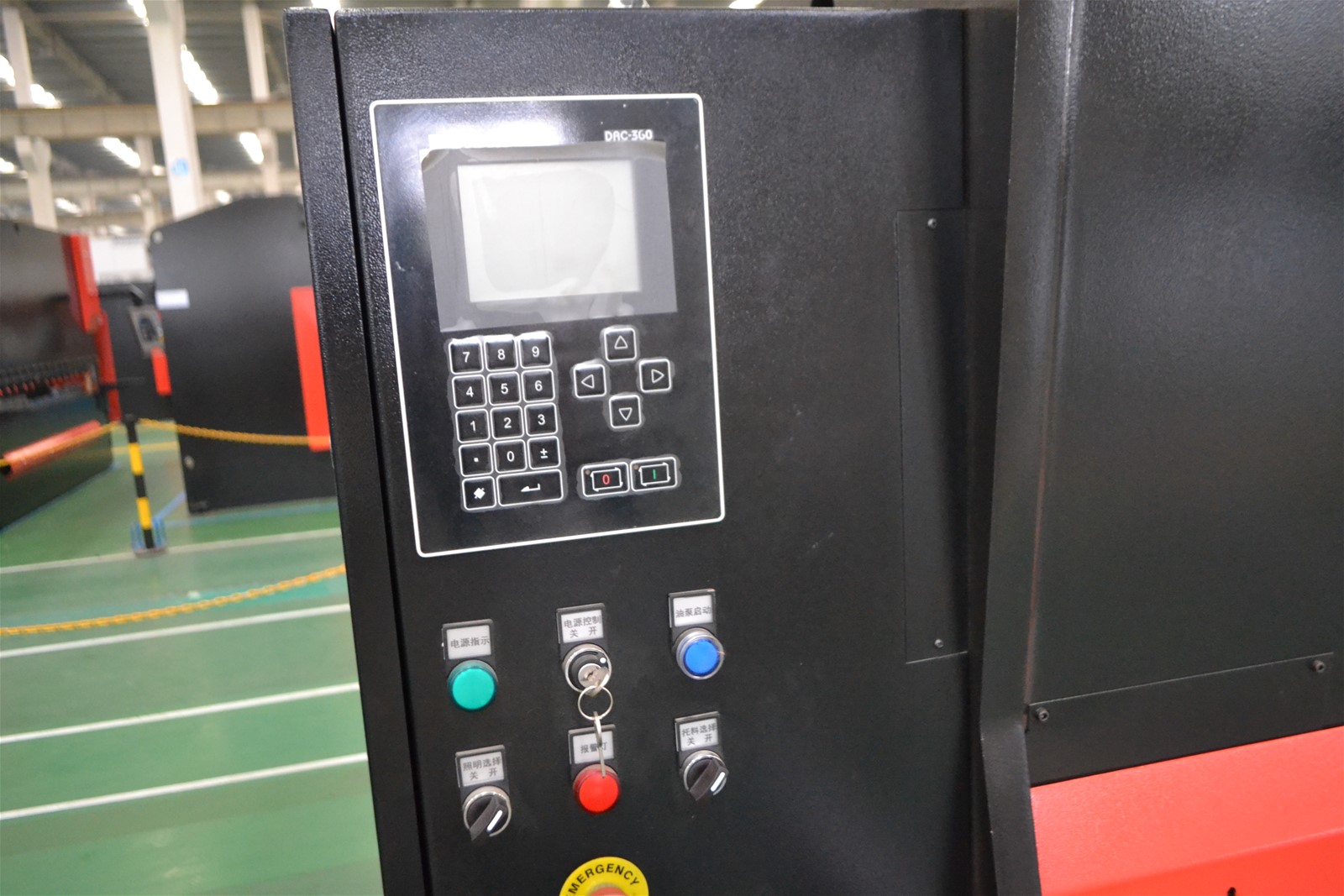

4.The CNC control system picture
Performance features:
| Type | MS8-4x2500 |
| Thickness(mm) | 4 |
| Width(mm) | 2500 |
| Cutting Angel |
1()30' |
| Material Intension(kn/cm) | <=450 |
| Rear stopper adjustment(mm) | 20-500 |
| Travel times(Times/min) | 10 |
| Hold downs(Pcs) | 12 |
| Main power(kw) | 5.5 |
| Weight(kg) | 3800 |
1.standard equipment:
-CNC control system
-Powered Back guage X-axis
-DELTA Inverter controlled back guage
-HIWIN Ball screws & Polished rod with 0,05mm accuracy
-Squaring Arm and Front Support Arms
-Germany Bosch-Rexroth Hydraulic
-Germany EMB Tubing connector
-Germany Siemens Main Motor
-Telemecanique/Schneider Electrics
-Hydraulic & Electrical overload protection
-Cutting Line Illumination and wire for shadow line cutting
-Top blade with two cutting edges and bottom blade with four cutting edges(6CrW2Si)
2.safety equipment:
-safety standards(2006/42/EC)
-1.EN 12622:2009+A1:2013
-2.EN ISO 12100:2010
-3.EN 60204-1:2006+A1:2009
-Front finger protection(safety light curtain)
-South Korea Kacon Foot Switch(Level 4 of safety)
-Back metal safe fence with CE standards
-Safety relay with Monitor the pedal switch and safety protection
Main pictures
1.The front view
2.The shear angle and ram stroke picture
3.The protective guard picture
4.The CNC control system picture
Performance features:
-
DAC360/DAC350/DAC362S system precisely controls backguage,shearing strokes,cutting angle and clearance between the upper and lower blades.
-
The ram stroke can be adjusted automatically to realize fast and accurate shearing of short workpieces and improve productivily.
-
The high speed and large stroke backguage is driven by linear guideway and ballscrew and the speed is up to 250mm/s and the stroke is up to 1000mm.
-
The system can automatically adjust the clearance between upper and lower blades for different material of different thickness to improve shearing quality.
-
