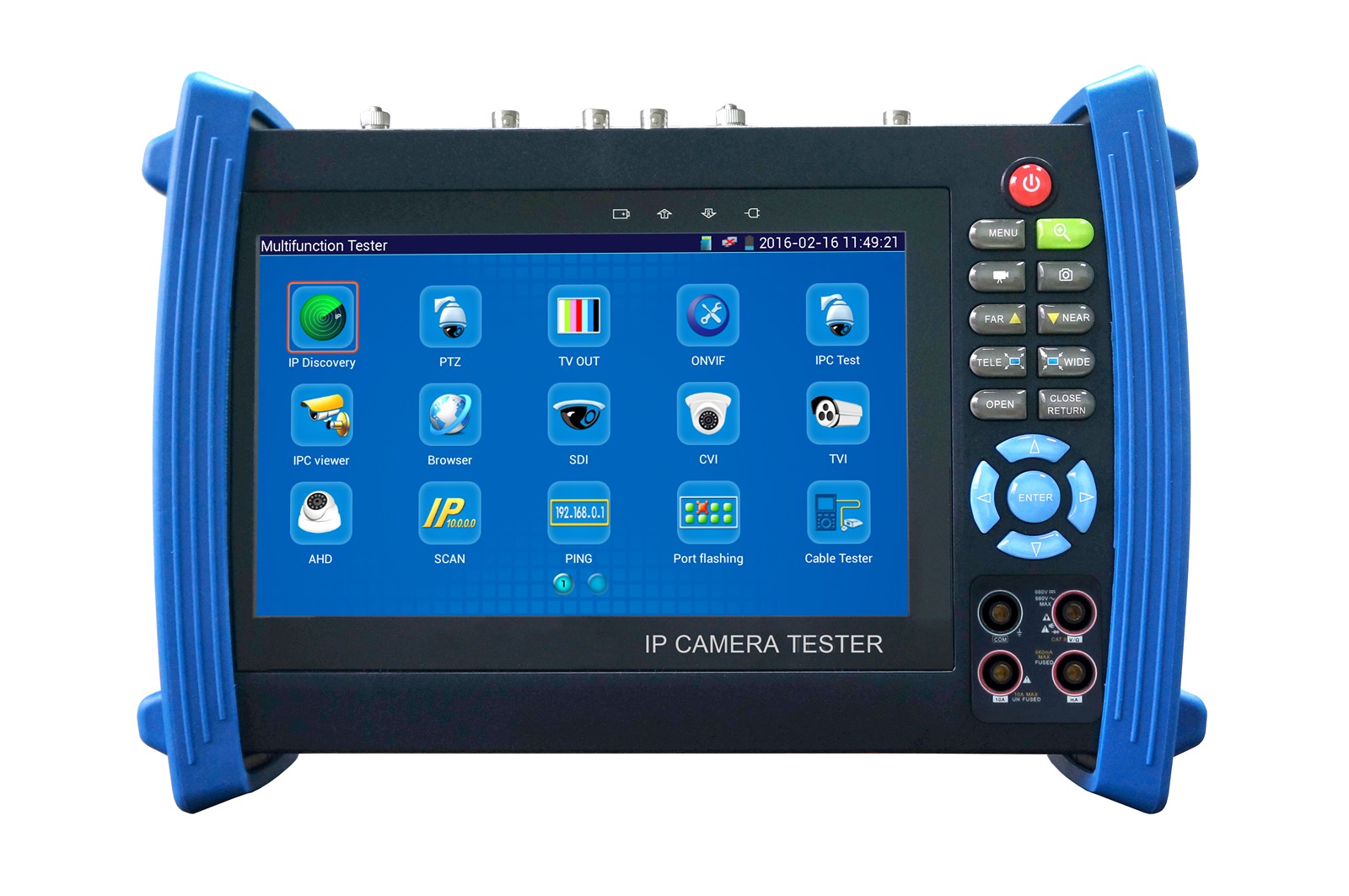

Model

IPC-8600[*]models optional

Display

7 inch Capacitive touch screen , resolution 1280(RGB)x 800

Network port

10/100M auto adapt,RJ45

IP discovery

auto-scan the whole network segment camera IP

Rapid ONVIF

search camera quickly, auto log in and display image from the camera, activate Hikvision camera

Hik test tool

activate Hikvision camera, Camera image test, support modify IP, user name and password etc parameters .

DH test tool

Dahua Camera image test, support modify IP, user name and password etc parameters

SDI camera test (Optional) *

1 channel SDI IN BNC Input ,Support resolution 720p 60fps / 1080p 60fps /1080i 60fps

TVI camera test *(Optional) *

Support resolution 720p 25fps,30fps,50fps,60fps / 1080P 25fps,30fps , camera OSD menu control over coaxial cable

CVI camera test (Optional) *

Support resolution 720p 25fps,30fps,50fps,60fps / 1080P 25fps,30fps , camera OSD menu control over coaxial cable

AHD camera test* (Optional) *

Support AHD2.0, Support resolution 1080P 25fps,30fps /720p 25fps,30fps , camera OSD menu control over coaxial cable

WIFI

Built in WIFI, speeds150M, display wireless camera image

IP camera type

ONVIF, ACTi, Dahua IPC-HFW2100P, Hikvision,DS-2CD864-E13, Samsung SNZ-5200, Tiandy TD-NC9200S2, Kodak IPC120L, Honeywell HICC-2300T, Aipu-waton IP5000-BC-13MP/IRS06-13MP, fine-Tida IPC, FSJ BY-1080Q, WEISKY IPC camera etc. Customized welcome

Video input/output

1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto )

Video Level Test:

Video signals measured in IRE or mV

Video level meter

PEAK video signal level, SYNC signal level, Color bar chroma level measurement

Zoom Image

Support Analog camera and IP camera image zoom /move

Snapshot,

Video record and   playback

Image Screen snapshot, record ,save ,view and record and play back

HDMI output

1 channel HDMI output, support 1920*1080P

12V/2Apower output

Output DC12V/2A power for camera

5V power output

5V 2A power output, as a Power bank

PoE power output

48V PoE power output, Max power 24W

Audio test

1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone

PTZ control

Support RS232/RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc

color bar generator

Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color )

UTP Cable tester

Test UTP cable connection status and display on the screen. Read the number on the screen

Data monitor

Captures and analyzes the command data from controlling device, also can send hexadecimal

Network test

IP address scan, link test, Ping test, Quickly search the connection IP camera and other device's IP address

Cable scan

Search the cable by the audio signal

PoE test

Measurement POE switch or PSE power supply voltage and cable connection status

Digital Multi-meter (optional)*

AC/DC Voltage, AC/DC current, Resistance, Capacitance, Data hold, Relative measurement, Continuity testing . Testing speed: 3 times/ seconds, Data range -6600～+6600.

Optical power meter (Optional)*

Power range(dBm) : -70～+10dBm

Visual fault locator (optional)*

Test fiber's bending and breakage ( SM and MM fiber)

TDR cable test (optional) *

Cable length and short circuit measurement(BNC cable, Coaxial cable, Cat5/6, telephone cable)

POWER

External power supply

DC 12V 2A

Battery

Built-in 7.4V Lithium polymer battery ,6500mAh

Rechargeable

After charging 7~8 hours, normal working time 16 hours

Parameter

Operation setting

Capacitive touch screen, OSD menu, Chinese/English

Auto off

1-30 (mins)

General

Working Temperature

-10℃---+50℃

Working Humidity

30%-90%

Dimension/Weight

231mm x 172mm x 52mm / 1.26Kg
