| Model Number: | IPC-9800ADHS |
|---|---|
| Place of Origin: | China (Mainland) |
| Display screen: | 7 inch touch screen 1280x800 |
| Feature 1: | IP discovery |
| Feature 2: | Rapid Onvif |
| Feature 3: | PoE power/Voltage |
| Feature 4: | bulit in WIFI |
| Feature 5: | Cable test |
| Feature 6: | Video/Audio test |
| Feature 7: | OEM is welcome |
| Feature 9: | 80 ip camera protocols |
| Options 1: | AHD/CVI/TVI/SDI camera test |
Quick Details
Specifications

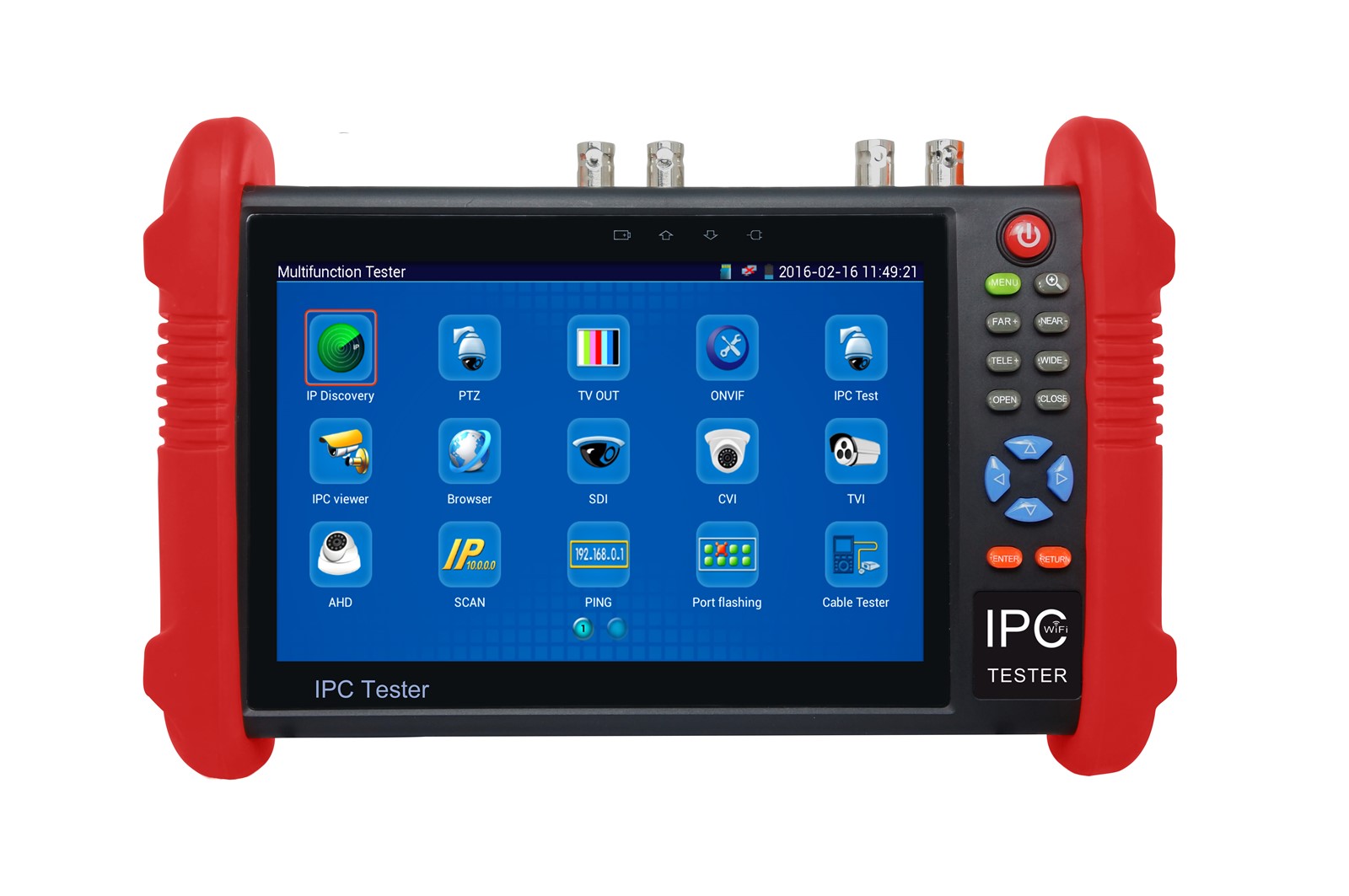

Product Picture
Specification of this tester
Specification of this tester
" *" Sign means the function optional
|
Model |
IPC-9800 ADHS |
|
|
Display |
7 inch IPS TFT-LCD test monitor with capacitive touch screen ,1280*800 resolution |
|
|
Network port |
10/100M auto adapt,RJ45 |
|
|
IP discovery |
auto-scan the whole network segment camera IP |
|
|
Rapid ONVIF |
search camera quickly, auto log in and display image from the camera, activate Hikvision camera |
|
|
Hik test tool |
activate Hikvision camera, Camera image test, support modify IP, user name and password etc parameters . |
|
|
DH test tool |
Dahua Camera image test, support modify IP, user name and password etc parameters |
|
|
HD SDI |
1 channel SDI IN BNC Input ,Support resolution 720p 60fps / 1080p 60fps /1080i 60fps |
|
|
HD TVI |
720p 25fps,30fps,50fps,60fps / 1080P 25fps,30fps , camera OSD menu control over coaxial cable |
|
|
HD CVI |
720p 25fps,30fps,50fps,60fps / 1080P 25fps,30fps , camera OSD menu control over coaxial cable |
|
|
HD AHD |
AHD2.0, Support resolution 1080P 25fps,30fps /720p 25fps,30fps , camera OSD menu control over coaxial cable |
|
|
WIFI |
Built in WIFI,speeds150M,display wireless camera image |
|
|
IP camera type |
Customized camera protocols welcome. ACTi,Dahua IPC-HFW2100P,Hikvision,DS-2CD864-E13,Samsung SNZ-5200, Tiandy TD-NC9200S2,Kodak IPC120L,Honeywell HICC-2300T, IPC,FSJ BY-1080Q,WEISKY IPC camera etc. |
|
|
Video input/output |
1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto ) |
|
|
Video Level Test |
Video signals measured in IRE or mV |
|
|
Zoom Image |
Support Analog camera and IP camera image zoom /move |
|
|
Snapshot ,video record |
Image Screen snapshot, record ,save ,view and record and play back |
|
|
HDMI output |
1 channel HDMI output,support 1920*1080P |
|
|
12V/2Apower output |
Output DC12V/2A power for camera |
|
|
5V power output |
5V 2A power output,as a Power bank |
|
|
PoE power output |
48V PoE power output,Max power 24W |
|
|
Audio test |
1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone |
|
|
PTZ controller |
RS485 control, Baud 600-115200bps, |
|
|
Color bar generator |
Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color ) |
|
|
UTP Cable tester |
Test UTP cable connection status and display on the screen. Read the number on the screen |
|
|
Data monitor |
Captures and analyzes the command data from controlling device, also can send hexadecimal |
|
|
Network test |
IP address scan, link test, Ping test, Quickly search the connection IP camera and other device's IP address |
|
|
PoE test |
Measurement POE switch or PSE power supply voltage and cable connection status |
|
|
POWER |
||
|
External power supply |
DC 12V 2A |
|
|
Battery |
Built-in 5800mAh |
|
|
Rechargeable |
After charging 7~8 hours, normal working time 10 hours |
|
|
Parameter |
||
|
Operation setting |
Capacitive touch screen, OSD menu,Chinese/English |
|
|
Auto off |
1-30 (mins) |
|
|
General |
||
|
Working Temperature |
-10℃---+50℃ |
|
|
Working Humidity |
30%-90% |
|
|
Dimension/Weight |
231mm x 172mm x 52mm / 1.26Kg |
|
