Portable Firefighting Hydraulic Door Opener Introduction

1-Material: Base angle taken use of special steel manufactured. Can provide great opening force;
2-Function: Open Door & Gate etc. when emergency happened;

3-Applications:accident rescue, especially suitable for residential and commercial buildings, hotels & fire rescue to open the locked door in time.



Features of Portable Firefighting Hydraulic Door Opener



1. Provides 10 tons collapsing force for opening the door; working with both big and small manual pump with self-locking functions;
2. Safe to work in the explosive place, no spark during operation;
3. Mini sized, easy to bring, can be stored in the metal cabinet, implementing rapid mobility aid.



Portable Firefighting Hydraulic Door Opener Parameters

Model	ZM-130/100
Rated Working Pressure	63MPa(630bar/9135PSI)
Max. Opening Force	100KN(10Tons/22477Lbs)
Closing Length	≤228mm
Opening Height	120mm
Times of Hand Pump Beating When Start without Load	≤20times
Closing Time Without Load(Free Fall)	≤50s
Weight	≤5.5kg
Dimension(L*W*H)	122*100*228mm

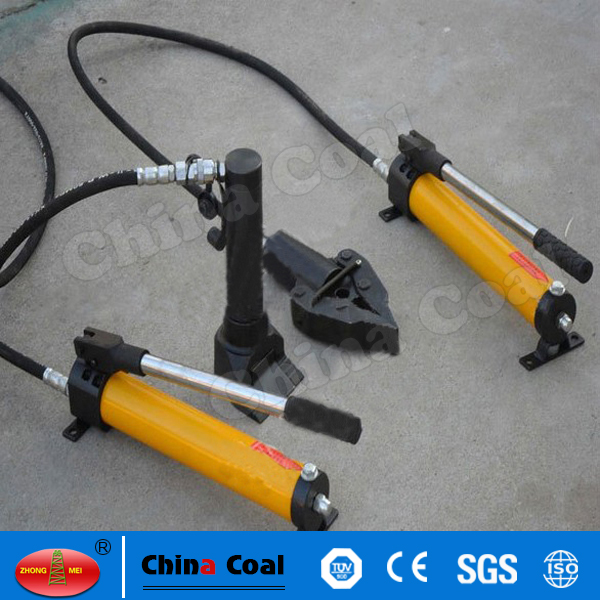

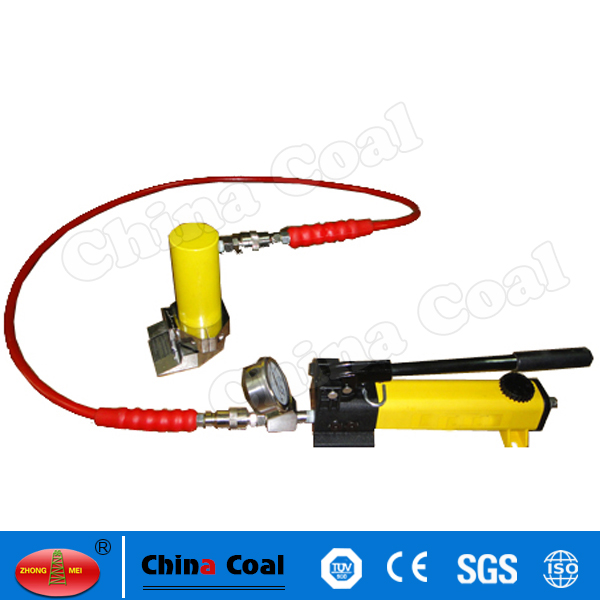

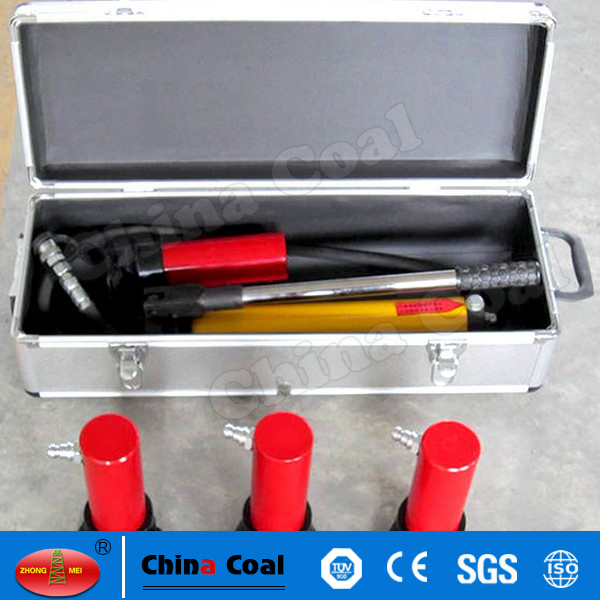

 Portable Firefighting Hydraulic Door Opener Photos
