Lift Rescue Tripod for Fire Fighting Introduction

The Lift Rescue Tripod for Fire Fighting is made up of frame body, winch, pulley, ring protection chain and mainly used for rescue operations in high altitude, cliff and confined space, such as underground pipe, shaft, cesspit, closed container etc. Widely used by firefighting, municipal, administration, mining etc rescue institution.
Lift Rescue Tripod for Fire Fighting Application
1.Applicable to the operation of high places, cliff and confined spaces, such as pit slots, shafts, drainages, cellars and sewage wells, sewer etc.
2.Widely used in fire fighting, municipal, rescue agencies.
Lift Rescue Tripod for Fire Fighting Features
1. Consist of body,slings,winch,ring-shaped protection chain etc.
2. Be made of high strength alloy, light weight,high toughness,high safety factor;
3. The design of scalable stabilizer blade and hand-lock is applied to different operating radius, height requirements;
4. The unique anti-skid design of footings equipped with ring-shaped protection chain, stronger and safer;
5. The winch is equipped with up and down self-locking devices, ensure the safety of the sling.
6. The stainless steel wire ropes of the sling with good flexibility,corrosion resistance;
7. The scalable stabilizer blade is made of high strength light weight alloy,the safety factor is greater than 10, the footings are equipped with ring-shaped protection chain.

Lift Rescue Tripod for Fire Fighting Parameter



Model	TRIPOD EVO
Rated Load	1100 lbs	500kg
Folded Length	87.75in	2.55mm
Opening Length	144.3in	3.7m
Handle Force Needed	45 lbs	200N
Winch Mechanical Principles	12:1
Wire Length	1170in	30m
Weight	198 lbs	90kg
Dimension(L*W*H)	87.75*11.7*11.7in	2550*300*300mm
Weight of winch	66 lbs	30kg

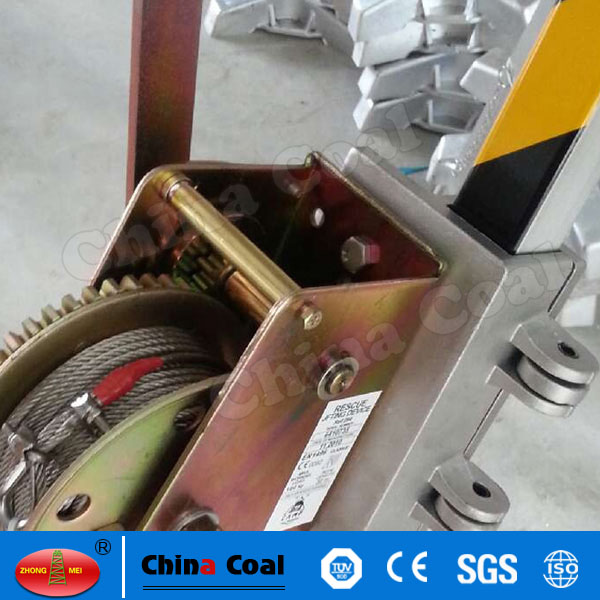

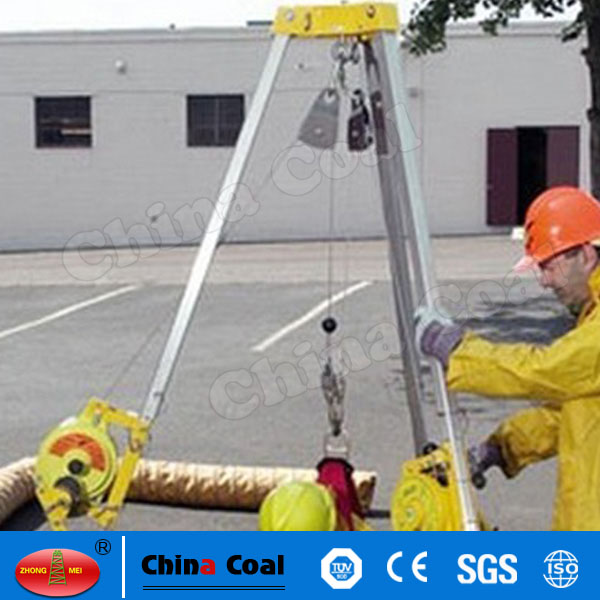

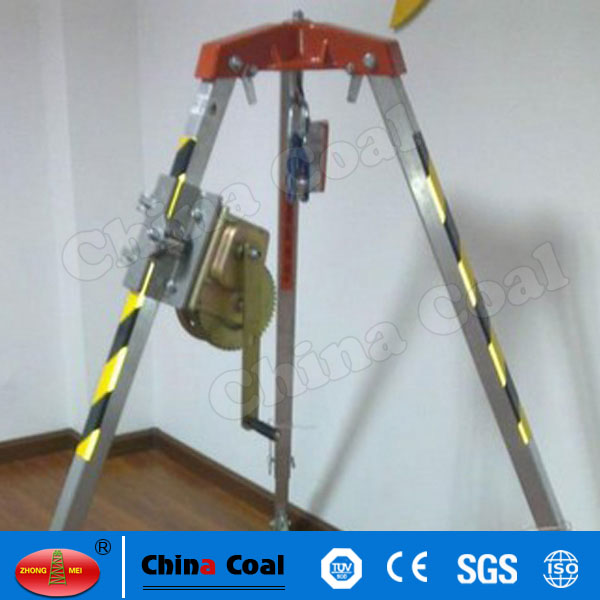

Lift Rescue Tripod for Fire Fighting Photos
