| Model Number: | 15NDL100 |
|---|---|
| Brand Name: | DY |
| Place of Origin: | China (Mainland) |
| Application: | stage passive |
| Type: | 15 inch neodymium speaker |
Quick Details
Specifications

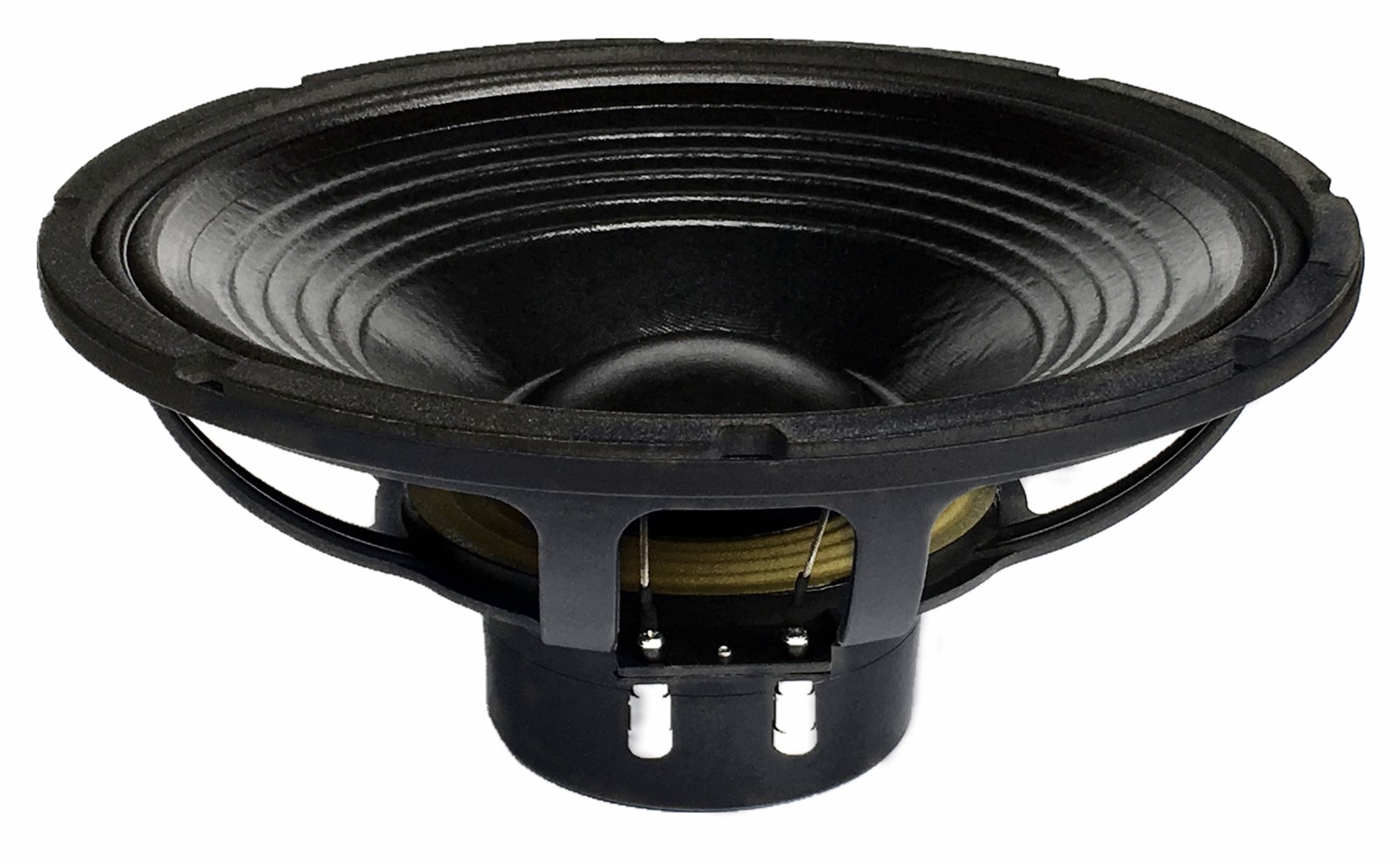

Acoustic Replacement 15 Inch Neodymium speaker Driver De Audio
INTRODUCTION:

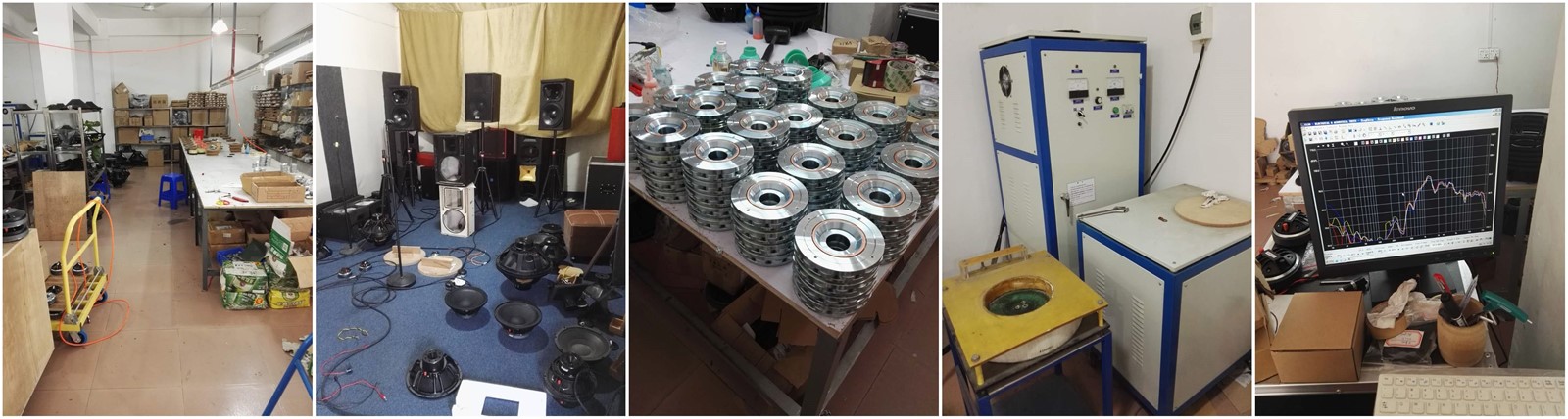

We are a PA speaker factory in Guangzhou,China. We make speakers, Ferrite and Neodynium.
We have experience in PA speaker manufacturing for more than 14 years.
Our speakers are very competitive with nice quality but favorable price.however, we are only using good quality materials.We keep strict control on the cost and that is why we could give you good price.
Lead time:20-25 days after order confirmation, which depending on the order quantity.
We also have HF speakers. If you are interested, please email me.
Specification
| SPECIFICATIONS | ||||
| General Specifications | ||||
| Nominal Diameter | 380/15 | Mm/inch | ||
| Rated Impedance | 8 | ohm | ||
| Nominal Power handling | 500 | Watts | ||
| Program Power | 1000 | Watts | ||
| Sensitivity(1w/1m) | 98 | dB | ||
| Frequency Range | 48-2.5k | Hz | ||
| Voice Coil Diameter | 100 | mm | ||
| Voice Coil Material | Aluminum | |||
| Voice Coil Winding Depth | 20 | mm | ||
| Magnet gap depth | 12 | mm | ||
| Basket | Cast Aluminum | |||
| Flux Density | 1.2 | T | ||
| Magnet Material | Neodymium N38H | |||
| Thiele-Small Parameters | ||||
| Fs | 48 | Hz | ||
| Re | 5.3 | ohm | ||
| Qms | 5.2 | |||
| Qes | 0.32 | |||
| Qts | 0.299 | |||
| Vas | 116 | Liters | ||
| Mms | 100 | gr | ||
| Cms | 105 | Mm/N | ||
| No | 4.1 | % | ||
| Bl | 22.7 | Tm | ||
| Sd | 0.88 | m2 | ||
| Xmax | 7 | mm | ||
| Mounting Information | ||||
| Overall Diameter | 389 | mm | ||
| Bolt Circle Diameter | 371 | mm | ||
| both Hole Diameter | 5.5*8 | mm | ||
| Baffle Cutout Diameter | 351 | mm | ||
| Overall Depth | 172 | mm | ||
| Net weight | 6 | kg | ||
| Shipping weight | 7.1 | kg | ||
| Shipping Box | 410*410*200 | mm | ||
