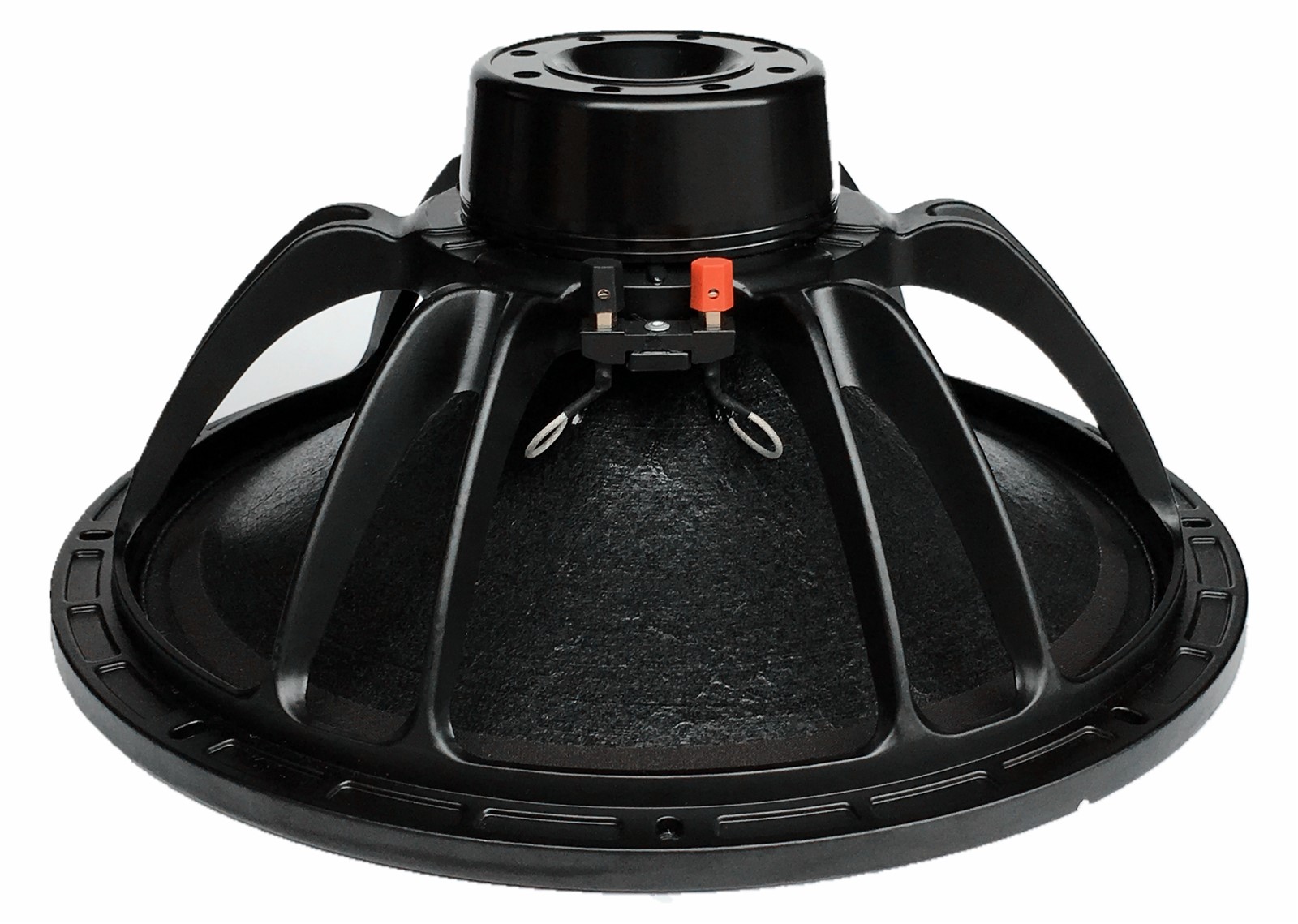

15NDL76-PRO Audio Best Acoustic Component Neodymium Speakers in 15 Inch

INTRODUCTION:

We are a PA speaker factory in Guangzhou,China. We make speakers, Ferrite and Neodynium.
We have experience in PA speaker manufacturing for more than 14 years.
Our speakers are very competitive with nice quality but favorable price, about 10-30% lower than other suppliers.However, we are only using good quality materials.We keep strict control on the cost and that is why we could give you good price.
Lead time:20-25 days after order confirmation, which depending on the order quantity.


 We also have HF speakers. If you are interested, please email me.



SPECIFICATIONS
General Specifications
Nominal Diameter			380/15	mm/inch
Rated Impedance			8	ohm
Nominal Power handling			400	Watts
Program Power			800	Watts
Sensitivity(1w/1m)			96.5	dB
Frequency Range			50-2.5k	Hz
Voice Coil Diameter			75.5	mm
Voice Coil Material			Aluminum
Voice Coil Winding Depth			18	mm
Magnet gap depth			10	mm
Basket			Cast Aluminum
Flux Density			1.2	T
Magnet Material			Neodymium N38H
Thiele-Small Parameters
Fs			58	Hz
Re			5.4	ohm
Qms			5.9
Qes			0.57
Qts			0.52
Vas			89	Liters
Mms			92	gr
Cms			81	mm/N
No			2.9	%
Bl			17.1	Tm
Sd			0.88	m2
Xmax			6	mm
Mounting Information
Overall Diameter			393	mm
Bolt Circle Diameter			373	mm
Both Hole Diameter			6.5*8	mm
Baffle Cutout Diameter			354	mm
Overall Depth			174	mm
Net weight			4.4	kg
Shipping weight			5.5	kg
Shipping Box			410*410*200	mm
