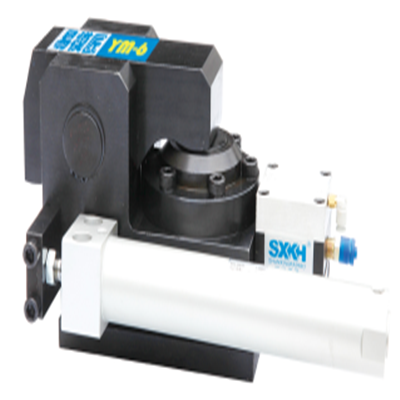

Product Name: Hydraulic Clamp

Introduction:

Their compact dimensions and flexible operation make hydraulic clamp units an ideal solution for semi or fully automatic die change on small and medium-size machines. They permit central operation and permanent clamping force monitoring and can be easily integrated in the machine control system.

Functions:
Three functions
Any workholding fixture must fulfil three basic functions:

a) position the component accurately.
b) support the component adequately.
c)clamp the component securely for machining.


Benifits:
There are many significant benefits with hydraulic clamping systems. The major advantage of hydraulic clamping is that it significantly reduces the load and unload times compared to conventional manual clamping. This results in higher capacity utilization on all types of machines. Hydraulic clamping also offers improved quality due to consistent and repeatable clamping forces being applied. Totally automatic operation is also possible with hydraulic clamping. Enerpac can also design and supply special production automation products if our standard range does not meet your requirements.

Spefications:

Specification	L	J	Q	T	U	M	RC	2T	2P	H(standard mold plate)mm
YM2-A	80	18	65	48	40	18	1/8	M5*35	1/8	25
YM4-A	80	23	72	45	47	18	1/8	M5*35	1/8	30
YM6-L-A	119	28	92	69	56	24	1/4	M8*45	1/8	30
YM10-L-A	119	30	100	75	64	24	1/4	M8*45	1/8	40
YM16-L-A	137	30	145	85	74	65	1/4	M10*55	1/8	50
YM25-L-A	160	30	163	97	93	70	1/4	M10*70	1/4	50
YM50-L-A	180	30	235	140	129	92	1/4	M16*85	1/4	60
