Lanphan Hypalon rubber flexible bellow also called CSM rubber flexible bellow, it's main feature that it can be used under constant 120.In the high temperature volatility medium, like 40% Chromic acid, nitric acid, 30% hydrogen peroxide, etc, the stability is higher. Hypalon rubber can be widely used for bLeaching tower storage tanks, chromic acid tank, tankers, sodium hypochlorite reaction tower and oxidation of drugs and other equipment tower.

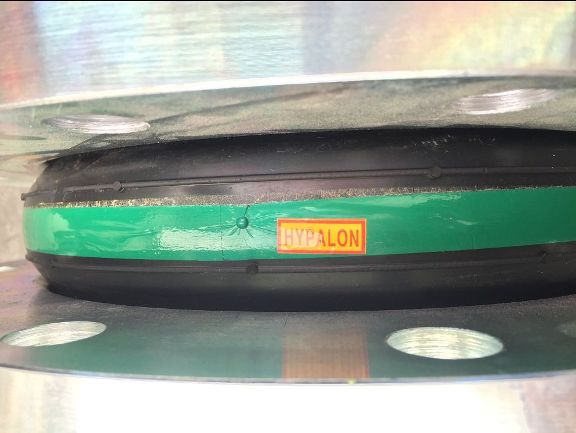

in order to distinguish the rubber easily, some compan will add color code on the surface of rubber bellows and after vulcanization, it will be long time pasted on the surface. Hypalon's color is green, EPDM's color is red, NBR's color is yellow.

If there are two kinds of rubber, there will be two color codes.

DN Diameter		FF Length (mm)	Axis displacement		Radial displacement	Deflexion Displacement
mm	inch		Extension	Compression
32	1?	90/130/152	6	10	9	7.5
40	1?	95/130/152	7	10	9	7.5
50	2	105/130/152	7	10	10	7.5
65	2?	115/130/152	7	13	11	7.5
80	3	135/152	8	15	12	7.5
100	4	130/150	10	19	13	7.5
125	5	130/150/165	12	19	13	7.5
150	6	130/150/180	12	20	14	7.5
200	8	130/150/210	16	25	22	7.5
250	10	130/150/200	16	25	22	7.5
300	12	245	16	25	22	7.5
350	14	255	16	25	22	7.5
400	16	255	16	25	22	7.5
450	18	255	16	25	22	7.5
500	20	255	16	25	22	7.5
600	24	260	16	25	22	7.5
700	28	260	16	25	22	7.5
750	30	260
800	32	260	16	25	22	7.5
900	36	260	16	25	22	7.5
1000	40	260	16	25	22	7.5
1100	44	300				7.5
1200	48	300	16	25	24	7.5
