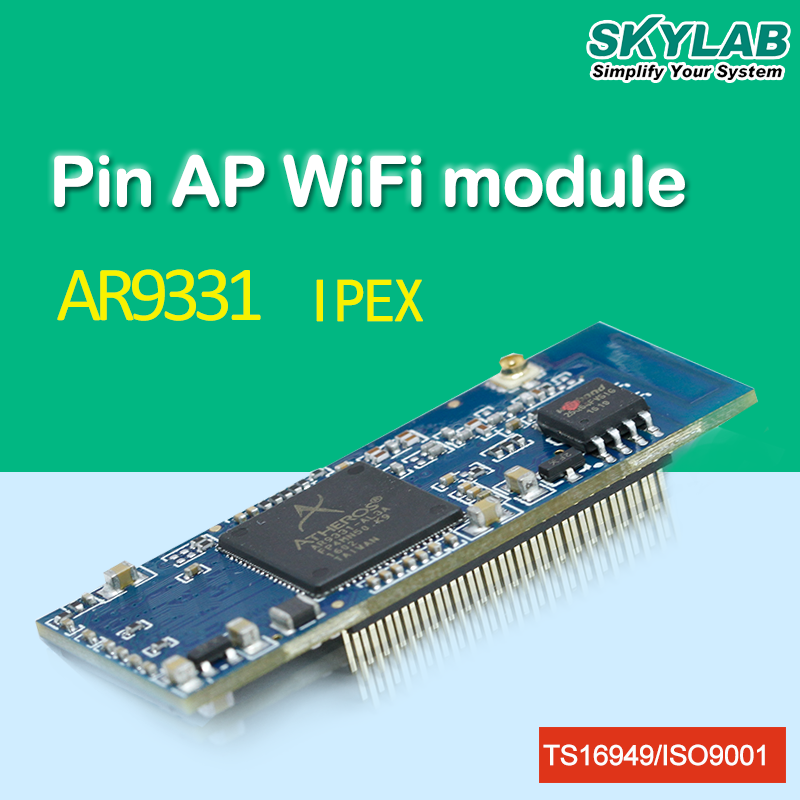

SKW71 Description
The module SKW71 compliant to 802.11 b/g/n Wi-Fi Solution for low power,low-cost,and highly integrated AP and consumer electronic devices, the module requiring only a external 3.3V power supply and connection to antenna.
The module based on the single chip AR9331 which integrates an 802.11n 1x1 MAC/BB/radio with internal PA and LNA. It supports 802.11n operations up to 72 Mbps for 20 MHz and 150 Mbps for 40 MHz channel respectively,and IEEE 802.11b/g data rates.The module support AP mode and client mode and repeater mode and UART wifi.

Features
Compliant to IEEE 802.11b/g/n 1x1WLANs
DDR2 memory up to 512Mb
Flash memory up to 64Mb
1LAN ports and 1 WAN port
High-speed UART
USB 2.0 host device mode support
Support AP/Client/Repeater mode
Support UART to wifi transparent
Security: WEP 64/128, WPA, WPA2,TKIP, AES, WAPI
RoHS compliance meets environment-friendly requirement.
45(L) x 17.3(W) x 9.0(H) mm small dimension

Applications
AP WIFI
UART WIFI
Repeater WIFI
IP TV
IP DVD(Internet VOD Player)
Set Top Box
Home Gateways
Gaming Consoles
DVR
