SKW72 Description

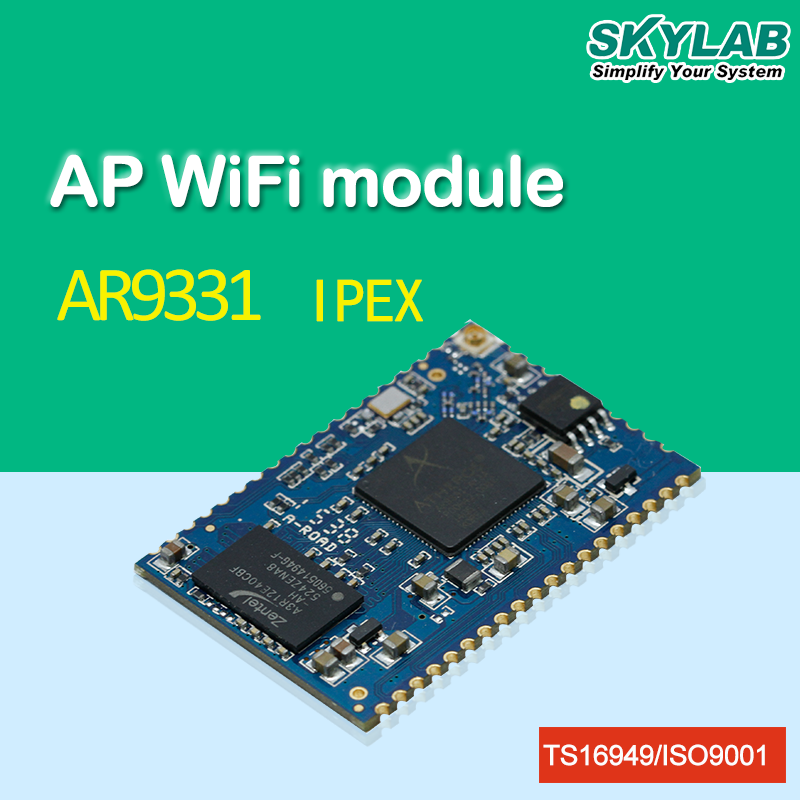

The module  SKW72  compliant to 802.11 b/g/n Wi-Fi Solution for low power, low-cost, and highly integrated AP and consumer electronic devices, the module requiring only a external 3.3V power supply and connection to antenna.

The module based on the single chip AR9331 which integrates an 802.11n 1x1 MAC/BB/radio with internal PA and LNA. It supports 802.11n operations up to 72 Mbps for 20 MHz and 150 Mbps for 40 MHz channel respectively, and IEEE 802.11b/g data rates . The module support AP mode and client mode and repeater mode and  UART wifi.



Features

n Compliant to IEEE 802.11b/g/n 1x1WLANs

n DDR2 memory up to 512Mb

n Flash memory up to 64Mb

n 4LAN ports and 1 WAN port

n High-speed UART

n USB 2.0 host device mode support

n Support AP/Client/Repeater mode

n Support UART to wifi transparent

n Security: WEP 64/128, WPA, WPA2, TKIP, AES, WAPI

n RoHS compliance meets

n environment-friendly requirement.

n 40.5(L) x 27.5(W) x 2.9(H) mm small  dimension



Applications

n AP WIFI

n UART WIFI

n Repeater WIFI

n IP TV

n IP DVD(Internet VOD Player)

n Set Top Box

n Home Gateways
