Established in 1953, ZENITH Maschinenfabrik GmbH (called ZENITH for short) is Germany-based concrete block machine manufacturer. Over the last 6 decades, ZENITH focuses on the R&D of non-pallet block producing technology and today ZENITH has become the worldwide leader in non-pallet block machine manufacturer. Our products include: Mobile Multilayer Machines, Mobile Single Pallet Machines, Stationary Multilayer Machines and Stationary Fully Automatic Production Line. Due to the highest quality and first class performance, more than 7,000 ZENITH customers all over the world will continuously benefit from ZENITH's expertise and know-how day after day, for more than 60 years.

In July of 2014, ZENITH Maschinenfabrik GmbH was acquired by Quangong Machinery (called QGM for short) and became the member of QGM Group. QGM Group is able to provide a wide range of products to our users, from simple automatic production line to fully automatic production line, from middle class to high class.

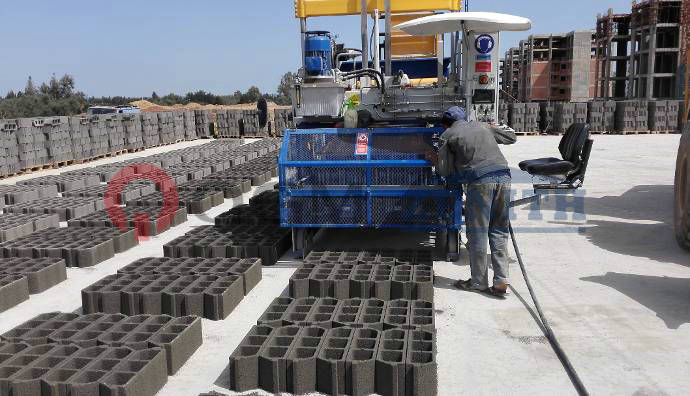

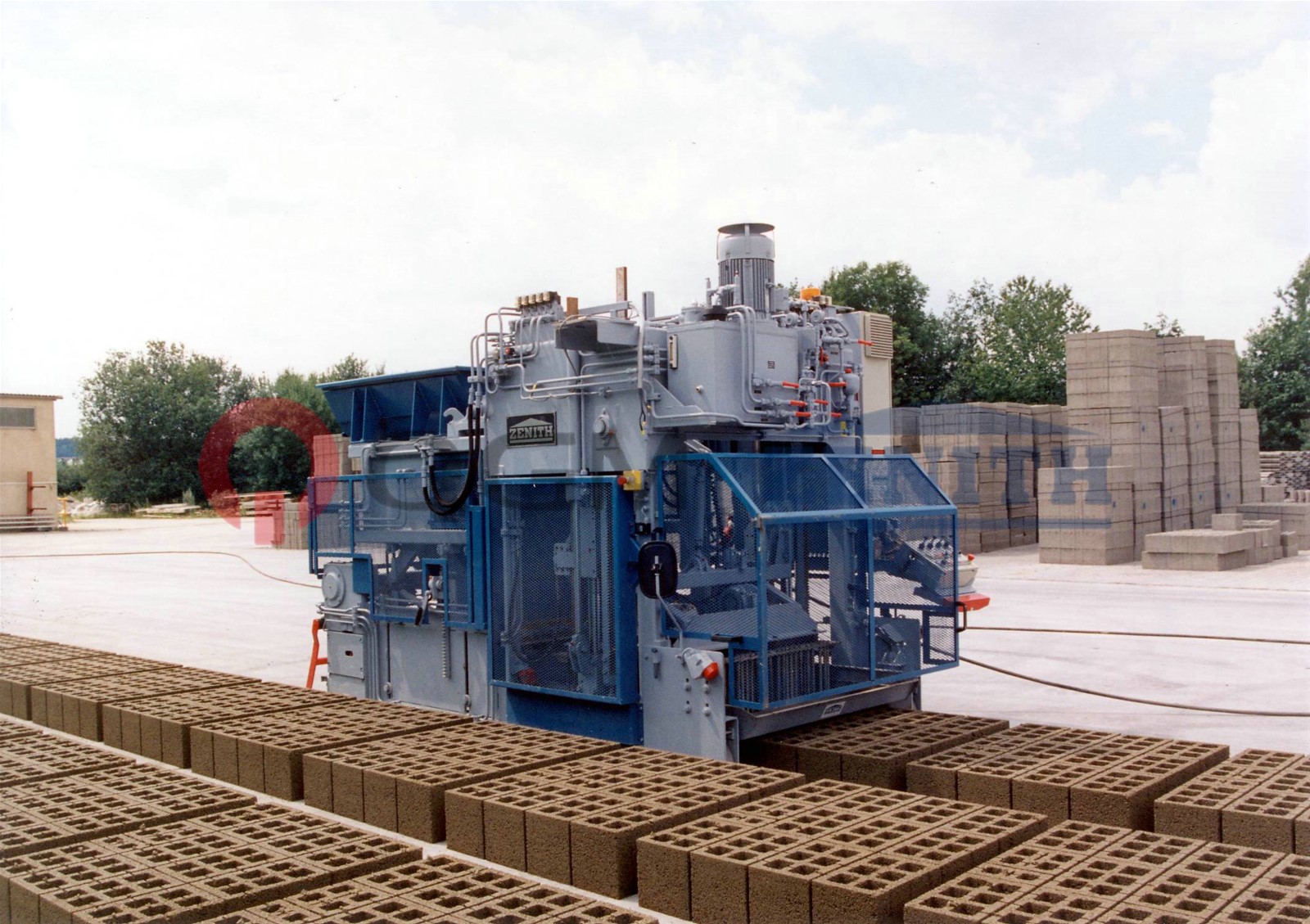

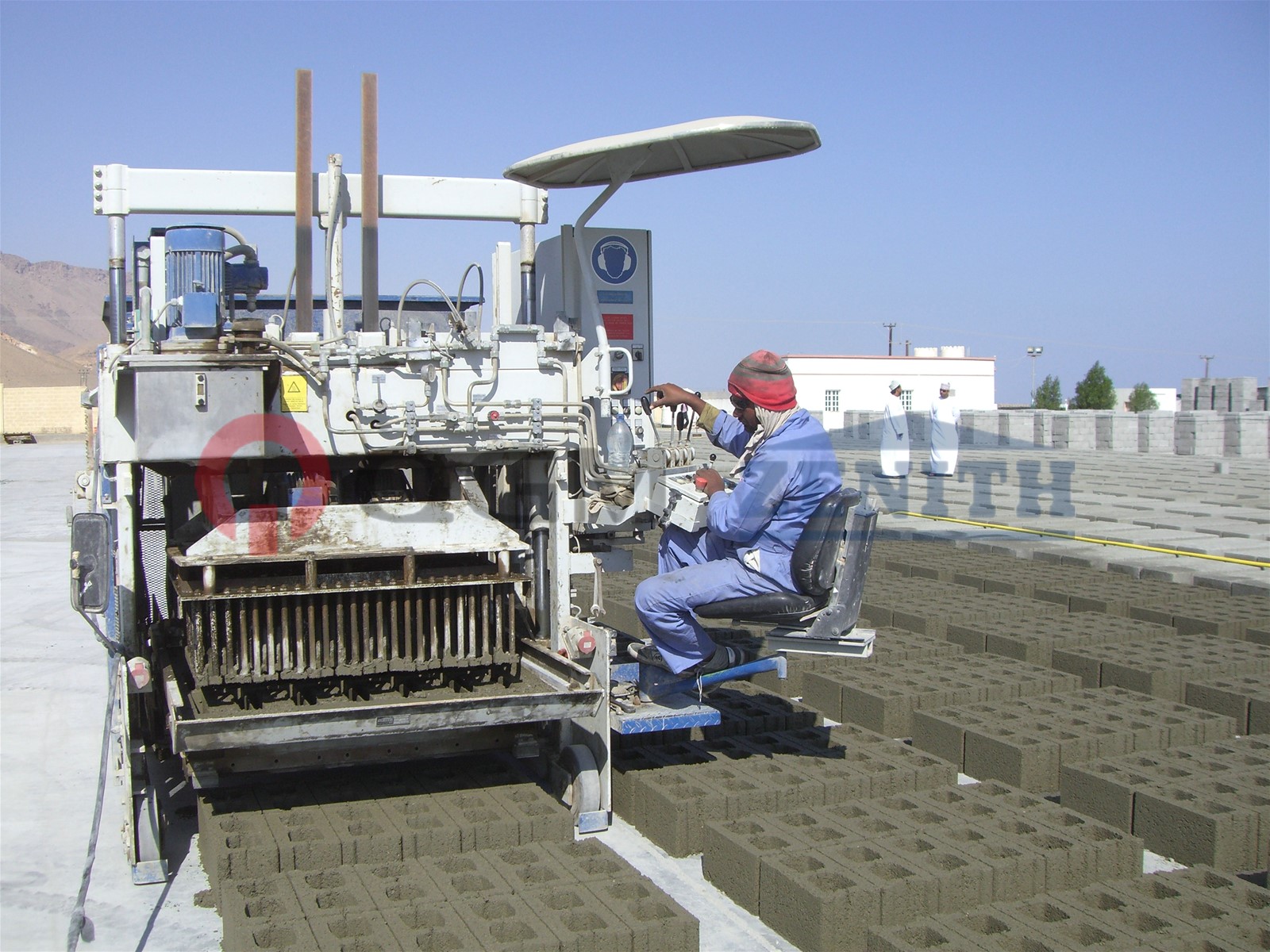

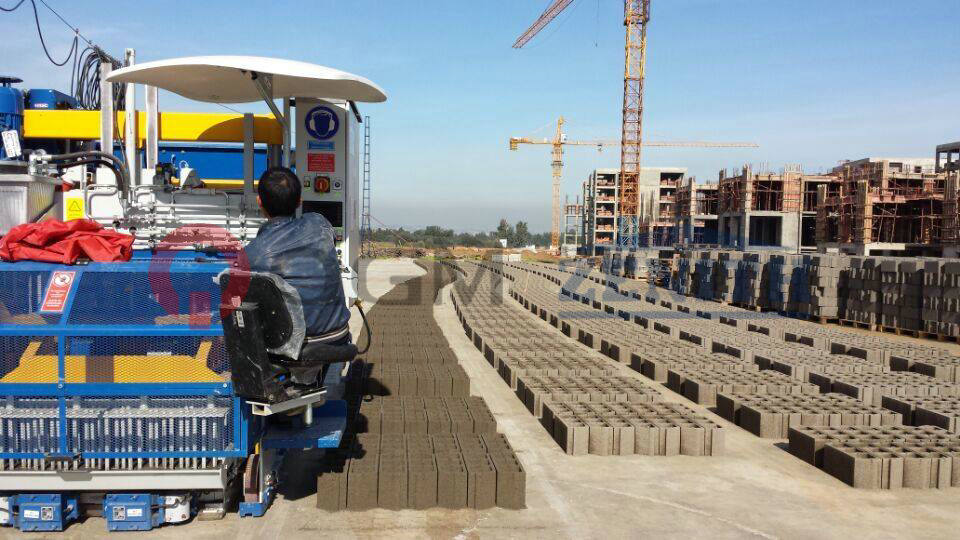

ZENITH Champion Model 913 Economical, Flexible and Dependable Block Making Machine

Hollows, solids, foundation and chimney blocks to mention only a few examples. ZENITH model 913, the ideal concrete block making machine for economical mass production of high quality concrete blocks. Available in semi and fully automatic execution. Outstanding performance in open area or buildings. Safe handling and well proven design principles guarantee efficient operation of ZENITH model 913, even still in decades. Different moulds are easily interchangeable. The machine produces concrete elements directly onto the ground, in lines – cycle by cycle. Running wheels of machine are outfitted with Vulkollan coating for protection of concrete floor. Equipped with hydraulic shunting wheel for turning of machine at end of production lines. More than six thousand machines of this type are in operation worldwide.

ZENITH offers for all travellers comprehensive equipment for concrete block handling. Cubers with special clamps are available. Transport of fresh concrete from batching and mixing plant to block machine is preferably made with a forklift equipped with a hopper or with a special concrete loader. Ask ZENITH for the options available.Safety and quality are guaranteed by ZENITH providing original ZENITH parts are used.

Features



Hopper Volume: 1000 L

Loader Feeding Height max.: 2005 L

Max. Production Width: 1240 mm

Max. Production Depth: 1130 mm

Min. Production Height: 175 mm

Max. Production Height: 330 mm



Weight

With mould and vibration motor: 5 T



Machine dimensions

Total Length: 2850 mm

Total Height max.: 3000 mm

Total Width: 2337 mm



Vibration system

Max.4 Mould vibrators: 48 KN

Max.2 Tamper Head Vibrators: 20 KN



Electrics

Power consumption with max. nos. of vibrators    16 KW
