| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |
| Certification: | CE |
| Dimension(L*W*H): | 6200mm*2470mm*3000mm |
| Model Number: | 1500 |
| Brand Name: | ZENITH |
| Place of Origin: | Germany |
| Automatic: | Yes |
| Method: | Hydraulic Pressure |
| Processing: | Brick Production Line |
| Brick Raw Material: | Concrete |
| Type: | Interlock Block Making Machine |
| Condition: | New |
Quick Details
Specifications
Welcome to ZENITH
Established in 1953, ZENITH Maschinenfabrik GmbH (called ZENITH for short) is Germany-based concrete block machine manufacturer. Over the last 6 decades, ZENITH focuses on the R&D of non-pallet block producing technology and today ZENITH has become the worldwide leader in non-pallet block machine manufacturer. Our products include: Mobile Multilayer Machines, Mobile Single Pallet Machines, Stationary Multilayer Machines and Stationary Fully Automatic Production Line. Due to the highest quality and first class performance, more than 7,000 ZENITH customers all over the world will continuously benefit from ZENITH's expertise and know-how day after day, for more than 60 years.
In July of 2014, ZENITH Maschinenfabrik GmbH was acquired by Quangong Machinery (called QGM for short) and became the member of QGM Group. QGM Group is able to provide a wide range of products to our users, from simple automatic production line to fully automatic production line, from middle class to high class.
Features

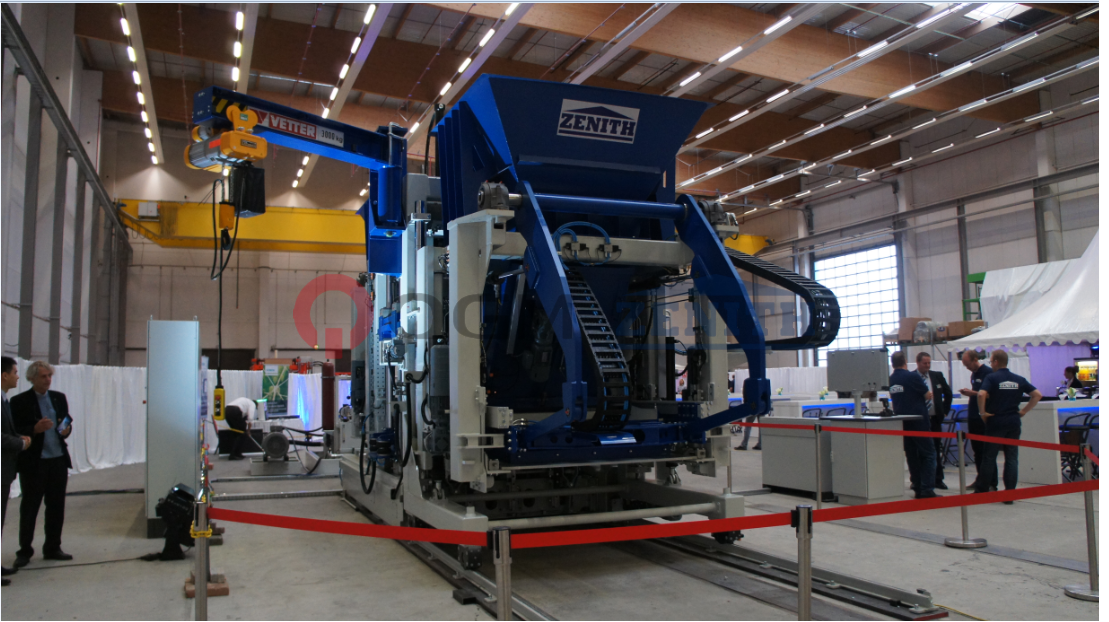

Concrete Products Machine, Basic Part, Type ZENITH 1500, operated with steel pallets
Includes:
A. Heavy duty machine frame in solid welding construction
B.Tamper head and mould are guided on bars with ? 100 mm
C.Three adjustable supporting columns
D.4 Lifting spindles for filling device I + II
E.Various equipment parts
Board Infeed Pusher :
This transport unit is designed as a slideway with hydraulically operated rack infeed that feeds the concrete products machine with boards. This system is controlled with proportional valves and digital position measurement.
Mold Restraining Device in Standard Version for Concrete Products Machine:
Mold-frame sides in solid, tension-free welded construction incl. bolted lateral mold restraining with high wear-resistant plastic components. Mold lays in the mold-frame without using bolts. Mold clamps are pneumatically operated with air bags. The contact pressure is continuously adjustable to achieve short vibration time and longer life time for the mould. Mechanically operated synchronisation is included.
Tamper Head Vibrator with DC brake
Used to achieve a quality surface of the concrete products and to assist in de-moulding. Consists of two separate vibrators with adjustable unbalance installed on the tamper head plate.
Vibrator Brand: OLI, 2x1.57 kW
Laser Level Probe
To probe the filling level within the hopper.
Brand: LEUZE
Mould and Tamper Head Encoder
Non-contact measurement incl. mountings.
Frame for Base Mix Device I for Concrete Products Machine
Installed at the base frame of the machine.
Includes:
A, Frame
B, Feedbox is hydraulically and synchronically driven
C, Feedbox platform in wear-resistant design Servo Vibration – Ultra Dynamic - Driven with Frequency Controlled Servo Motor
Includes:
A, Vibration table in solid welding construction with rubber mounts and adjustable airbags
B, 4 vibrator frames, eccentricity mechanically adjusted
C, 4 motor shafts with elastic coupling
D, 4 Siemens Servo Vibration Motors, 4X5.8kw, maximum vibration force can reach 200kN
Central Pneumatic Control Station of Concrete Products Machine
Pneumatic board to supply all consumers installed to the Concrete Products Machine.
Compressor to supply the pneumatic board with compressed air is provided by the customer.
Pneumatically Operated Quick Mould Change Tamper Head for Concrete Products Machine
Integrated tamper head locking releases the tamper head during the de-moulding process. Mechanically operated synchronisation is equipped.
Hydraulic Assembly of the Concrete Products Machine
Valve blocks, single valves and complete pipework for the hydraulic feed of the block machine. For the axles of fillerbox, mould, tamper head and board infeed pusher, proportional valves with integrated electornic are used.
Feedbox Encoder for Digital Measurement- Base Mix
Includes:
Rotation pulse transmitter c/w mountings, etc.
Base Mix Feeding Device I for Concrete Products Machine
Standard design with independently operating pneumatic scrapers at the front and back of the feedbox. Movement of the feedbox is controlled by proportional valve. Agitator oscillates, horizontally positioned.
Base Mix Machine Hopper I for Concrete Products Machine
A, Standard design with hydraulically operated hopper flap.
B, Filling volume: 1200 l
Concrete Products Machine, Basic Part, Type ZENITH 1500, operated with steel pallets
Max. board size 1400 mm x 1200 mm x14 mm
Working area As per layout drawing
Product height 50 mm - 500 mm
Established in 1953, ZENITH Maschinenfabrik GmbH (called ZENITH for short) is Germany-based concrete block machine manufacturer. Over the last 6 decades, ZENITH focuses on the R&D of non-pallet block producing technology and today ZENITH has become the worldwide leader in non-pallet block machine manufacturer. Our products include: Mobile Multilayer Machines, Mobile Single Pallet Machines, Stationary Multilayer Machines and Stationary Fully Automatic Production Line. Due to the highest quality and first class performance, more than 7,000 ZENITH customers all over the world will continuously benefit from ZENITH's expertise and know-how day after day, for more than 60 years.
In July of 2014, ZENITH Maschinenfabrik GmbH was acquired by Quangong Machinery (called QGM for short) and became the member of QGM Group. QGM Group is able to provide a wide range of products to our users, from simple automatic production line to fully automatic production line, from middle class to high class.
Features
Concrete Products Machine, Basic Part, Type ZENITH 1500, operated with steel pallets
Includes:
A. Heavy duty machine frame in solid welding construction
B.Tamper head and mould are guided on bars with ? 100 mm
C.Three adjustable supporting columns
D.4 Lifting spindles for filling device I + II
E.Various equipment parts
Board Infeed Pusher :
This transport unit is designed as a slideway with hydraulically operated rack infeed that feeds the concrete products machine with boards. This system is controlled with proportional valves and digital position measurement.
Mold Restraining Device in Standard Version for Concrete Products Machine:
Mold-frame sides in solid, tension-free welded construction incl. bolted lateral mold restraining with high wear-resistant plastic components. Mold lays in the mold-frame without using bolts. Mold clamps are pneumatically operated with air bags. The contact pressure is continuously adjustable to achieve short vibration time and longer life time for the mould. Mechanically operated synchronisation is included.
Tamper Head Vibrator with DC brake
Used to achieve a quality surface of the concrete products and to assist in de-moulding. Consists of two separate vibrators with adjustable unbalance installed on the tamper head plate.
Vibrator Brand: OLI, 2x1.57 kW
Laser Level Probe
To probe the filling level within the hopper.
Brand: LEUZE
Mould and Tamper Head Encoder
Non-contact measurement incl. mountings.
Frame for Base Mix Device I for Concrete Products Machine
Installed at the base frame of the machine.
Includes:
A, Frame
B, Feedbox is hydraulically and synchronically driven
C, Feedbox platform in wear-resistant design Servo Vibration – Ultra Dynamic - Driven with Frequency Controlled Servo Motor
Includes:
A, Vibration table in solid welding construction with rubber mounts and adjustable airbags
B, 4 vibrator frames, eccentricity mechanically adjusted
C, 4 motor shafts with elastic coupling
D, 4 Siemens Servo Vibration Motors, 4X5.8kw, maximum vibration force can reach 200kN
Central Pneumatic Control Station of Concrete Products Machine
Pneumatic board to supply all consumers installed to the Concrete Products Machine.
Compressor to supply the pneumatic board with compressed air is provided by the customer.
Pneumatically Operated Quick Mould Change Tamper Head for Concrete Products Machine
Integrated tamper head locking releases the tamper head during the de-moulding process. Mechanically operated synchronisation is equipped.
Hydraulic Assembly of the Concrete Products Machine
Valve blocks, single valves and complete pipework for the hydraulic feed of the block machine. For the axles of fillerbox, mould, tamper head and board infeed pusher, proportional valves with integrated electornic are used.
Feedbox Encoder for Digital Measurement- Base Mix
Includes:
Rotation pulse transmitter c/w mountings, etc.
Base Mix Feeding Device I for Concrete Products Machine
Standard design with independently operating pneumatic scrapers at the front and back of the feedbox. Movement of the feedbox is controlled by proportional valve. Agitator oscillates, horizontally positioned.
Base Mix Machine Hopper I for Concrete Products Machine
A, Standard design with hydraulically operated hopper flap.
B, Filling volume: 1200 l
Concrete Products Machine, Basic Part, Type ZENITH 1500, operated with steel pallets
Max. board size 1400 mm x 1200 mm x14 mm
Working area As per layout drawing
Product height 50 mm - 500 mm
Fully automatic son car specification
Maximum load capacity 15.000 kg
Per insertion rack maximum load capacity As per design
Every two layers insertion rack As per design
Support bracket inside width 1,060 mm
Layers of insertion rack As per project design
Distinction of insertion rack As per design
Mother car driving power SEW 11 kW
Maximum load capacity 15.000 kg
Per insertion rack maximum load capacity As per design
Every two layers insertion rack As per design
Support bracket inside width 1,060 mm
Layers of insertion rack As per project design
Distinction of insertion rack As per design
Mother car driving power SEW 11 kW
