| Type: | Water Filter Parts |
|---|---|
| Brand Name: | Huamo |
| Type: | Pleated filter cartridge |
| material: | PE |
| Length: | 10", 20", 30", 40" |
| HDPE: | pleated filter cartridge |
| Model Number: | Polyester pleated filter cartridge |
| Place of Origin: | China (Mainland) |

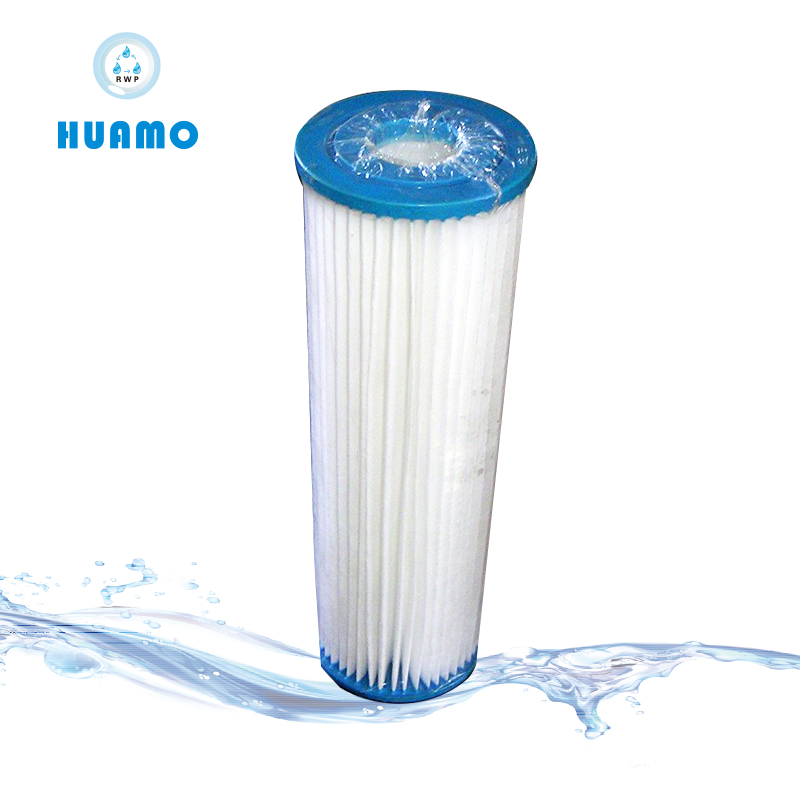

| name: | 10"/20" Polyester Cellulose Pleated Filter Cartridge/Paper Pleated Wat |
| Material: | PE |
| application: | Pre-filtration |
| Media: | Polyester cellulose |
| Core: | Polypropylene |
| End caps: | Vinyl plastisol |
| Length: | 10",20" |
| Micron Rating: | 1,3,5,...50um |
| Application1: | General water and RO treatment |
Quick Details
Specifications
| Polyester Cellulose Pleated Filter Cartridge | |||
| Material of Construction | Filter Media | Polyester Cellulose | |
| Inner Core | Polypropylene | ||
| End Caps | Vinyl Plastisol | ||
| Micron Rating | 1.0,3.0,5.0,10,20,30,50um | ||
| Cartridge Dimensions | Outer Diameter | 68mm, 115mm | |
| Inner Diameter | 28mm | ||
| Length(Based on DOE End Cap) | 5", 10", 20", 30", 40" | ||
| Operating Conditions | Max Operating Temperature | 52 | |
| Max Differential Pressure | 4.0 bar at 20 | ||
| Recommended Change Out |
1-1.5 bar | ||
