Product Main

Quick Details

Application: Laser Marking
After-sales Service Provided: Engineers available to service machinery overseas
Certification: CE
Power(W): 10W
Model Number: NL-FBW10
Brand Name: Nine
Place of Origin: China (Mainland)
Control Software: Windows XP/2000/98
Cooling Mode: Air Cooling
CNC or Not: Yes
Laser Type: Fiber Laser
Condition: New
Laser wavelength: 1064nm
Beam quality: M2<1.5
Laser power output: 10%~10% continuous adjust
Focus point diameter: <0.01mm
Engraving depth: 150mm*150mm
Matching range: 50mm*50mm/100mm*100mm/200mm*200mm/300mm*300mm
Engraving speed: 800 standard characters/s
Repeat accuracy: +/-0.003mm
Laser mpdule life: 100000 hours

Specifications

 Features:
1.Using low cost
Electro-optic conversion sfficiency up to 30%,the whole machineconsumes less than 500w,and save energy comsumption spending
2.MaintenanceFree operation
Laser without any maintenance,also need not adjust or clean lens
3.the service life is long
the average working time of up to 100000 hours
4.Processing speed is fast
the speed is 2 to 3 times the traditional laser marking machine
Applications:
Widely Used in:
1.Mobile phone key
2.Cellphone shell drawing
3.Car stereo buttons
4.Watches
5.Other metal /non-metallic product
Technical paraneTers:

Model
 NL-FBW10/20/30
Power
 10W/20W/30W
Laser wavelength
 1064nm
Beam quality
 M2<1.5
Laser power output
 10%~100% continuous adjust
Laser output frequency
 20KHz~200KHz continuous adjust
Stability of the power
 ＜±1%rms
Focus point diameter
 ＜0.01mm
Marking range
 150mm*150mm
Matching range
 50mm*50mm     100mm*100mm
200mm*200mm    300mm*300mm
Engraving depth
 <1.2mm
Engraving speed
 800 standard characters /s
Minimum line width
 0.012mm
Minimum character
 0.15mm
Repeat accuracy
 ±0.003mm
Laser
 Inported / made in China
System running environment
 Windows XP/2000/98
Cooling
 Air
Run the environment temperature
 15℃~35℃
Demand for electricity
 220V/simplex/50Hz/<400w
Laser module life
 100000 hours
Product Picture Show:

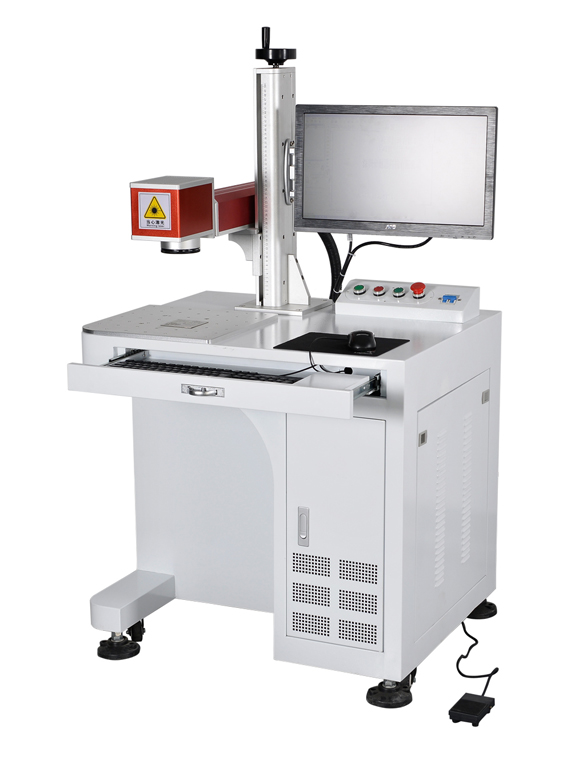

10w Desktop Fiber Laser Marking Machine Equipment for Engraving Metal and Some Nonmetallic Material
Factory & Office:
10w Desktop Fiber Laser Marking Machine Equipment for Engraving Metal and Some Nonmetallic Material
                                                 Reception
10w Desktop Fiber Laser Marking Machine Equipment for Engraving Metal and Some Nonmetallic Material
                                                Office
 10w Desktop Fiber Laser Marking Machine Equipment for Engraving Metal and Some Nonmetallic Material
                                                 Product room
10w Desktop Fiber Laser Marking Machine Equipment for Engraving Metal and Some Nonmetallic Material
                                          Exhibition hall

after service:
1.User-friendly English manual and video CD for machine using and maintaining;
2.My company English software can do all kinds of patern recognition,software upgrading and Updating and updating free;
3.All product has 12 MONTHS WARRANTY ,we can provide technical support even after the warranty.
