| Model Number: | SP-206 |
|---|---|
| Brand Name: | SHENZHEN |
| Place of Origin: | China (Mainland) |
| white: | manufacturer |
Quick Details
Specifications
|

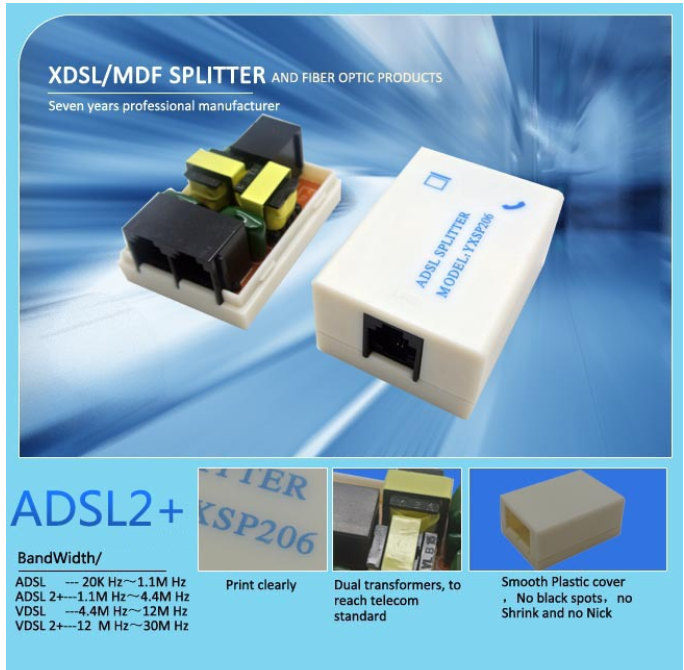

[Name] good quality ISDN ADSL splitters (Annex B) |
|
[Brand]HW-TELECOM |
| [Model]AS-GC2 |
| [Size]59*44*24mm |
| [Function] |
| adsl dsl filter splitter rj45 adsl splitter eliminate the interference between data signal and voice signal transmitted in the same telephone line and make the internet and telephone go both at the same time(Data signal for internet voice signal for telephone) |
| [Market] China, Russia, Turkey,Iran,Mexico, Sri Lanka |
|
POST PORT IMPEDANCE |
Zr=600 Ω |
|
|
Modem impedance |
30 kHz to 4.4M Hz |
100 Ω |
|
Insertion loss |
@ 1020 Hz |
<0.3dB |
|
Insertion loss distortion |
200 Hz<f<3.4 kHz with 1020Hz center |
<± 1 dB |
|
Return loss |
300 Hz< f< 500 Hz |
>=14 dB |
|
500 Hz< f< 2000 Hz |
>=18 dB |
|
|
2000 Hz< f< 3400 Hz |
>=14 dB |
|
|
Longitudinal conversion loss LCL |
50 Hz< f< 600 Hz |
> =40 dB |
|
600 Hz< f< 3400 Hz |
>=46dB |
|
|
3400 Hz< f< 30K Hz |
>=40dB |
|
|
30K Hz< f< 1104K Hz |
>=45dB |
|
|
1104K Hz< f< 4.4M Hz |
>=30 dB |
|
|
Delay distortion |
500 Hz<f<2800Hz |
150 u sec |
|
DC resistance |
<25 Ω |
|
|
Isolation resistance, branch-branch |
100 VDC; term = ∞ Ω |
>5MΩ |
|
Stop band attenuation |
30 kHz<f<138 kHz |
>45 dB |
|
138 kHz<f<4.4 MHz |
>55dB |
