Product Concept:

Mini Ups is a DC uninterruptible power supply which can storage power, it is designed to provide emergency power backup to all kinds of DC power equipments such as routers, modems, set-top boxes, VOIP phone systems, surveillance systems, alarm systems and many critical telecom equipments. It can provide hours of operation during power failure at a low price vs a traditional UPS. Our Mini UPS has perfectly overcharge, over discharge, overcurrent and short circuit protection function.

Mini Ups Application:

12V2A mini ups can be used to all kinds of DC power equipments such as routers, modems, IP cameras, fingerprint attendance machines, Fire safety systems, security monitoring systems, CCTV cameras, Door security systems, personal data assistants, emergency lightings, Alarm systems, personal communication systems, radios, digital cameras, POS, Bluetooth devices, smart cards.

Mini Ups specifications:

Matching Adaptor Rating	Input Voltage Rating	12V±5%
	Input Current Rating	2A
	Power Rating	24W
	Adaptor Ripple	1%
	Output Socket	5.5*2.5mm
Matching UPS Rating	Output Voltage Rating	12V±5%
	Input Current Rating	2A
	Power Rating	24W
	Adaptor Ripple	1%
	Output Socket	5.5*2.5mm
	Transfer Time	6mS (ref)
Battery data	Battery type	Li-ion
	Battery pack voltage	11.1V

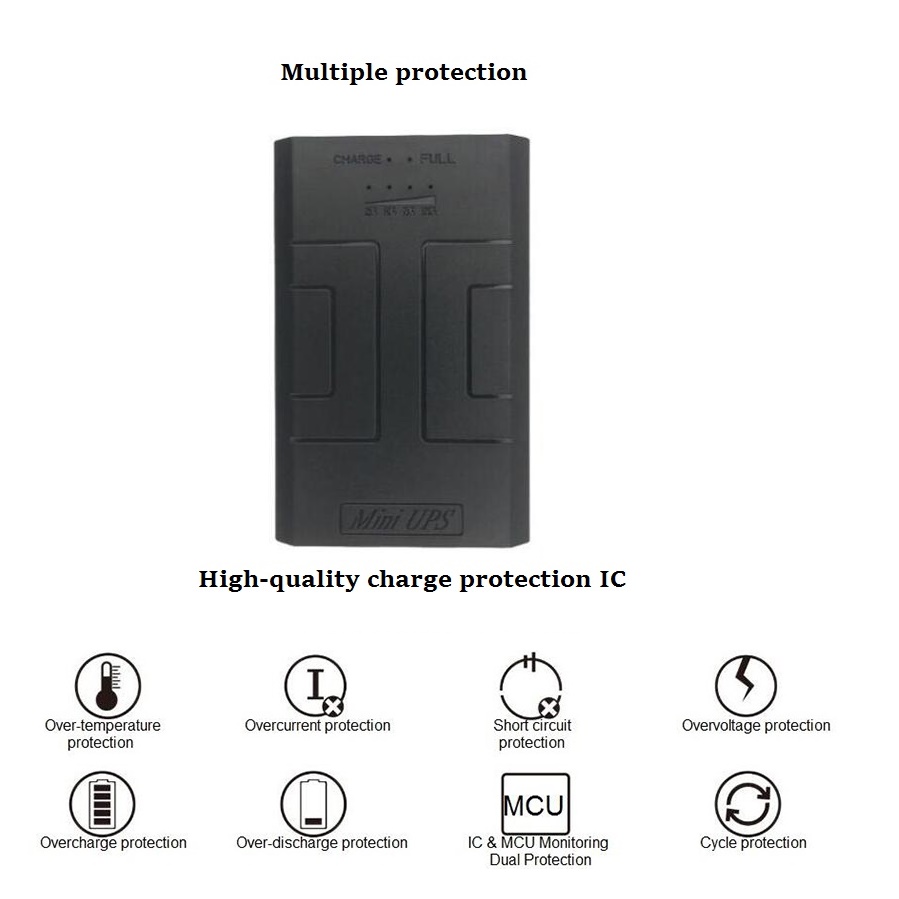

	Battery Protection	Battery Protection IC & MCU Monitoring Dual Protection
	Battery capacity	11.1V 2000mAh
	Recharge time	8hrs to 90% (2000mAh)
LED Status	Adaptor Work	Red LED Light
	UPS Work	Green LED Light
	Battery Pack Charging	Blue LED Trotting Horse Lamp
	Battery Pack Charge Complete	All Blue LED OFF
	Battery Pack Discharging	Blue LED Flash
	Battery Pack Low Power	Blue LED Quick Flash
	0-25% Electricity	LED1 ON
	25-50% Electricity	LED1 & LED2 ON
	50-75% Electricity	LED1 & LED2 & LED3 ON
	75-100% Electricity	LED1 & LED2 & LED3 & LED4 ON

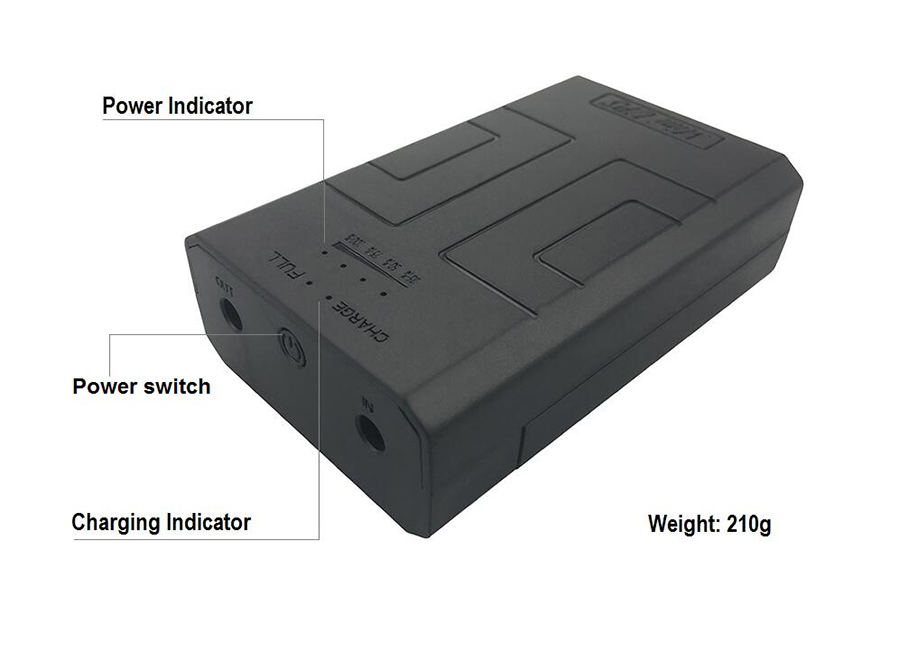

Key	Press 3-5S	Enter Sleep Mode
	Press 1S	Display battery capacity
Others	Operating temperature	0-50℃
	Operating Humidity	5~90% RH
	Backup time	2 to 10 hours

Mini Ups features:

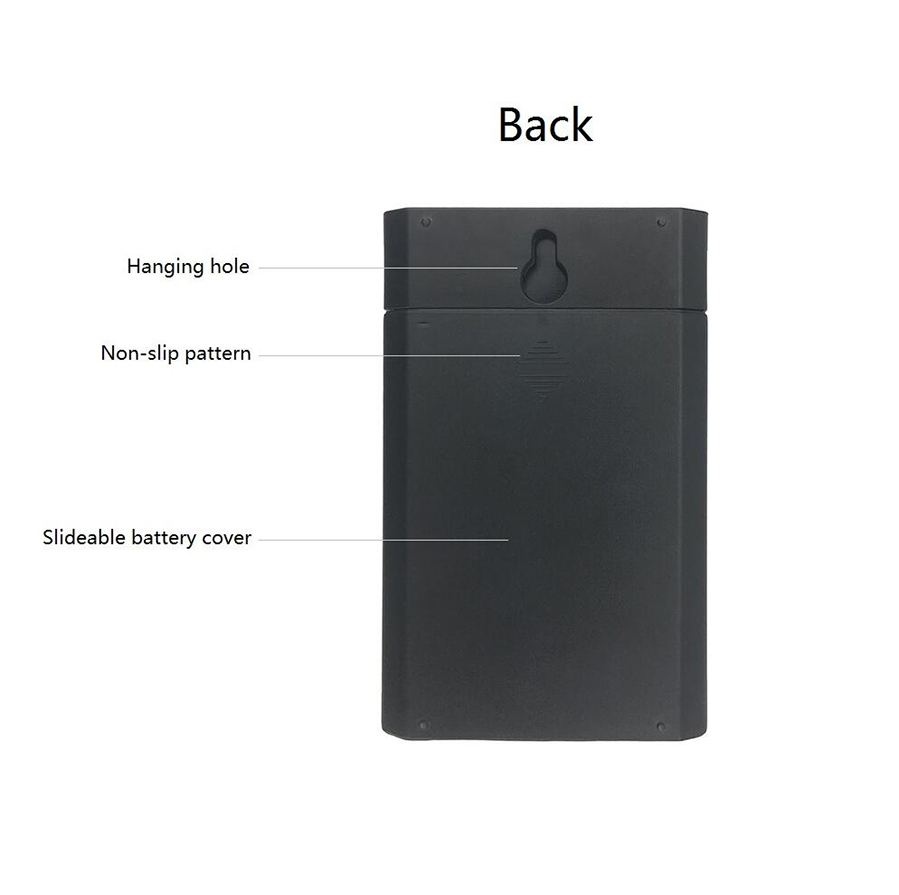

1)Wall-mount design, Ups can be hung on the wall

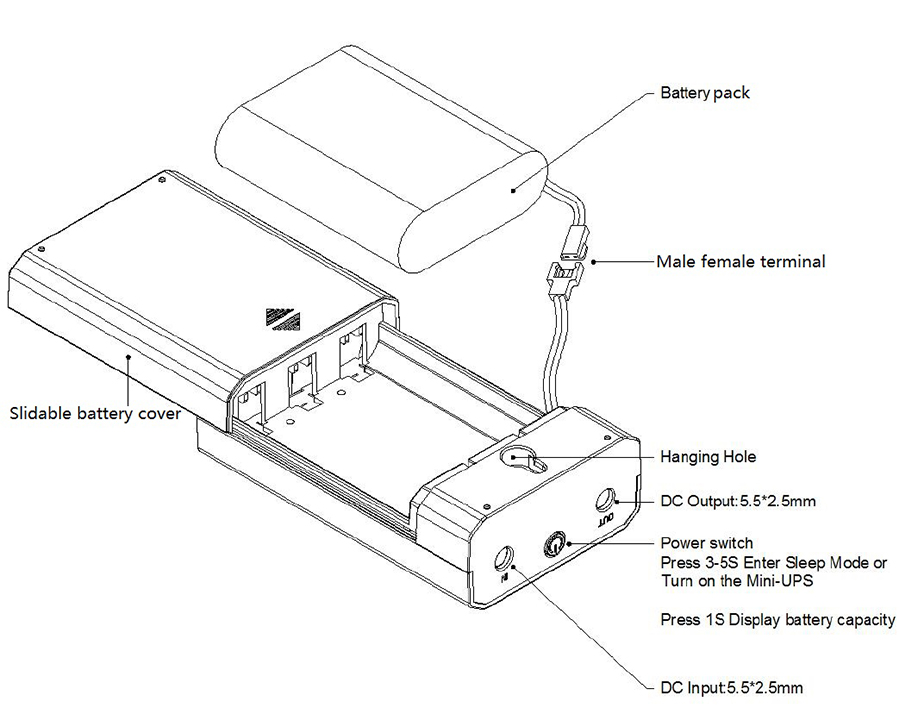

2)Slideable back cover design, if the battery pack is broken, you can easily replace it, this can extend the service life of the product.
3)The battery pack is connected to the PCB by a terminal block, if you want to replace the battery pack, it will be more convenient.

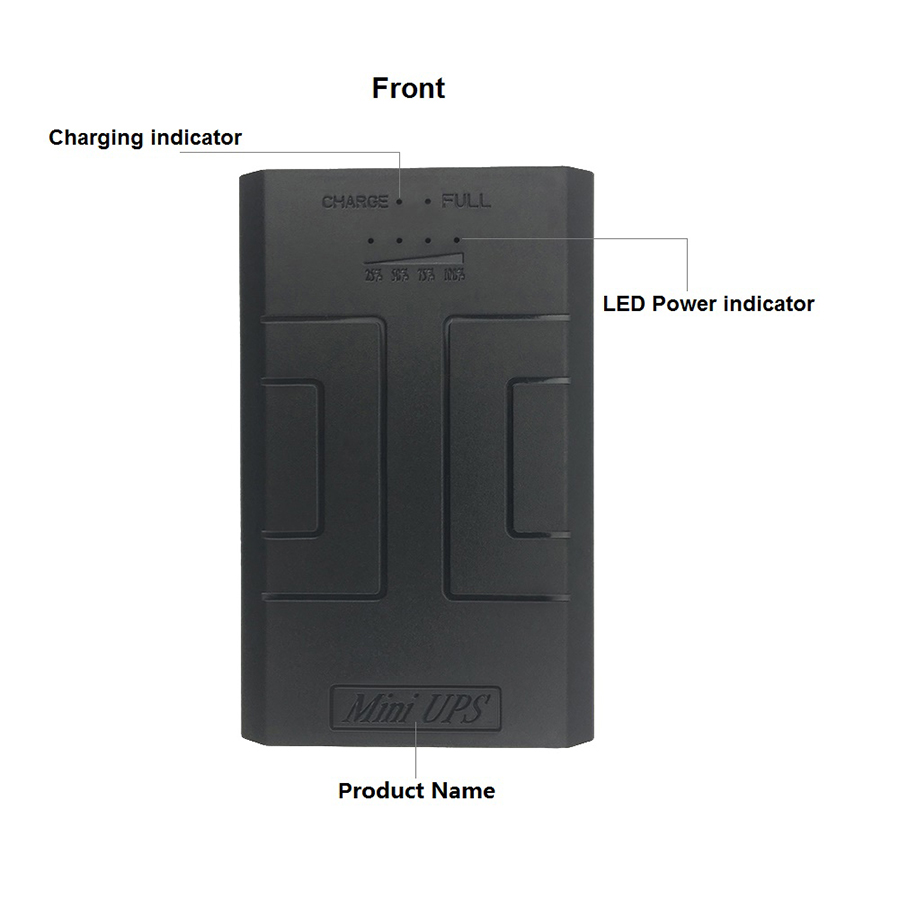

4)4 LED indicators can show battery power to us, It allows us to know the battery power.
5)3*2000mah battery pack,backup time is 2 to 10 hours
6)Standard Y-line,it can connect two device in the same time.
7)Modular design,Easy to replace parts and DIY.

Attention:

1. The UPS is not waterproof, please use it indoors. If you need to use it outdoor, please take waterproof measures .

2. For safety, please use qualified batteries pack with protection board, do not throw the UPS into water or fire, do not try to open and modify it.

3. Please charge it up in a timely manner when low battery. Or charge it once in 3months or 5 with a pretty long period unused.
