| Model Number: | FNS-550 |
|---|---|
| Brand Name: | FNS |
| Place of Origin: | China (Mainland) |
| Item: | Original Low Cost eletromagnetic Flow Converter with PCB boards |
| Velocity Range: | 0.01 - 15 m/s |
| Velocity resolution: | 0.5 mm/sec |
| 125mA Excitation current: | 65 ~ 120 ohm |
| 250mA Excitation current: | 35~ 65 ohm |
| LCD Display: | English display |
| Excitation current: | 125mA,160mA,250mA |
| Power supply: | 85VAC --- 265VAC or or 110VAC to 420VAC or 24VDC |
| Time Base: | The Rate can be displayed in unit per second, Per minute or per hour |
| Output: | 4-20mA analog output |
Quick Details
Specifications

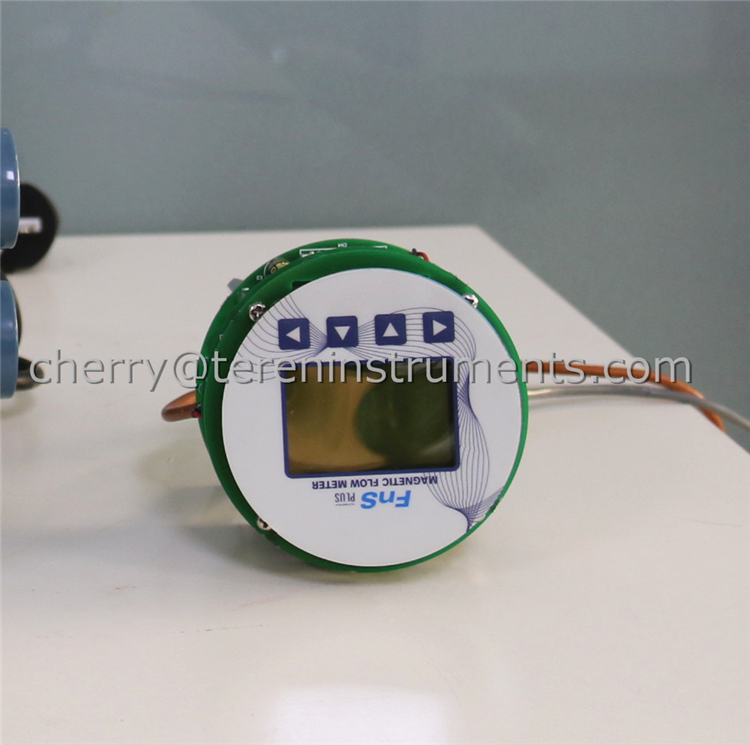

Original Low Cost eletromagnetic Flow Converter with PCB boards
Product Description

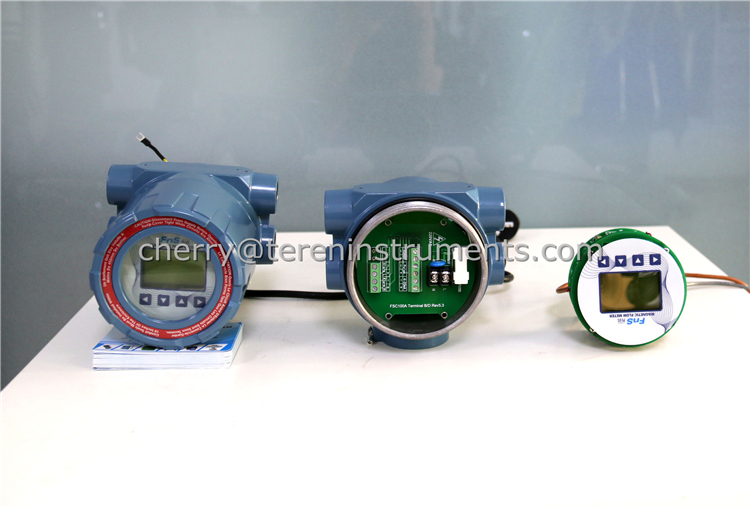

Transmitter outline dimension and type
According to the size of the sensor, we offer four kinds of transmitter housing, As shown in the figure below, please note: the PCB board, software and menus and functions are be the same, only the size of housing and shape of the housing is different.
Language And LCD Display
English ,With LCD,display flow rate , total flow , velocity etc three internal accumulator, record positive total flow and reverse total flow and net total 3.6V battery power emf type with backlight.
Nonlinear Correction Function:Multi segment linear correction,suitable to variety of sensors
Automatic Zero Calibration Function
Quick Response, Response time of 0.3 seconds
Electrode Self-Cleaning Function
Transmitter outline dimension and type
According to the size of the sensor, we offer four kinds of transmitter housing, As shown in the figure below, please note: the PCB board, software and menus and functions are be the same, only the size of housing and shape of the housing is different.
Suitable to Size of the Sensor (mm):
1,2,3,6,8,10,15,20,25,32,40,50,65,80,100,125,150,200,250,300,350,400,450,500,600,650,700,800,900,1000,1100,1200,1300,1400,1500,1600,1700,1800,2000,2200,2400,2600,2800,3000
Power Supply
Power supply :85VAC --- 265VAC or or 110VAC to 420VAC or 24VDC or 3.6v lithium battery
Requirement For Sensor And Excitation (AC and DC power supply type)
Excitation current can be set to 125mA,160mA,250mA
250mA excitation current is suitable to the resistance of two coil: 35~ 65ohm
125mA excitation current is suitable to the resistance of two coil: 65 ~ 120ohm
excitation frequency:25HZ;12.5HZ,6.25HZ,3.125HZ
Communication
RS485 (standard),HART (option) MODBUS interface:RTU format,Physical interface:RS-485,Electrical isolation:1000V; HART interface:Support standard HART protocol
Our Services
1. Factory price with OEM & ODM service
2. ISO & CE certificated with the ultrasonic flow meter .
3. Usually we have fow meter in stock,we can send the flow meter within 24 hours .
4. 12 months warranty : if there is any fault with the ultrasnic flow meter during the warranty,we will send you the same model freely ,we will do as what we promised to coustomers.
5. 10% less freight charge at lest : We have good frendship with DHL and TNT ,we can get the best price of feright from them,usually we can get 10% less than others.
6. We provide 24hr online service
Packaging & Shipping
We do export and import for more than 10 years, so we have eatalished nice relationships with so many expresses,forwarders,and shipping companies. At the same time, we use wooden case to pack electromagnetic flow meter if the norminal size bigger than DN220mm.
Whatever you want to use DHL,FEDEX, TNT,AIR FREIGHT OR SEA FREIGHT, we can get a cheaper unit price for you. And we promise to pack products seriously to ensure there will be no damage when it arrive at your door.
Application fields
Widely used in petroleum, chemical, metallurgy, water, heating, industry, water pumps, boilers and other industries.
