Product Main

Quick Details

Abrasive Grain Sizes: F12-320, 1-3-5-8mm, 200-0,325-0
Usage: sand blasting, bonded abrasveis, coated abrasives, refractory, etc
Material: Aluminum Oxide
Brand Name: Weixiang
Place of Origin: China (Mainland)

Specifications

Product Description
Brown fused alumina is fused in the electric arc furnace under the high temperature of above 2200 degrees, with high quality bauxite as main raw material, and through purification, crystallization, cooling, crushing, sorting, magnetic separation, screening and other production technology made into all kinds of particles and powder.
It is brown and has features of high hardness and toughness. So it is always widely used as material of bonded abrasives such as gringding wheels and cutting wheels, coated abrasives, sand blasting, also for refractory products, chemical additives, precision casting and anti-sliding materials.
Chemical index of Brown Fused Alumina
Purpose Specification Chemical composition(%) Magnetic material content(%)
Al2O3 Fe2O3 SIO2 TIO2
For abrasive F 4#—80# min95 max0.3 max1.5 max3.0 max0.05
90#—150# min94 max0.03
180#—240# min93 max0.3 max1.5 max3.5 max0.02
W 1#—63# min2.5 max0.5 max1.8 max4.0
For refractory Size sand 0—1mm min95 max0.3 max1.5 max3.0
1—3mm
3—5mm
5—8mm
Fine powder 200#—0 min93.5 max0.5 max1.5 max3.5


Application
Used as a raw material in:
- Refractories
- Ceramics shapes
- Grinding wheels
- Sandpaper
- Blasting media
- Metal preparation
- Coatings
- Lapping
- Polishing
- Grinding
Refractory Grade Grain Size Avaiable-- 0-1mm, 1-3mm, 3-5mm, 5-8mm ,8-12mm,-200mesh,-325mesh
Abrasives Grade Grain Size Avaiable-
For Bonded Abrasive F12 . F14 .F16 .F18 .F20 .F24 . F30. F36 .F40 .F60. F80 .F150 . F180 .F220....
For Coated Abrasive P12 . P14 .P16 .P18 .P20 .P24 . P30. F36 .P40 .F60. P80 .P150 . P180 .P220 ....
We also can provide grain size as customer's special requirement

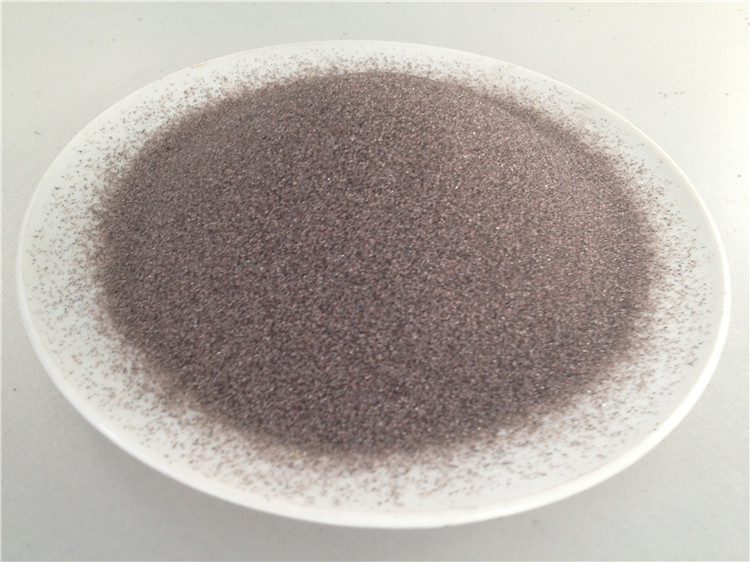

Brown fused aluminum oxide

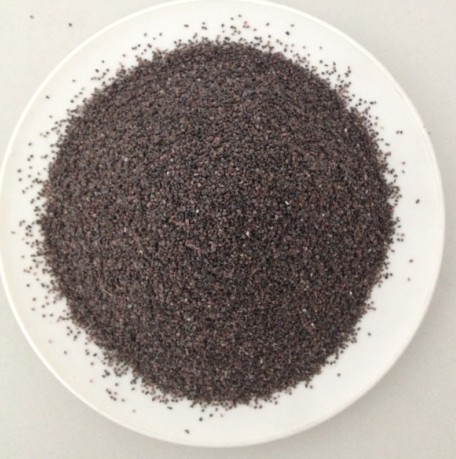

Brown fused aluminum oxide
