| Brand Name: | AFT |
|---|---|
| Accuracy: | 0.5% |
| Power Supply: | 220V/24V |
| output: | 4-20MA/Pulse |
| Medium: | Conductive liquid |
| Model Number: | AFTLD |
| Place of Origin: | China (Mainland) |
| Products name: | sewage electromagnetic flow meter milk flow meter |
| Output: | 4-20mA /RS485 |
| Material: | carbon steel |
| Power supply: | 220VAC/ 24VDC |
| Connection: | Flange: DN6-DN3000 |
| Temperature: | 0-180 degree |
| Liner Material: | PTFE/PFA/F46/Neoprene/Polyureth |
| Electrode Material: | 316L/Hastelloy C22 / Platinum |
| Colour: | Orange |
| Protect grade: | IP65/IP68 |
Quick Details
Specifications

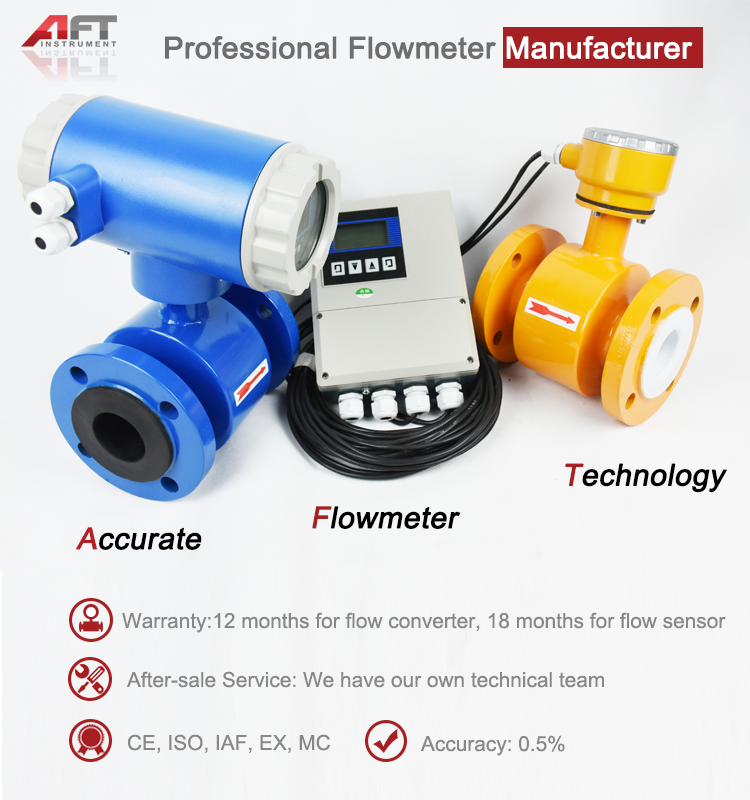

Sewage Electromagnetic Flow Meter

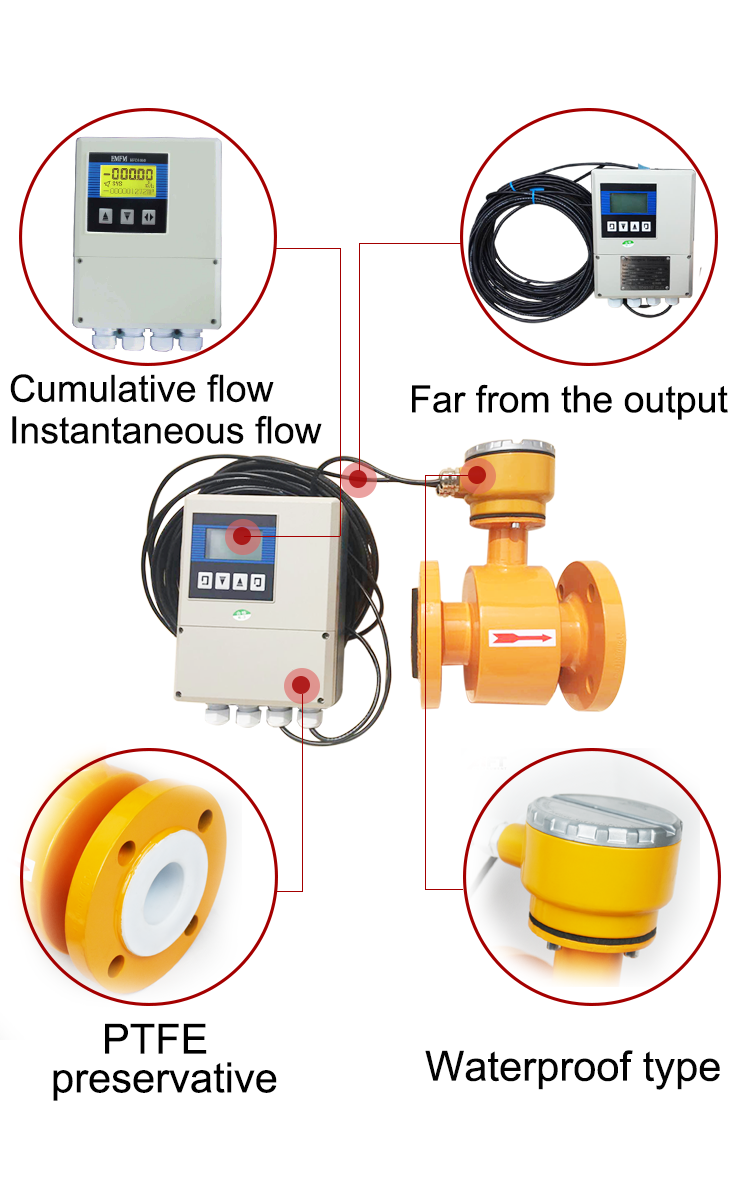

Details show with conducting liquid flow meter:
We have a professional sales team, supply most suit yours competitive advantage conducting liquid flow meter.
Details show with conducting liquid flow meter:
Parameters of conducting liquid flow meter:
| Product name | Split type analog output electromagnetic flowmeter | ||
Caliber |
DN6-DN3000mm | ||
Nominal Pressure |
0.6-4.0Mpa (Special pressure can be made to ) | ||
Accuracy |
0.5 of the value displayed,0.3% or 0.2% are selectable | ||
Liner material |
Teflon,PFA,F46,Neoprene,Polyurethane | ||
Electrode type |
General type,scraper type and replaceable type | ||
Medium temperature |
Integrate type |
-20~+60 | |
Remote type |
Neoprene & Polyurethane Liner |
-20~+60 | |
PTFE liner /PFA Liner /F46 Liner |
-40~+180 | ||
Ambient temperature |
-25~+60 | ||
Ambient humidity |
5-100%RH(relative humidity) | ||
Medium electrical conductivity |
20s/cm | ||
Measuring range |
1500:1,flow rate <15m/s | ||
Structure type |
Integrate type, remote type,submersible type,ex-proof type | ||
Protection class |
IP65,IP68(Optional) | ||
Ex-proof Mark |
ExmdBT4 | ||
Product standard |
JB/T9248-1999 Electromagnetic Flow meter | ||
Why choose us?
We have a professional sales team, supply most suit yours competitive advantage conducting liquid flow meter.
We have a lot of foreign customers and cooperation, welcome to our company to visit:
Packing and transport of flow meter
