| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Certification: | ISO9001 |
| Weight: | 17500KG |
| Dimension(L*W*H): | 2900*2900*3800 mm |
| Model Number: | C5118 |
| Brand Name: | hengshui shengyong |
| Place of Origin: | China (Mainland) |
| Max. Swing Diameter: | 1400mm |
| Automatic Grade: | Automatic |
| CNC or Not: | CNC |
| Type: | Vertical |
| Condition: | New |
| Table diameter: | 1400mm |
| Maximum turning diameter: | 1800mm |
| Maximum height of workpiece: | 1000 mm |
| Maximum weight of workpiece: | 5 ton |
Quick Details
Specifications
Vertical lathe can be used in automobile equipments, construction machinery, electrical and other industries parts machining.
Double column Vertical Lathe machine model:
C5225/C5232/C5240/C5250/C5263
Maximum turning diameter:2500/3150/4000/5000/6300mm
Table diameter : 2500/3150/4000/5000/6300 mm
Our factory video:
https://youtu.be/4xCWym-Fp9k

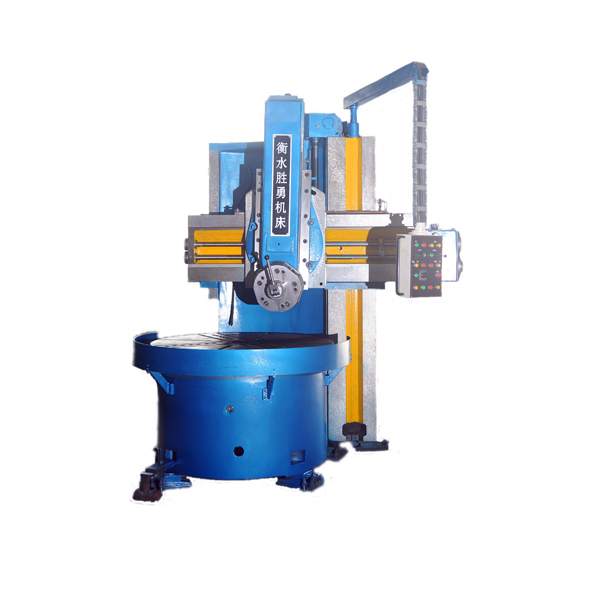

Technical specification of Economical cnc metal vertical lathes for sale C5118
1 Table diameter 1400 mm
2 Maximum turning diameter 1800 mm
3 Maximum height of workpiece 1000 mm
4 Maximum weight of workpiece 5 t
5 Speed change of table 5-160 r/min
6 Working table Step of rotation speed 16
7 Feed rates 0.8-86 mm/min
8 Step 12 step
9 Horizontal travel of tool post 1000 mm
Vertical travel of tool post 800 mm
10 Horizontal travel of side cutter bar 630 mm
Vertical travel of side cutter bar 900 mm
11 Crossrail travel 650 mm
12 Maximum section scale of tool bar 30×40 mm
13 Power of main motor 30 kw
revolutions 1470 r/min
14 Power of Feed motor 1.3/1.7 kw
Revolutions 940/1440 r/min
15 Machine weight 17.5 t
16 Overall dimensions(L×W×H) 2900×2900×3800 mm
