| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Certification: | ISO9001 |
| Weight: | 42000kg |
| Dimension(L*W*H): | 8010*4400*4680mm |
| Model Number: | C5240 |
| Brand Name: | hengshui shengyong |
| Place of Origin: | China (Mainland) |
| Max. Swing Diameter: | 4000mm |
| Automatic Grade: | Automatic |
| CNC or Not: | CNC |
| Type: | Vertical |
| Condition: | New |
| Maximum turning diameter: | 4000mm |
| Maximum Height of workpiece: | 1600mm |
| Maximum Weight of workpiece: | 10ton |
| Table diameter: | 3150mm |
Quick Details
Specifications
Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co.,Ltd specializes in the researches, developments, manufactures and sells of metalworking machines: Vertical lathe ,Vertical turning Lathe, Vertical turret lathe ,CNC lathe ,Lathe machine,Heavy duty lathes,Plano miller,Milling machine and boring machine etc.
Single column Vertical Lathe machine model:
C5112/C5116/C5118/C5120/C5123/C5125/C5126
Maximum turning diameter: 1250/1600/1800/2000/2300/2500mm
Maximum height of workpiece: 1000/1000/1000/1200/1300/1350 mm
Maximum weight of workpiece 3.2 / 5 / 5 / 6 / 8 / 10 t
Double column Vertical Lathe machine model:
C5225/C5232/C5240/C5250/C5263
Maximum turning diameter:2500/3150/4000/5000/6300mm
Table diameter : 2500/3150/4000/5000/6300 mm
Our factory video:
https://youtu.be/4xCWym-Fp9k

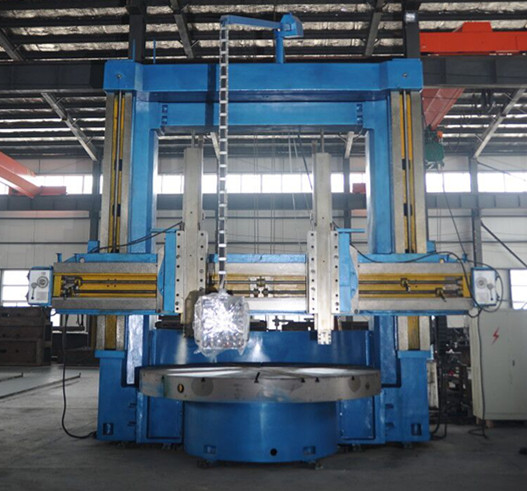

Technical specification of Large CNC vertical turning lathe machine C5240
1 Maximum turning diameter 4000 mm
2 Maximum Height of workpiece 1600/2000/2500/3000 mm
3 Maximum Weight of workpiece 10/20/32 t
4 Table diameter 3150 mm
5 Speed range of table 2-63 r/min
6 Maximum torque 63 KN/min
7 Vertical Travel of tool post 1000/1250 mm
8 Horizontal travel of tool post 2150 mm
9 Rotation angle of tool post ±30° degree
10 Power of main motor 55/75
11 Machine weight(about) 42-58t
12 Overall dimensions(L×W×H) 8010×4400×4680mm
