| Special Features: | Waterproof / Weatherproof |
|---|---|
| Technology: | Pan / Tilt / Zoom |
| Sensor: | CMOS |
| Style: | Hidden Camera |
| Type: | Digital Camera |
| Model Number: | GYGD-II |
| Brand Name: | GOLD |
| Place of Origin: | China (Mainland) |
| Imaging chip: | 1/3 |
| Resolution: | 850TVL |
| Focusing: | Automatic |
| Lighting: | high power lighting LED |
| Measuring depth: | 100-2000m |
| Color rotating lens: | 12,000,000 pixel sensitivity |
| Viewing Angle: | 360 Hole Wall |
| Scan: | Automatic scan |
| Control: | Dynamic change speed or footage |
| Illuminating brightness: | Adjustable |
Quick Details
Specifications

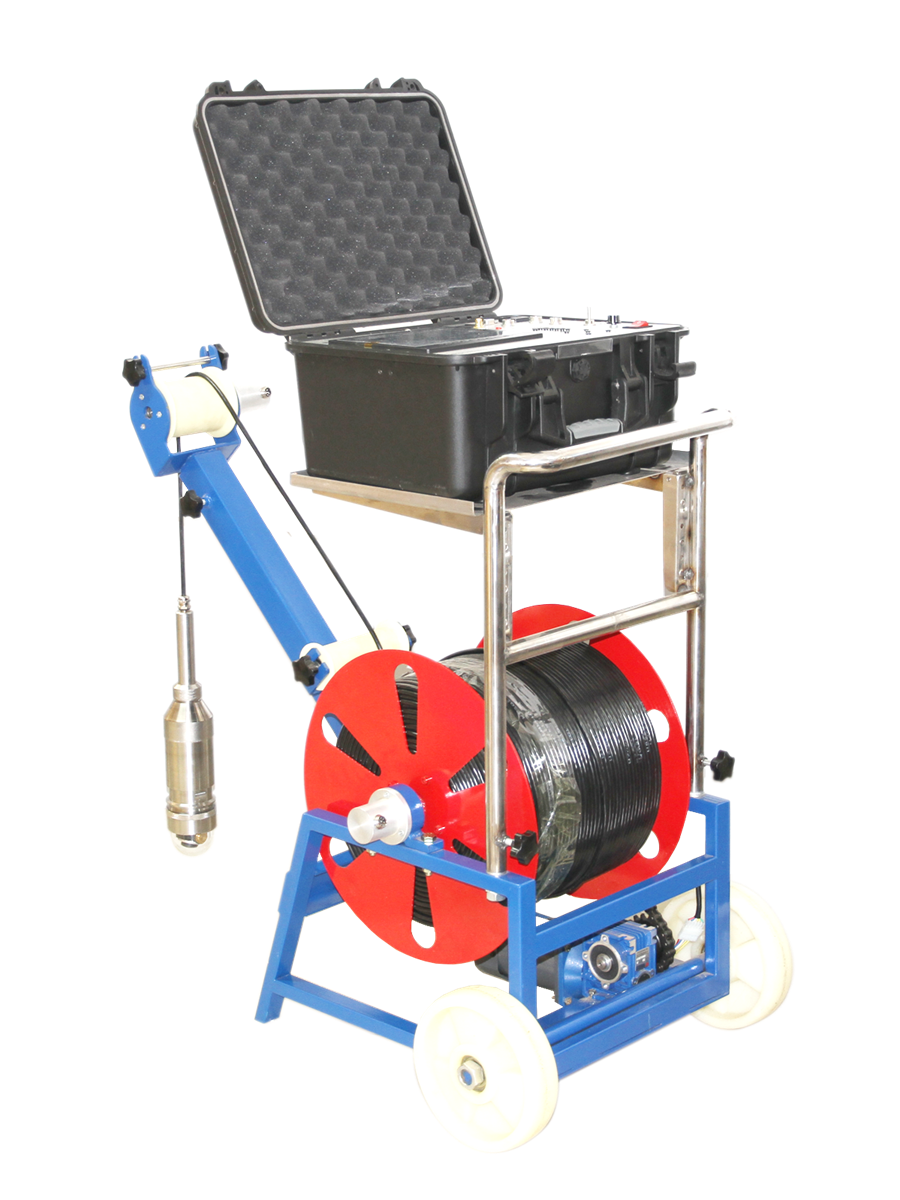

GYGD-II Borehole Camera & Water Well Inspection Camera
Features:
Real time video, collect, record
Clearly image show on ground instrument
Vertical drilling hole, horizontal drilling hole, arbitrary drilling hole
Widely used in water well, oil field, coal field, engineering geology, dam, reservoir,
Oceaneering
| Application: |
|
Stratum structure divide
Well wall stratum crack
Karst development discrimination
Distinguish fractured development zone
Determine the karst distribution position
Long time underground borehole
monitoring
Technical Specification:
|
No. |
Description |
Parameter |
Remarks |
|
1 |
Imaging chip |
1/3" color CCD |
|
|
2 |
Resolution |
850TVL |
|
|
3 |
Focusing |
Automatic |
Can also be manual |
|
4 |
Lighting |
high power lighting LED |
|
|
5 |
Measuring depth |
100-2000m |
|
|
6 |
Color rotating lens |
12,000,000 pixel sensitivity, 1/3 inch CCD 0.01 Lux |
|
|
7 |
Viewing Angle |
360° Hole Wall |
|
|
8 |
Scan |
Automatic scan |
|
|
9 |
Control |
Dynamic change speed or footage |
|
|
10 |
Illuminating brightness |
Adjustable |
|
|
|
|
Standard Configuration: |
|
No |
Specs |
Remark |
|
Winch |
710*440*400 mm |
Aluminium alloy |
|
Display |
8" LCD Color Monitor |
14 inch (optional) |
|
Sensor( Sony Camera) |
Diameter 75mm |
720TVL,50mm (Optional) |
|
Ground Unit |
400*300*180 mm |
220V/380V |
|
CD writer |
400*300*145 mm |
DVD CD writer |
|
Pulley |
300*280*255 mm |
Deep display |
|
Cable |
100-2000m |
Logging cable |
|
Connect line |
|
Power line, data line |
