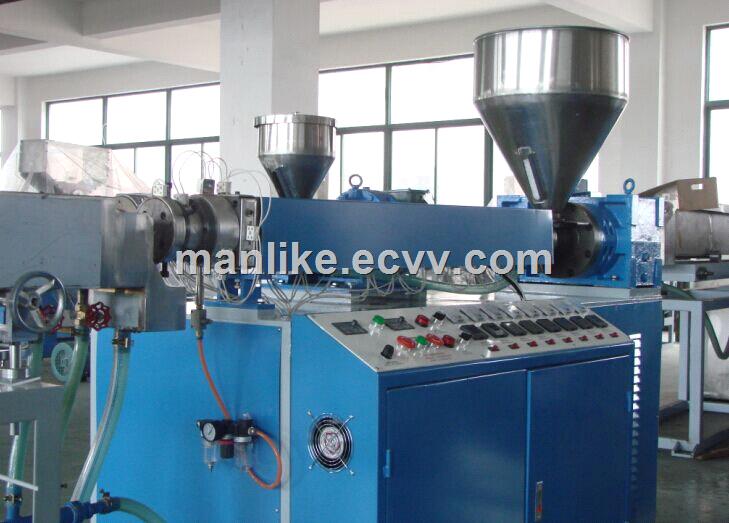

series drinking straw extrusion line is a set of drinking straw production line, using polypropylene (PP) as raw materials, with the use of masterbatch, after melting, extrusion, shaping, cooling, pulling, cutting, then produce colorless, color, two-color, three-color drink straw. With the mold, or other auxiliary equipment, JH01 series is also suitable for extruding a variety of tube similar to the drinking straw , and such of sheet in small size, can be used with wide range of applications, for example: Drinking straws, Lollipop sticks, Coffee stirring stick, ball-pen refill, Cotton swab sticks, brake pipe and some pipe use for the industry.

This production line is composed of extruder, die, cooling device, traction and cutting device, electric control part, and so on.

With more than ten years constantly updated through our practice experience and development, JH01 series drinking straw extrusion line is the advanced drinking straw production line in the world now.

Characteristics

    1) simple structure, high automation, easy and stable operation, and high efficiency

    2) The screw and barrel of extruder are made of 38CrMoLu high-quality alloy and have had a nitrogen treatment for a long service life

    3) For the reasons of drinking straws safty and having a nice appearance, Water tank, hopper, etc. are made of 1Cr18Ni9Ti stainless steel

    4) Using inverter from Delta products a well-known brand, using contactor from Delixi, having smart temperature control units

    5) with output counting function, that can catch batch products alarm



 Accessories for Drinking Straw Extrusion Line (Optional)

    1) Vacuum forming device

    2) Manual filter

    3) Automatic drinking straw gathering machine

Applications

 Food industry: Drinking Straw, Coffee stirring stick, Lollipop sticks, candy floss sticks, ice cream bars, etc.

Industrial applications: cartridge, pen, spray straw, cotton swab stick, medical tubes, toys tube, threading pipe, tube, brake tubes and other small profile

Irrigation System: Micro-drip irrigation pipe, etc.



Main composed

Part 1: Screw sending machine

Main screw size	50mm
Length/Diameter	28:1(1Set)
Motor power	7.5kw (by inverter control)
Heat power	14kw
Machine size(L*W*H)	2.10*1.30*1.5m
Weight	600kg

The main extruder's screw designed to suit plastic material specified. Tube die head with die pin/bush assembly manufactured in tool steel. They are controlled by inverter.

 Part 2: Cool water tank

Water tank length	3.5m
Size(L*W*H)	3.6*0.7*1.2m
Weihgt	200kg



Water bath in stainless steel with full adjustment in three planes for accurate alignment With extrusion die. Fitted with venturi vacuum sizing unit with stainless steel vaccum chamber, reservoir tank and lid, circulating pump, and all necessary pipe work and controls.

Part 3: Taking up and cutting machine

Motor power:	2*0.75kw( by inverter control)
Machine size(L*W*H)	1.5*0.7*1.5m
Weight	300kg

Pulling device





Cutting device





Materials	PP/PE
Diameter (mm)	1-14
Length (mm)	3 - 1,000 (customizable)
Production capacity	max. >35kg/h
Line speed	max. >250m/min
Product packing way	wood box
Delivery time	20 days
