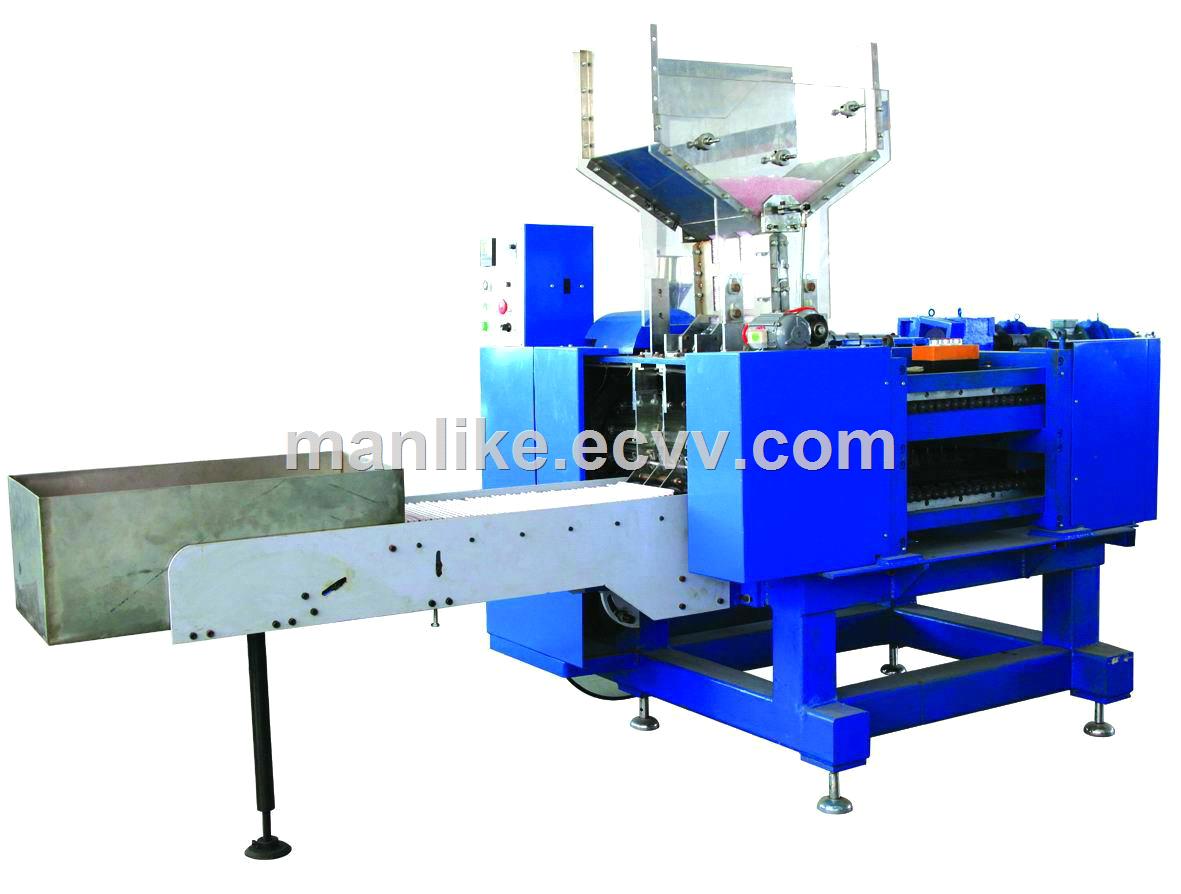

Model JH02 serious flexible straw auto making machine is JH01 series supplementary equipment,it carries on certain specification's drink ascending straw second working,becomes the flexible straw. JH02-L flexible drinking straw bending machine provides high levels of performance for the production of flexible straws. The entire operation, from product in-feed, forming to product out-feed, is automatically performed requiring the operator to add the material into the hopper loader only. The straight straws supplied in the hopper at the top of machine, are fed one by one into the main drum of the machine and clamped by two mechanical catches.
As the main drum rotates, the straw passes through two rotary dies to receive die-pressed effect, is then compressed with two catches to from flexible, and is delivered to the ontput conveyor automatically. The main drum always carries 12 straws in successive and different operations. This development represents a giant step forword for higher production of flexible straws



1.CONSTITUTES

This machine mainly by the shaper,the control box ,the hopper,leaves the material transportation to be composed.



2.CHARACTERISTIC

The struture is compact,the automaticity is high,simplicity of operator.

Revolves steadily,limitless adjustable,the production efficiency is high.

Has the output tally function,can the batch warning.

The frequency conversion control,has the barking function.

Has the breakdown automatic stop function.





Main Technical Parameter:

Type	JH02-L4	JH02-L5/6	JH02-H4 (High speed)	JH02-H5/6 (High speed)
ProductSpeed(pcs/min)	Max.﹥220	Max.﹥250	Max.﹥600	Max.﹥800
Straw Diameter(mm)	3.8	4.5-6.0	3.8	4.5-6.0
Straw Length(mm)	125-215	190-280	Fixed value	Fixed value
StrawWall Thickness(mm)	0.15-0.20	0.10-0.18	0.15-0.22	0.15-0.22
Shot-past Length(mm)	35-48	35-48	Fixed value	Fixed value
Ring No	10(10-12)	11(10-13)	11(11-25)	12(11-25)
Appearance size(mm)	(L*W*H)1700*1350*1600		(L*W*H)2200*1500*1700
Weight(kg)	1000		1400
