| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Certification: | ISO CE |
| Weight: | 5~50ton |
| Dimension(L*W*H): | Depends |
| Output: | Hot Water |
| Model Number: | CDZL |
| Brand Name: | Zhongding boiler |
| Place of Origin: | China (Mainland) |
| Fuel: | Coal-fired |
| Style: | Horizontal |
| Pressure: | Low Pressure |
| Structure: | Fire Tube |
| Usage: | Industrial |
| Type: | Natural Circulation |
| Condition: | New |
| Capacity: | 0.5-20t/h |
| Rated working pressure: | 0.3-1.25 Mpa |
| supply water temperature: | 95 degree |
| return water temperature: | 70 degree |
| Thermal efficiency: | 91-93 |
| water capacity: | 1100-20900 L |
Quick Details
Specifications
Product Description

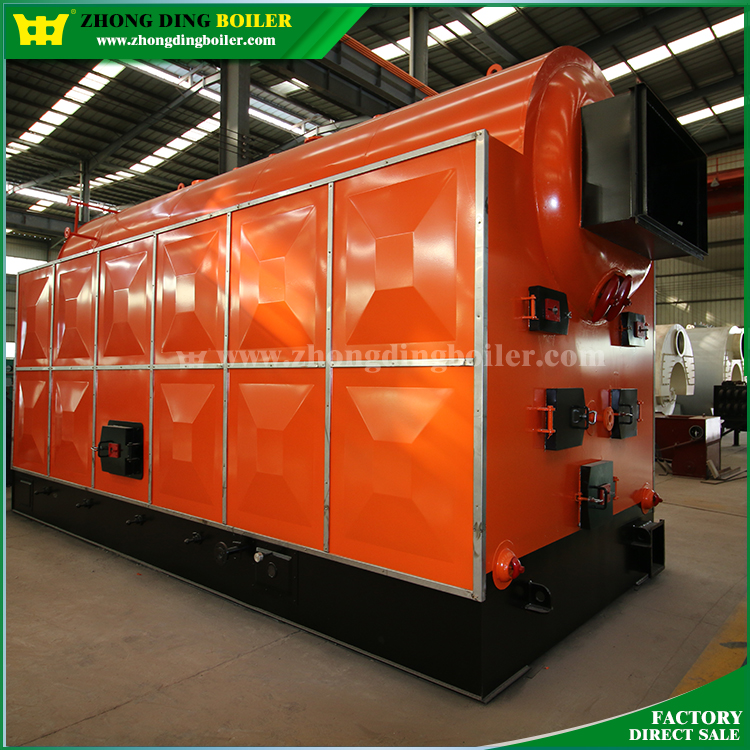

New type DZL(H) hot water boiler is the single drum longitudinal type water and fire tube shell water boiler,the burning equipment is the moving grate.The furnace wall take heat resistance as the whole trumpet bell and ramming to be the new process,the boiler host outside is the solid figure guard board shell.
This boiler adopt chain grate,suitable for molding pellet fuel,can add a small amount of wood,wood block,also can burn with coal.
This boiler adopt the newest achievements in scientific research, such as:Arched Tube plate, thread smoke tube etc, solve the tube plate crack of shell type boiler, Water wall tube burst, low efficiency, insufficient of power,Poor pf coal type adaptability etc.
Combustion Process:
The fuel burning at the furnace through, the exhaust gas flow from the boiler barrel bottom to the smoke window outlet on the Eight character wall, then enter convection bank at the both wings, next enter the thread smoke tube through the front smoke box, pass by economizer, dust remover, and induced draft fan, finally discharged to the atmosphere by chimney.
Feeding System Introduction:
1.Conveyor feeding mode (For biomass particles)
2.Elevating automatic feeding (For coal)
3.Blast feeding (For size of less than 50mm of small sawdust, or rice husk)
4.Screw feeder
Company Information:
Our Services
Warranty and after-sale service
Top quality of every set of machine and best after-sales service as followings :
(A) The boiler body guarantee is two years , for accessories three years.
(B) During the guarantee period , if the main body defective or broken without wrong operating , we must replace the parts for free or prepare the spare-parts for free.
(C)Zhongding should provide boiler technical service and operation guidance for whole life long.
(D) Regarding to the installation and training , the buyer should take all the correlative charges (accommodation and food , round -trip tickets).
