Product Main

Quick Details

Brand Name: Rising Stem Valve
Temperature of Media: High Temperature
Material: Casting
Pressure: High Pressure
Standard or Nonstandard: Standard
Place of Origin: China (Mainland)

Specifications

DIN 3352 F4 MEATL SEATED NON RISING STEM GATE VALVE (LIGHT TYPE)
AVAILABLE MEDIUM: WATER; PETROLEUM PRODUCTS
WORKING TEMPERATURE: 120℃
FACE to FACE: DIN 3202 F4
FLANGE DIMENSIONS: DIN2501
WORKING PRESSURE: PN10

MATERIALS:
BODY & BONNET: CAST IRON
SEAT: CAST BRASS
WEDGE DISC: CAST IRON + BRASS
STEM: STAINLESS STEEL
STEM NUT: CAST BRASS
GASKET: RUBBER

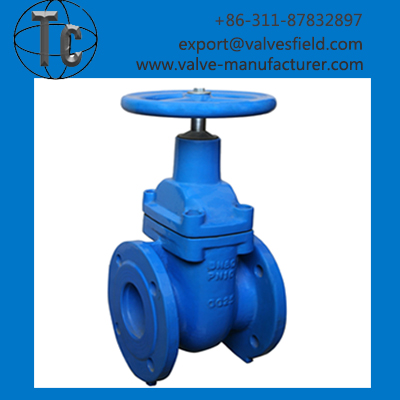

 DIN 3352 F4 Metal Seated Non Rising Stem Gate Valve Light Type

  DIMENSIONS:

DN L D D1 D2 b Z-∮d f H
40 140 150 110 88 18 4-18 3 235
50 150 165 125 102 20 4-18 3 256
65 170 185 145 122 20 4-18 3 287
80 180 200 160 138 22 4-18 3 338
100 190 220 180 158 22 8-18 3 350
125 200 250 210 188 24 8-18 3 375
150 210 285 240 212 24 8-23 3 436
200 230 340 295 268 26 8-23 3 530
250 250 395 350 320 28 12-23 3 640
300 270 445 400 370 28 12-23 4 690
