| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Certification: | iso ce sgs |
| Weight: | 13-50Ton |
| Dimension(L*W*H): | 5.2*2.0*2.9-8.0*3.3*3.6m |
| Output: | Steam |
| Model Number: | szl |
| Brand Name: | zhongding boiler |
| Place of Origin: | China (Mainland) |
| Fuel: | Coal-fired |
| Style: | Horizontal |
| Pressure: | High Pressure |
| Structure: | Fire Tube |
| Usage: | Industrial |
| Type: | Natural Circulation |
| Condition: | New |
| Steam capacity: | 1-20Ton |
| Steam pressure: | 0.7-2.5Mpa |
| Steam temperature: | 170-225 Degree |
| Feed Water temperature: | 20 Degree |
| Fuel consumption: | 135-1350kh/h |
| Thermal efficiency: | 90% |
| Color: | Customer's Requirement |
| Warranty: | 2 Years |
Quick Details
Specifications
Product Description

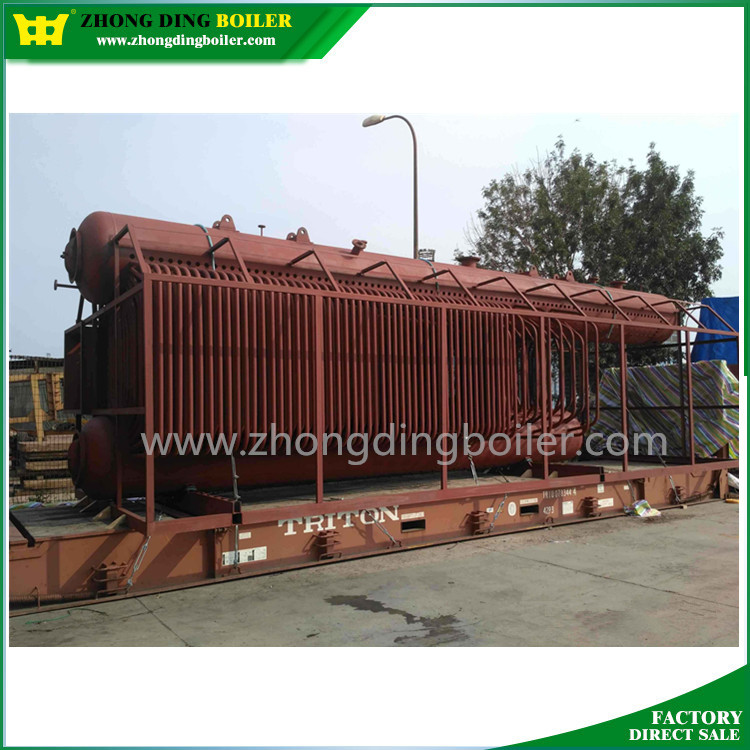

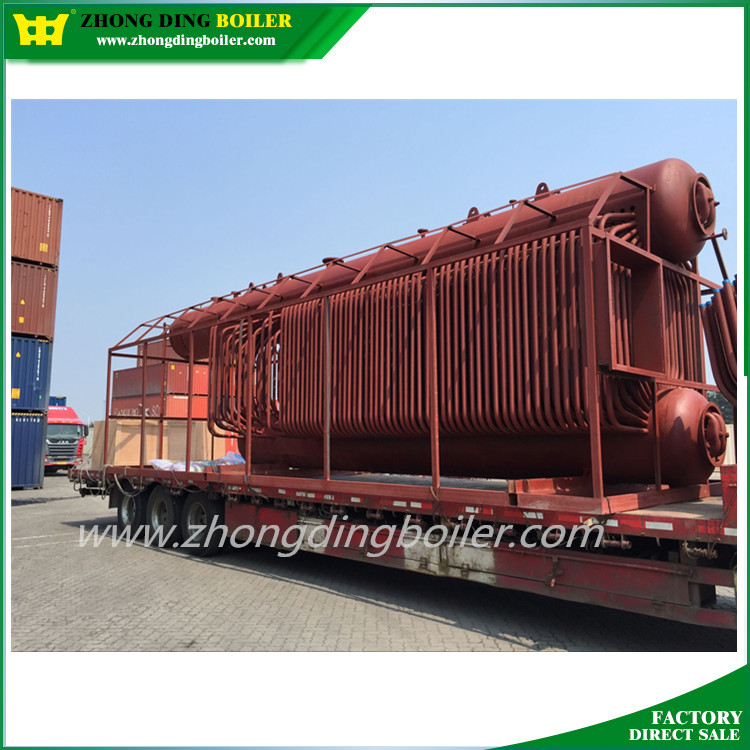

SZL series steam generator is the double drum longitudinal type chain grate steam generator. It is designed by our engineer steam with the most advanced technologies domestic and aboard. It can not only generate steam but also can heat water as the media. Compared with the single drum (DZL) series steam generator, the double drum has the powerful heating capacity, high thermal efficiency and safety.
Combustion Process:
The fuel burning at the furnace through, the exhaust gas flow from the boiler barrel bottom to the smoke window outlet on the Eight character wall, then enter convection bank at the both wings, next enter the thread smoke tube through the front smoke box, pass by economizer, dust remover, and induced draft fan, finally discharged to the atmosphere by chimney.
Feeding System Introduction:
1.Conveyor feeding mode (For biomass particles)
2.Elevating automatic feeding (For coal)
3.Blast feeding (For size of less than 50mm of small sawdust, or rice husk)
4.Screw feeder
Advantages:
1.No need special protection when power off.
2.Higher efficiency,heating fast.
3.Safe and reliable.
4.Easy to install.
Boilers Application
Medicine, chemical, light industry, textile, building material, cultivation, food and beverage, plastic foam, printing, dyeing and washing, rubber processing, paper products,wood processing, hotel, clothing and leather manufacturer etc.
Why Choose us?
1.Chinese Famous Brand
2.Super High Quality, Competitive Price
3.Big Production Ability
4.Fast Delivery, Excellent After-sale Service
5.Certificate ISO9001, ASME, ISO14001, SGS, CE, BV
Company Information
ZhongDing boiler co., LTD Is the national boiler manufacturing backbone enterprises, domestic boiler industry science and technology innovation-oriented enterprises, China's largest research and development of low circulating fluidized bed manufacturing base.Company has A-class boiler manufacturing license and the class-II and class-II pressure vessel manufacturing license, design level boiler installation license, the company passed the ISO9001 international quality system certification.ZhongDing boiler co., LTD was found the science and technology research and development of boiler manufacturing enterprise.
